GS108T and GS110TP Smart Switch Software Administration Manual
Configuring Switching Information 3-11
v1.0, April 2010
From the VLAN link, you can access the following pages:
• “VLAN Configuration” on page 3-11
• “VLAN Membership Configuration” on page 3-12
• “Port VLAN ID Configuration” on page 3-14
VLAN Configuration
Use the VLAN Configuration page to define VLAN groups stored in the VLAN membership
table. The GS108T and GS110TP each support up to 64 VLANs. Three VLANs are created by
default:
• VLAN 1 is the default VLAN of which all ports are members.
• VLAN 2 is for voice traffic.
• VLAN 3 is for Auto-Video traffic.
To display the VLAN Configuration page, lick Switching VLAN Basic VLAN
Configuration.

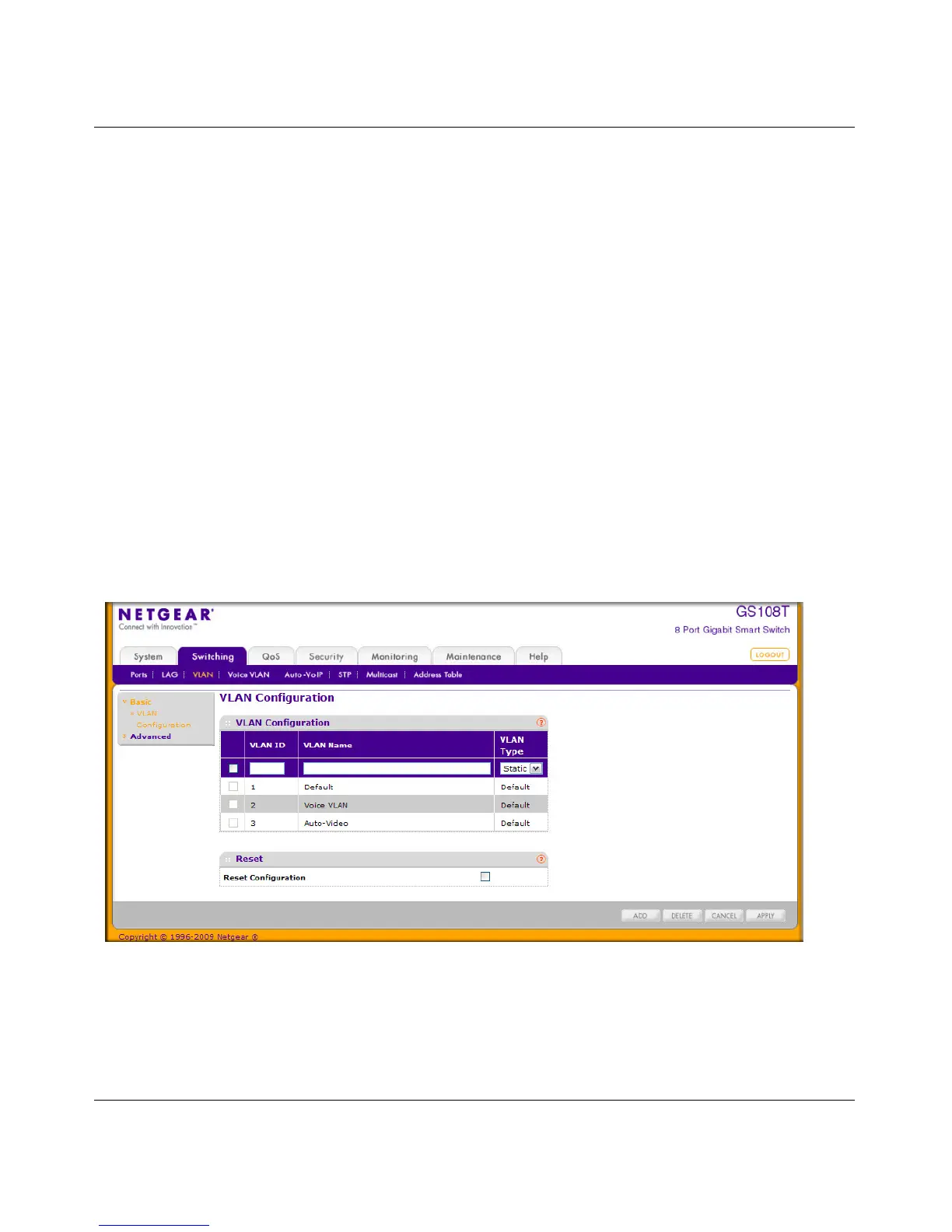

Figure 3-8
