Chapter 1. Introduction | 11
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Top Panel

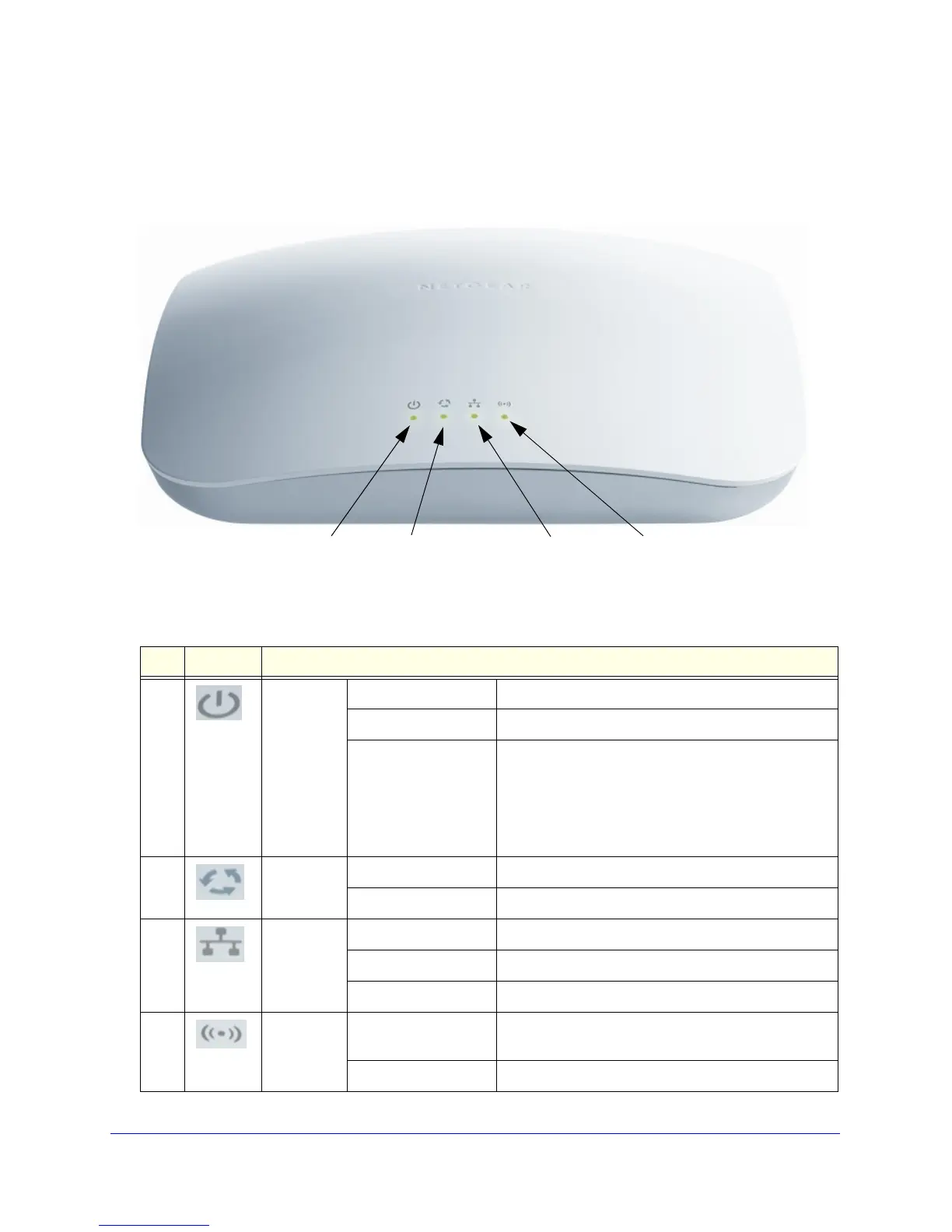

The ProSafe Wireless-N Access Point WNAP320 LEDs are described in the following figure
and table:
Figure 1.
Table 1. Top Panel LEDs
Item LED Description
1 Power/Test Off Power is off.
On (green) Power is on.
Amber, then blinking
gr
een
A self-test is running or software is being loaded.
During startup, the LED is first steady amber, then
goes off, and then blinks green before turning steady
green after about 45 seconds. If after 1 minute the
LED re
mains amber or continues to blink green, it
indicates a system fault.
2 Active Off No Ethernet traffic is detected or no lin
k is detected.
On or blinking (green) Ethernet traffic is detected.
3 LAN Off 10 Mbps or no link is detected.
Amber 10/100 Mbps link is detected.
Green 1000 Mbps link is detected.
4 WLAN Off Wireless LAN is not ready or no wireless activity is
detected.
On or blinking (green) Wireless LAN is ready or wireless activity
is detected.
