12 | Chapter 1. Introduction
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Rear Panel

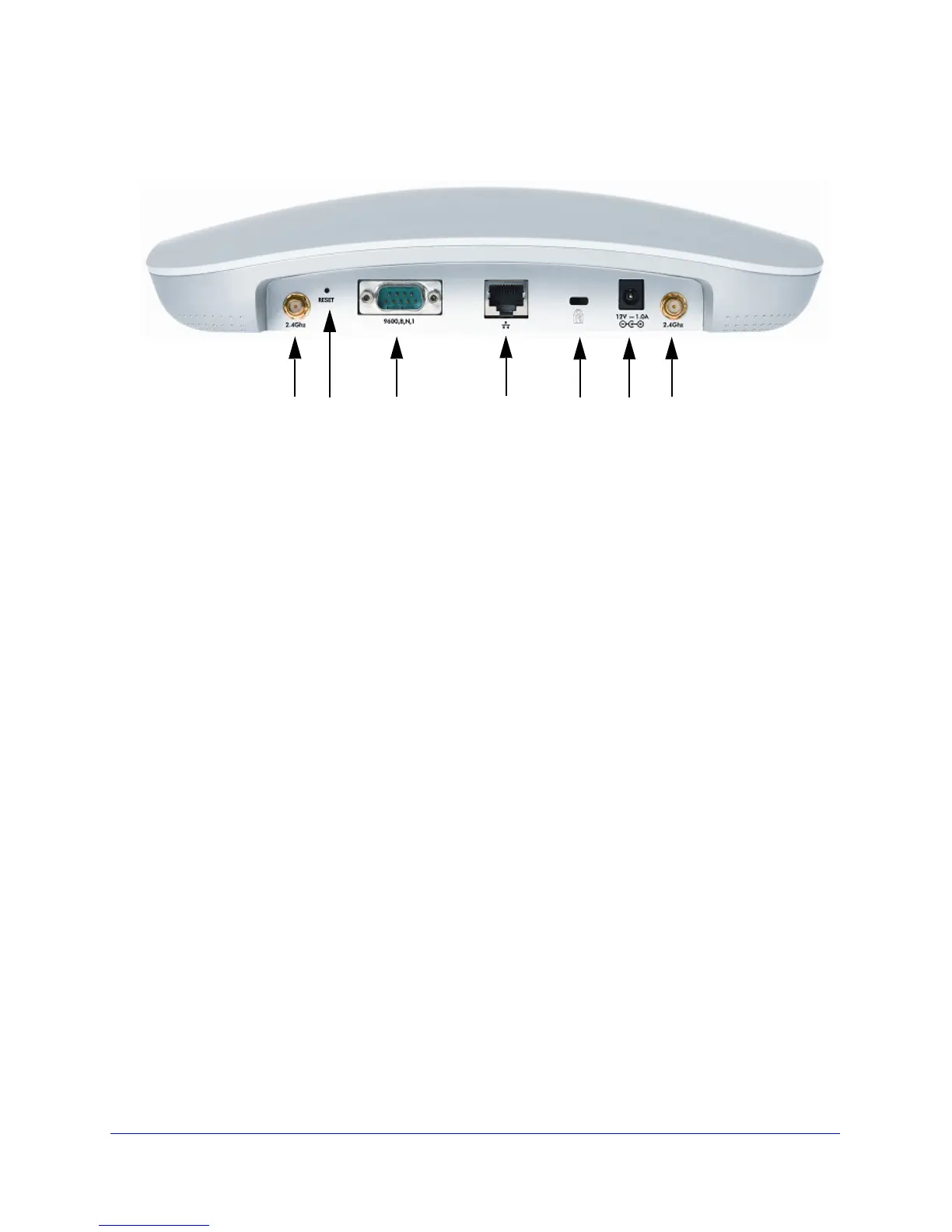

Figure 2.
The rear panel functions of the ProSafe Wireless-N Access Point WNAP320 are described in
the following list:
1. Reverse SMA
connector for an optional 2.4-GHz antenna.
2. Fa
ctory default Reset button. Using a sharp object, press and hold this button for about
5 seconds to reset the wireless access point to factory defaults settings. All configuration
sett
ings are lost, and the default password is restored. For more information, see Restore
the Wireless Access Point to the Factory Default Settings o
n page 62.
3. Console port
for connecting to an optional console terminal. The port has a DB9 male
connector and supports the following settings: 9600 K default baud rate, (8) data bits, no (N)
parity bit, and one (1) stop bit.
4. 10/
100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with
IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.
5. Cable security lock recept
acle for an optional lock.
6. Power
socket for a 12 VDC, 1A power adapter.
7. Reverse SMA
connector for an optional 2.4-GHz antenna.
