1.3 Equipment Structure
1.3.1 HX4E
The HX4E adopts a compact plastic structural design and can be placed on a desk.
It provides either two or four FXS/FXO ports.
The HX4E supports the following models:
Table 1-2 Configuration Combination of HX4E
Models
Number of FXS Ports
Number of FXO Ports
HX402E
2
0
HX420E
0
2
HX422E
2
2
HX412E
2
1
HX440E
0
4
HX404E
4
0

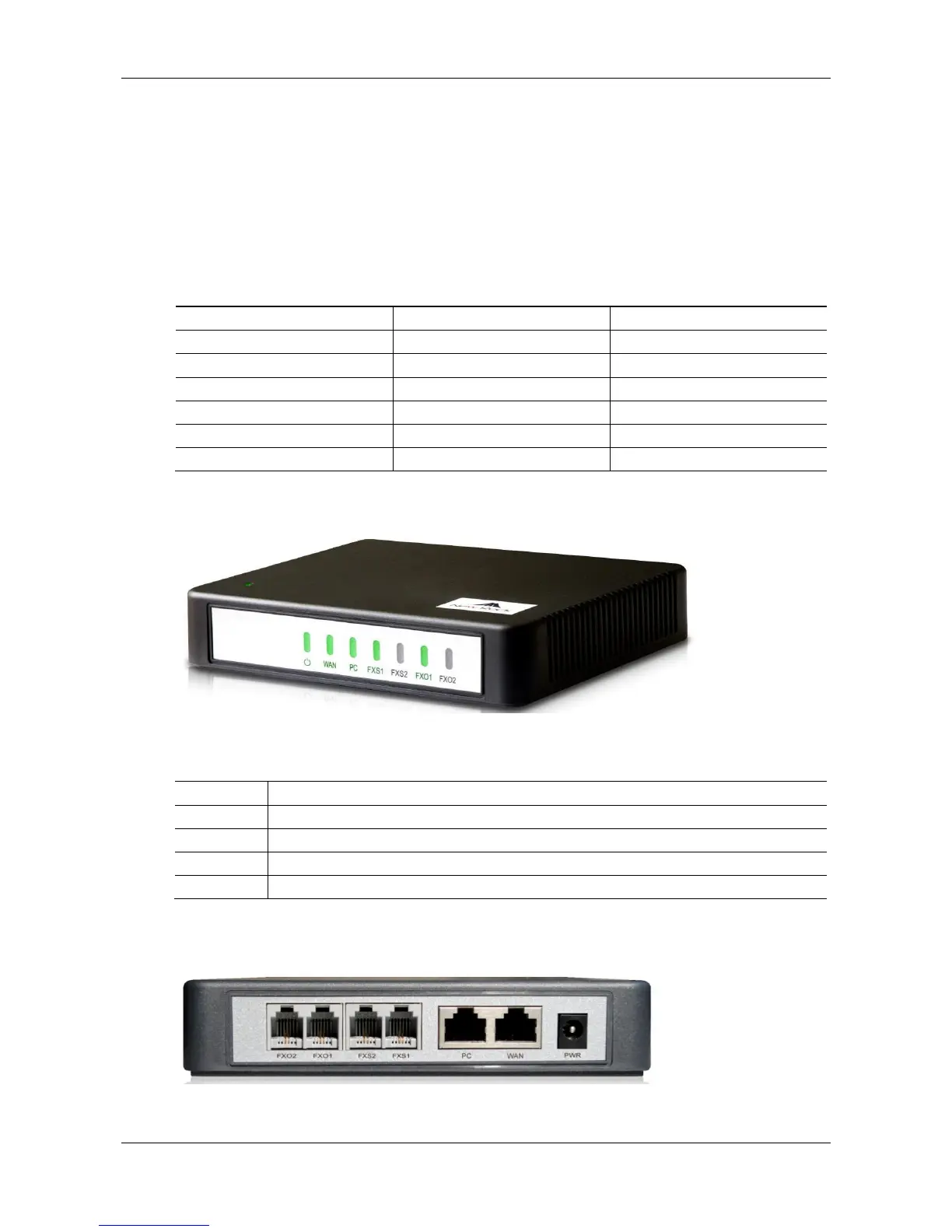

Figure 1-1 HX4E Front Panel
Table 1-3 Description of HX4E Front Panel
No.
Description
PWR
Power Indicator
WAN
Indicator of WAN interface
PC
Indicator of PC interface
FXO/FXS
Indicator of FXS port or FXO port
Figure 1-2 HX4E Back Panel
