User Manual HX4E/MX8A Series Voice Gateway
2 www.newrocktech.com

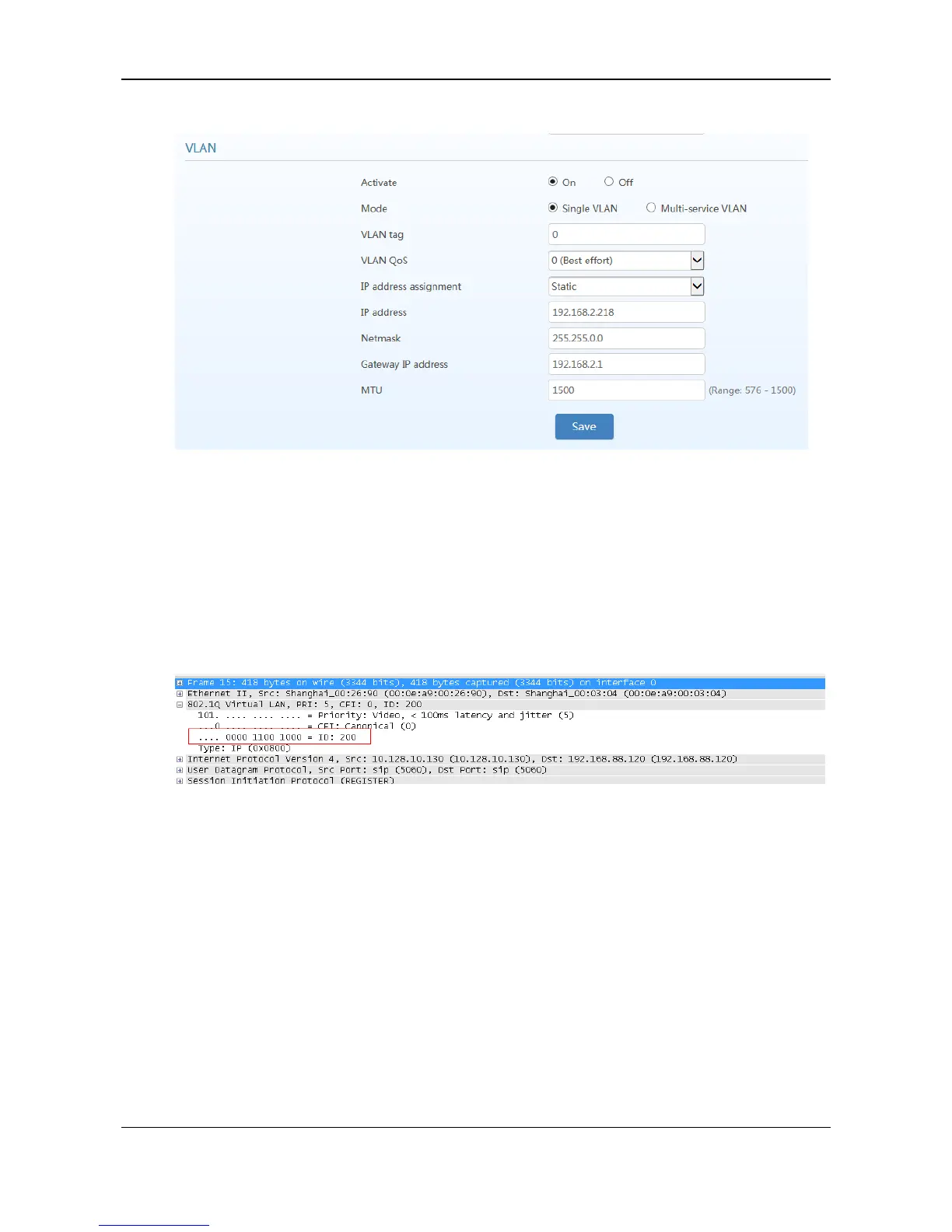

Figure 3-63 Configuring the single VLAN
Example of Single VLAN
Configure the device to work in single VLAN mode with a corresponding VLAN tag of 200, and restart
the device. Check that all data packets sent by the device carry a VLAN ID 200, as shown in Figure
3-64.
Figure 3-64 A Data Packet Carrying a Corresponding VLAN Tag in the Single VLAN Mode
3.1.2 Multi-service VLAN
In the multi-service VLAN mode, the device can configure a VLAN tag; a priority for the voice service
(SIP signaling and RTP/T.38 media stream); and a management service (HTTP, Telnet, TR069, and
SNMP). The device carries a different VLAN tag in data packets for different services. In this mode,
the physical network port of the device can have a separate address or obtain an address from a
non-VLAN network.
Configuring Voice VLAN
The device includes a VLAN tag configured in the voice VLAN in SIP, RTP and T.38 data packets.
The voice VLAN of the device has the following two modes: Mode 1 and Mode 2.
