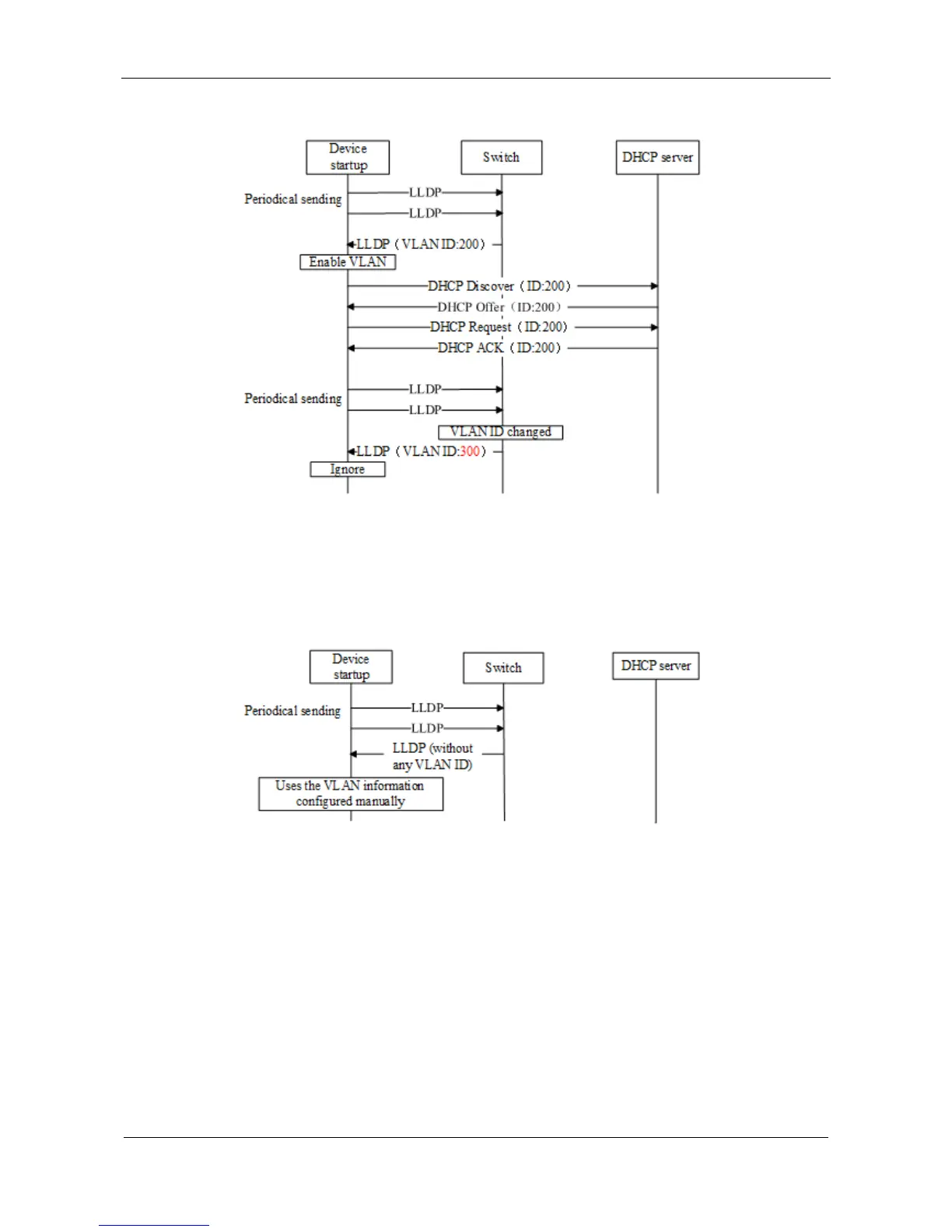

Figure 3-75 Procedure of handling LLDP message carrying a VLAN ID
 Procedure of Handling the LLDP Message with no VLAN ID
During startup period, if the device receives LLDP messages with no VLAN ID, it uses the VLAN
information configured manually. Figure 3-76 shows the handling procedure.
Figure 3-76 Procedure of handling the LLDP message with no VLAN ID
3.2.2 Messages
 LLDP Message
Upon receipt of an LLDP message, the device will check if the VLAN ID, Priority, and DSCP fields are
included.
Figure 3-77 shows the LLDP message.
