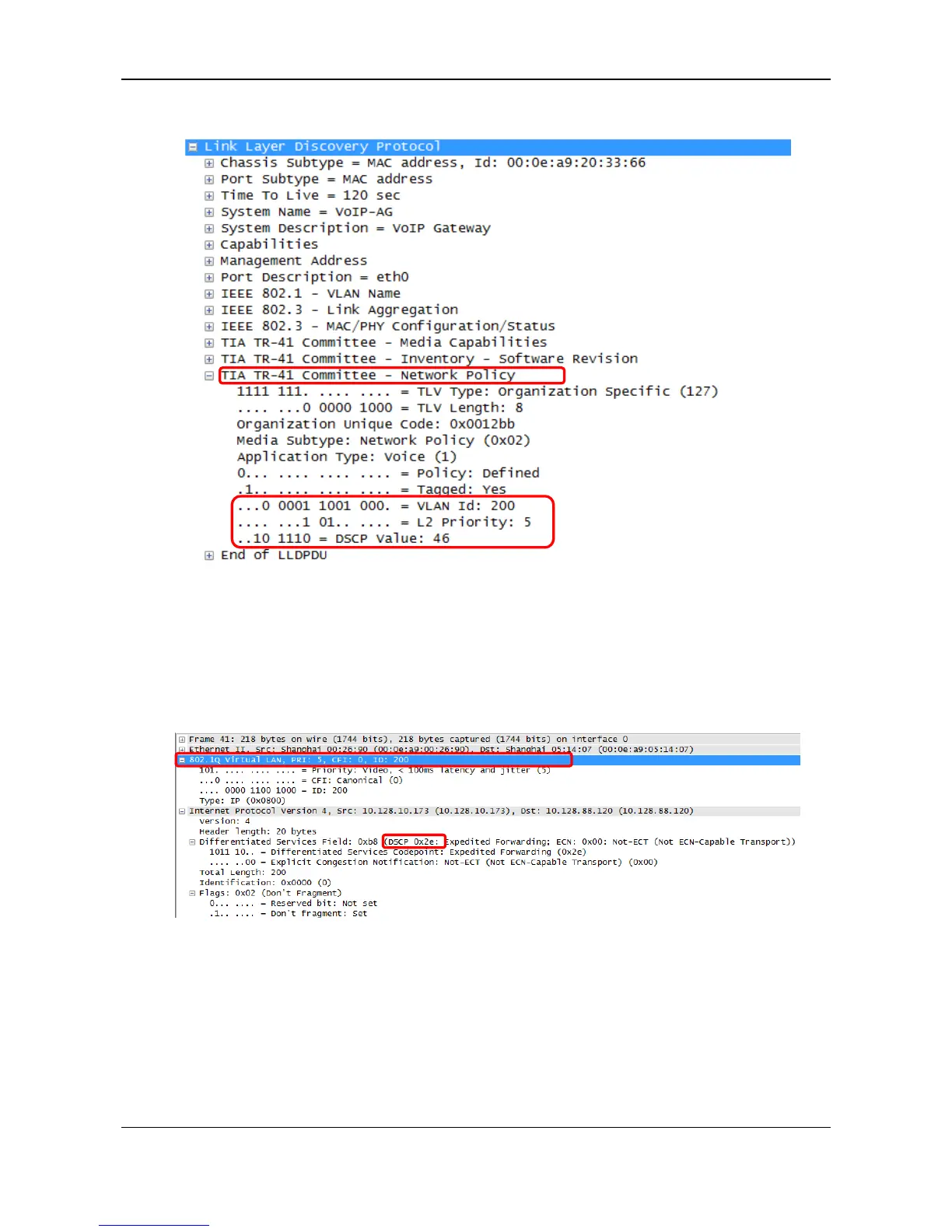

Figure 3-77 LLDP Message
Sent Message with a VLAN ID
After obtaining a VLAN ID from the LLDP message, the device adds the VLAN information to the
Ethernet frame headers of all messages to be sent. In addition, the device adds a DSCP value to the RTP
message. Figure 3-78 shows the sent message with a VLAN ID.
Figure 3-78 Adding a VLAN ID to the message to be sent
