HX4E/MX8A Series Voice Gateway User Manual
New Rock Technologies, Inc. 81
2.10.6 Ethereal Capture
After login, click Tools > Ethereal capture to open this interface. You are allowed to capture up to three
IP voice data files, each with up to 2M bytes. The data files are stored on the gateway in dump.cap format
under catalog /var/log.

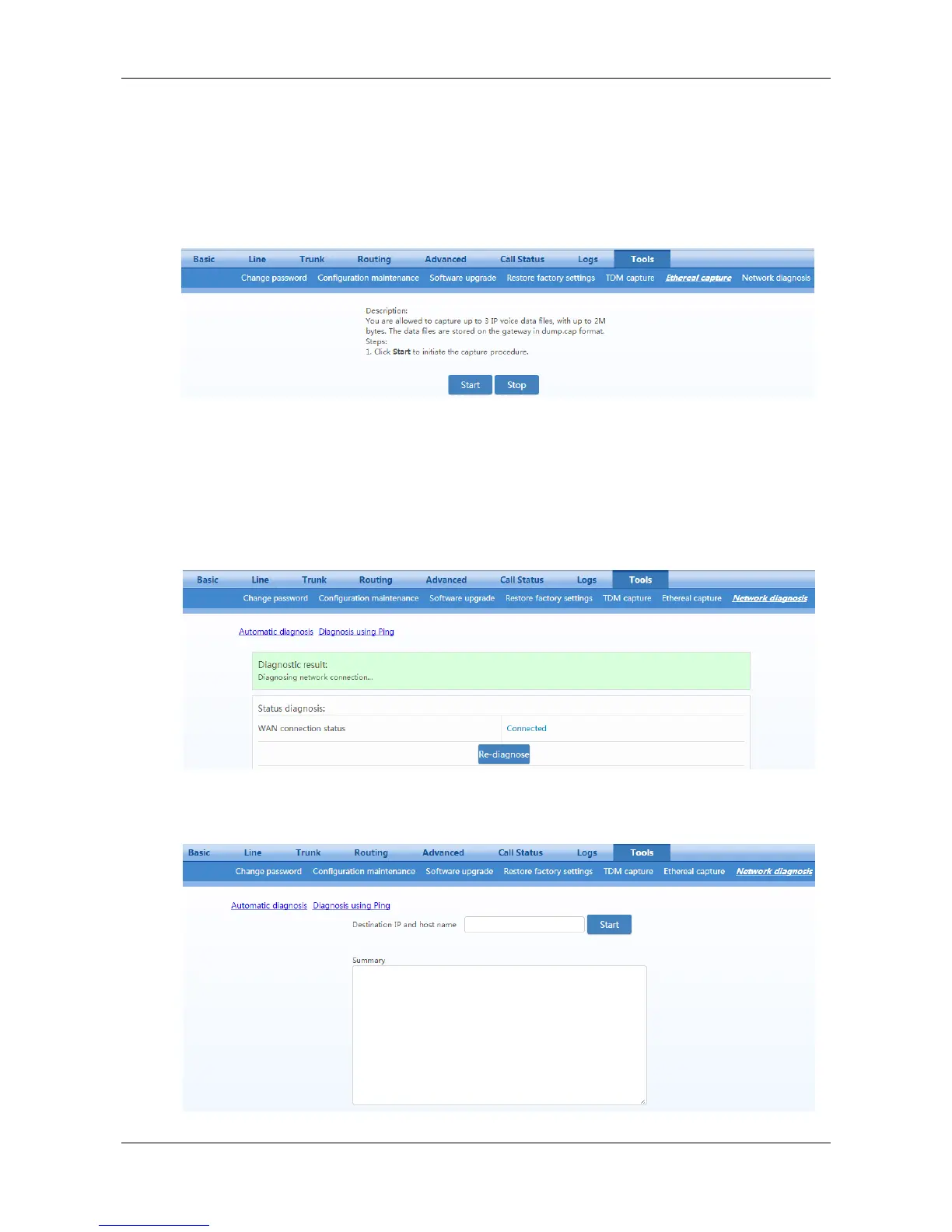

Figure 2-60 Ethereal Capture Interface
2.10.7 Network Diagnosis
After login, click Tools > Network diagnosis to open this interface.
If the Internet is unavailable, you can use this tool to diagnose whether the network is connected.
Figure 2-61 Automatic Diagnosis Interface
Figure 2-62 Ping Diagnosis Interface
