HX4E/MX8A Series Voice Gateway User Manual
New Rock Technologies, Inc. 21

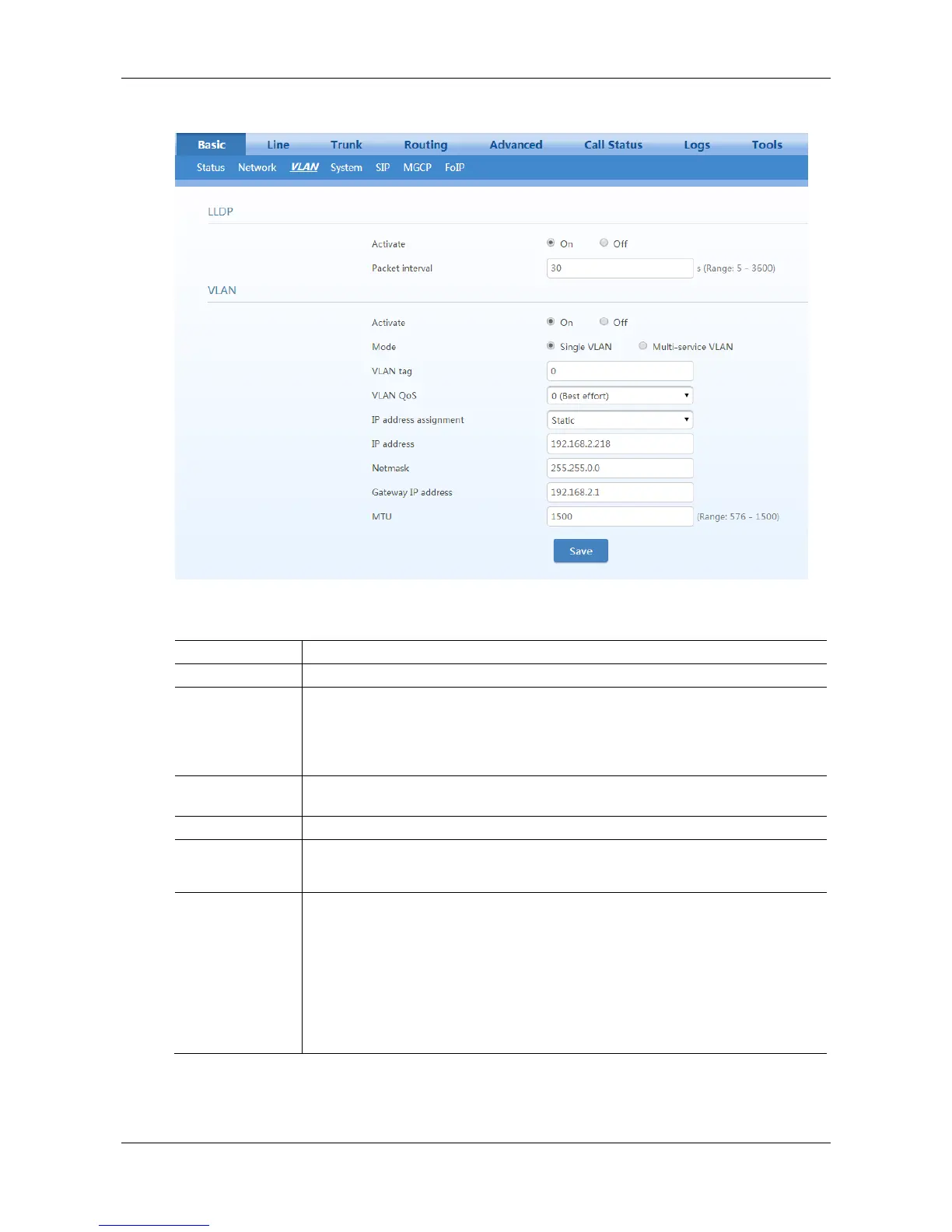

Figure 2-10 VLAN Configuration Interface
Table 2-4 VLAN Configuration Parameters
Name
Description
LLDP
Activate
 On: Indicates that the LLDP is enabled. Then the device periodically sends LLDP
messages, and parses received LLDP messages.
 Off (default value): Indicates that the LLDP is disabled. The device does not send
any LLDP messages, nor parses any received LLDP messages.
Packet interval
This parameter specifies the interval at which LLDP messages are sent after the LLDP
is enabled. The value range is 5 to 3600 seconds. The default value is 30 seconds.
VLAN
Activate
 On: enable VLAN
 Off: disable VLAN
Mode
Select the VLAN mode:
 Single VLAN: All services of the device are on the same VLAN, and the device
receives only data packets carrying the VLAN and includes the VLAN tag in all
sent data packets.
 Multi-service VLAN: The device can configure different VLAN information for
the voice service (SIP signaling and RTP/T.38 media stream) and the management
service (HTTP, Telnet, TR069, and SNMP) and includes a different VLAN tag in a
data packet of a different service.
