HX4E/MX8A Series Voice Gateway User Manual
New Rock Technologies, Inc. 79

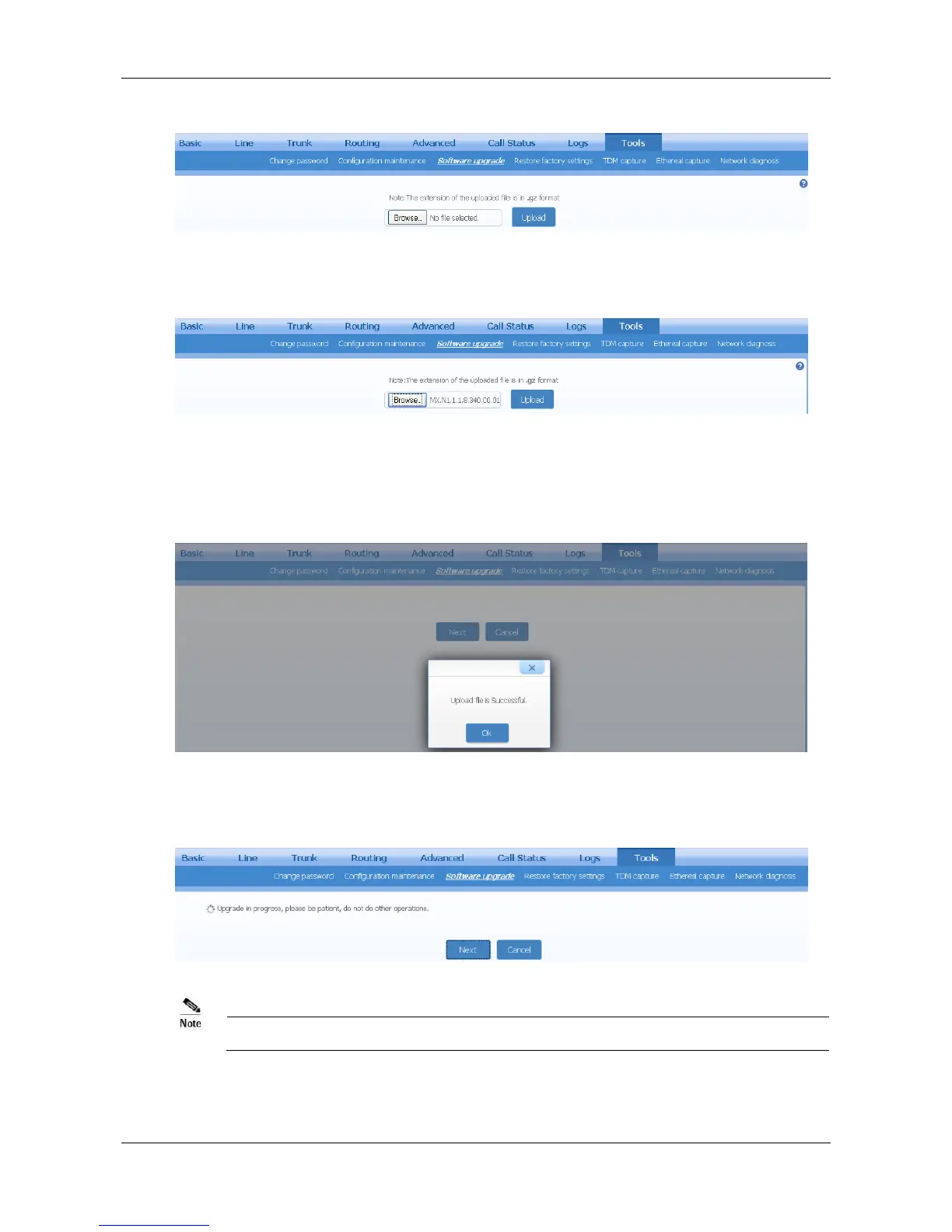

Figure 2-53 Upgrade Interface
Step 3 Click
Browse
to select the upgrade files.
Figure 2-54 File Upload Interface
Step 4 Click
Upload
.
Step 5 Uploading will be completed in about 30 seconds, then click
Next
.
Figure 2-55 Upgrade Interface
Step 6 The following prompt appears during the upgrade.
Figure 2-56 Upgrade Process Screen
A few minutes are needed to upgrade the gateway. Don’t operate the gateway during this period.
Step 7 The device automatically restarts after upgrade is successful.
