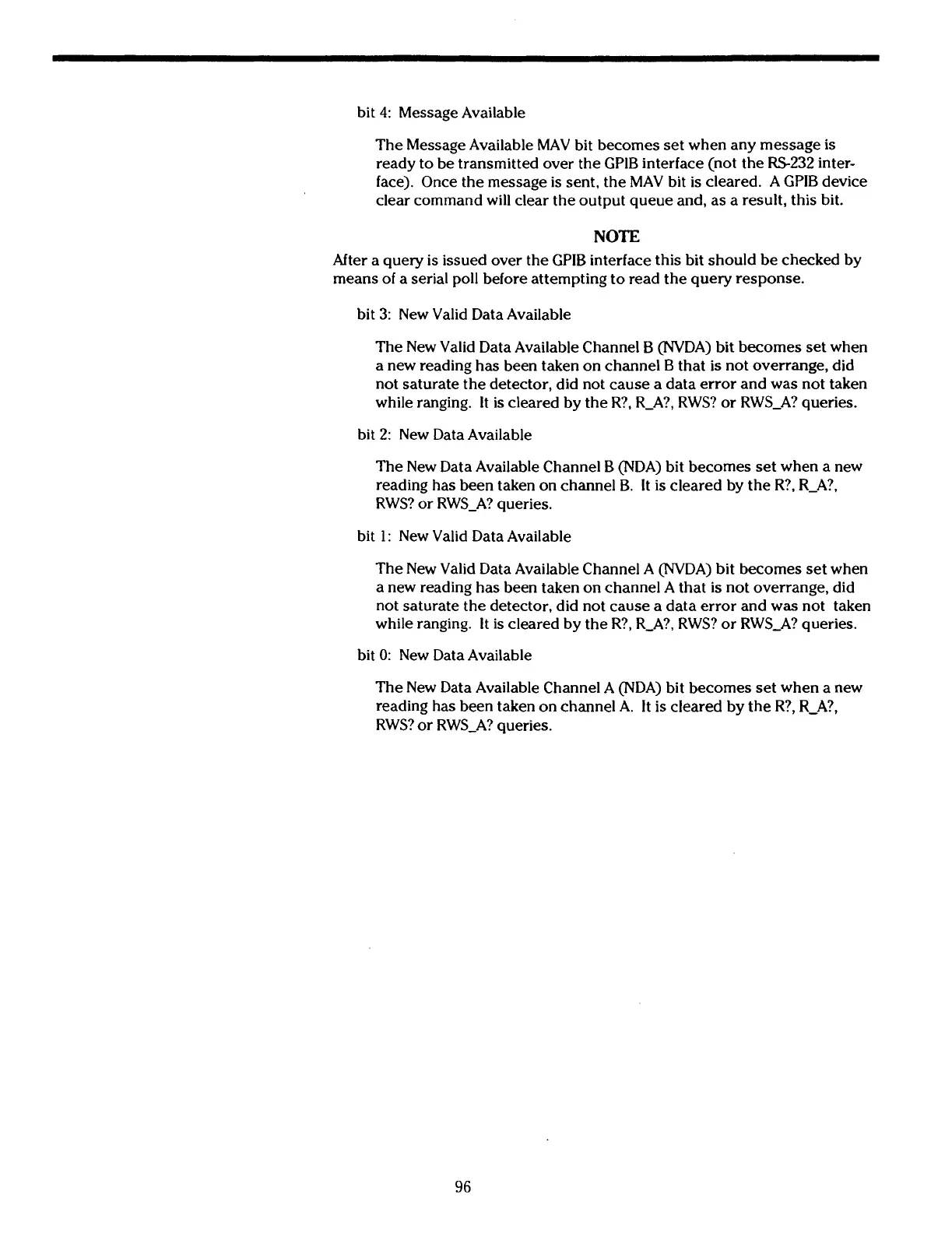

bit
4:
Message Available
The Message Available MAV bit becomes set when any message is
ready to be transmitted over the GPlB interface (not the
-232
inter-
face). Once the message
is
sent, the MAV bit is cleared. A GPlB device
clear command will clear the output queue and, as a result, this bit.
NOTE
After a query
is
issued over the GPlB interface this bit should be checked by
means of a serial poll before attempting to read the query response.
bit
3:
New Valid Data Available
The New Valid Data Available Channel B (NVDA) bit becomes set when
a new reading has been taken on channel B that
is
not overrange, did
not saturate the detector, did not cause a data error and was not taken
while ranging. It
is
cleared by the R?, R-A?, RWS? or RWS-A? queries.
bit
2:
New Data Available
The New Data Available Channel B (NDA) bit becomes set when a new
reading has been taken on channel B. It is cleared by the R?, R-A?,
RWS? or RWS-A? queries.
bit
1
:
New Valid Data Available
The New Valid Data Available Channel A (NVDA) bit becomes set when
a new reading has been taken on channel A that
is
not overrange, did
not saturate the detector, did not cause a data error and was not taken
while ranging. It
is
cleared by the R?, R-A?, RWS? or RWS-A? queries.
bit
0:
New Data Available
The New Data Available Channel A (NDA) bit becomes set when a new
reading has been taken on channel A. It
is
cleared by the R?,
R-A?,
RWS? or RWS-A? queries.
