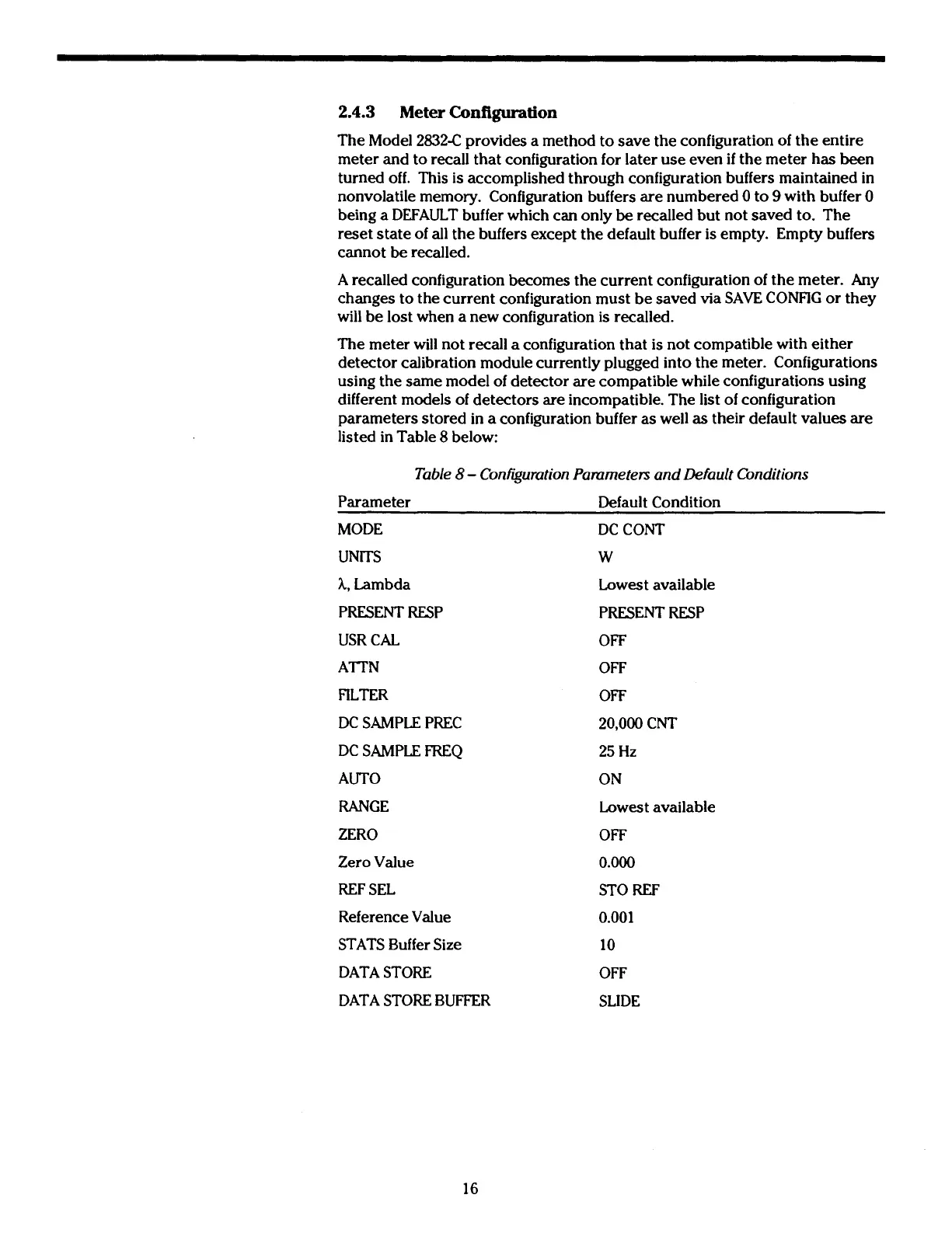

2.4.3
Meter
Configuration
The Model
28324
provides a method to save the configuration
of
the entire
meter and to recall that configuration for later use even
if
the meter has been
turned off. This
is
accomplished through configuration buffers maintained in
nonvolatile memory. Configuration buffers are numbered
0
to
9
with buffer
0
being a DEFAULT buffer which can only
be
recalled but not saved to. The
reset state of all the buffers except the default buffer
is
empty. Empty buffers
cannot be recalled.
A recalled configuration becomes the current configuration of the meter. Any
changes to the current configuration must be saved via SAVE CONFIG or they
will be lost when a new configuration
is
recalled.
The meter will not recall a configuration that
is
not compatible with either
detector calibration module currently plugged into the meter. Configurations
using the same model of detector are compatible while configurations using
different models of detectors are incompatible. The list of configuration
parameters stored in a configuration buffer as well
as
their default values are
listed in Table
8
below:
Table
8
-
Configuration Pammeters and Default Conditions
Parameter Default Condition
-
MODE
DC CONT
h,
Lambda Lowest available
PRESENT RESP PRESENT RESP
USR
CAL OFF
A7TN OFF
FILTER
DC SAMPLE PREC
OFF
20,000
CNT
DC SAMPLE
FREQ
25
Hz
AUTO ON
RANGE
ZERO
Lowest available
OFF
Zero Value
0.000
REF SEL ST0
REF
Reference Value
0.001
STATS Buffer Size
DATA STORE
10
OFF
DATA STORE BUFFER SLIDE
