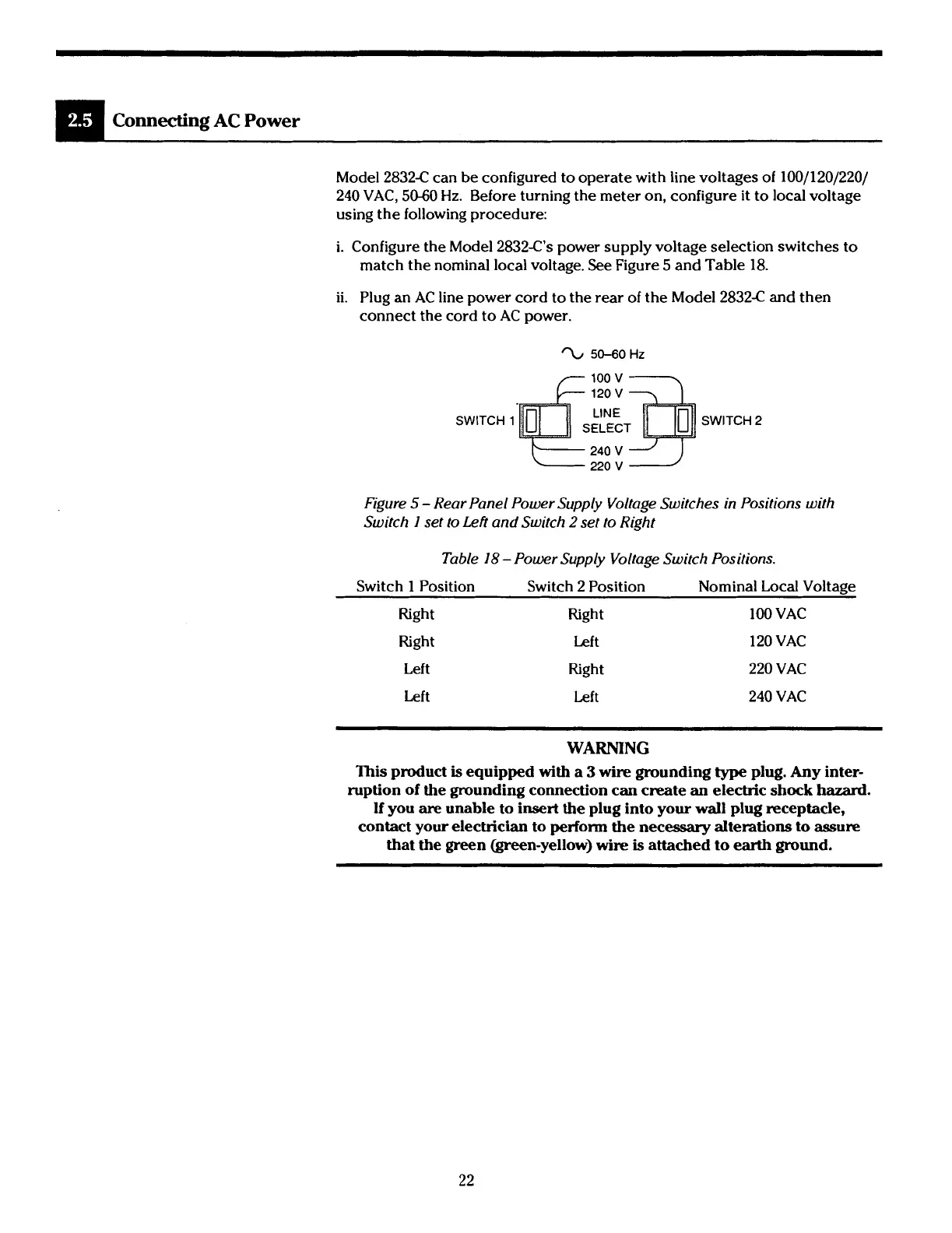

Connecting
AC
Power
Model 28324 can be configured to operate with line voltages
of
100/120/220/
240 VAC, 50-60
Hz.
Before turning the meter on, configure it to local voltage
using the following procedure:
i.
Configure the Model 28324's power supply voltage selection switches to
match the nominal local voltage. See Figure 5 and Table 18.
ii.
Plug an AC line power cord to the rear
of
the Model 28324
and
then
connect the cord to AC power.
SWITCH
1-rn
SWITCH
2
Figure
5
-
Rear Panel Power Supply Voltage Switches in Positions with
Switch
I
set to Left and Switch
2
set to Right
Table
18
-
Power Supply Voltage Switch Positions.
Switch 1 Position Switch 2 Position Nominal Local Voltage
Right Right
100 VAC
Right Left
120 VAC
Left Right 220 VAC
Left Left 240 VAC
WARNING
This product
is
equipped with
a
3
wire
grounding
type
plug. Any inter-
ruption of the grounding connection can create an electric shock
hazard.
If you
are
unable to insert the plug into your wall plug receptacle,
contact your electrician to perform the necessary alterations to assure
that the green meen-yellow)
wire
is
attached to
earth
ground.
