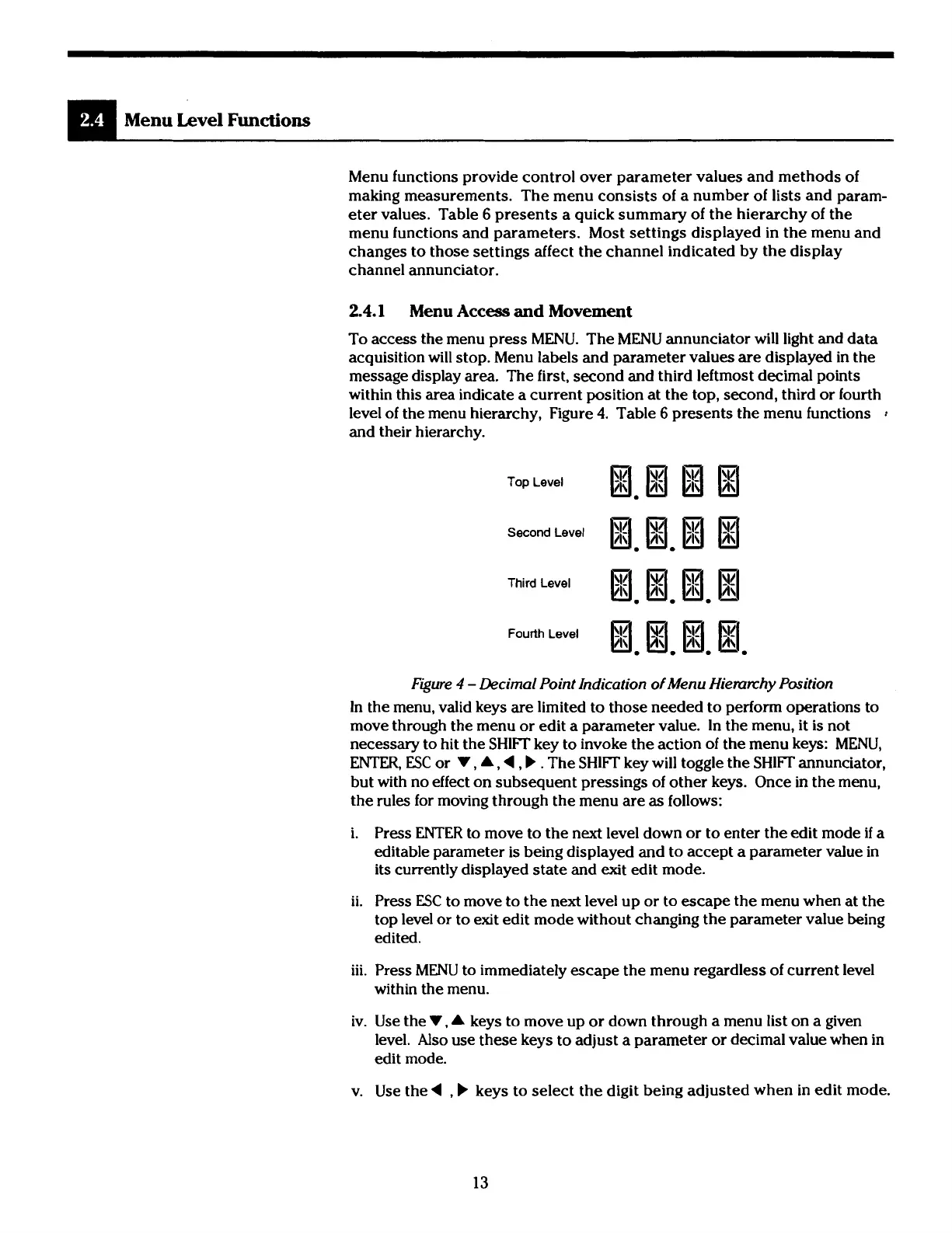

Menu
Level
Functions
Menu functions provide control over parameter values and methods
of
making measurements. The menu consists
of
a number
of
lists and param-
eter values. Table
6
presents a quick summary
of
the hierarchy
of
the
menu functions and parameters. Most settings displayed in the menu and
changes to those settings affect the channel indicated by the display
channel annunciator.
2.4.1
Menu
Access
and
Movement
To access the menu press MENU. The MENU annunciator will light and data
acquisition will stop. Menu labels and parameter values are displayed in the
message display area. The first, second and third
leftmost decimal points
within this
area
indicate a current position at the top, second, third or fourth
level of the menu hierarchy, Figure
4.
Table
6
presents the menu functions
and their hierarchy.
Top Level
Second Level
0
0
0
. .
Third Level
1.1. 1.
Fourth Level
1.
1.
9.
Figure
4
-
Decimal Point Indication
of
Menu Hiemrchy Position
In the menu, valid keys
are
limited to those needed to perform operations to
move through the menu or edit a parameter value. In the menu, it is not
necessary to hit the SHIn key to invoke the action
of
the menu keys: MENU,
ENTER,
ESC
or
V
,
A,
4
,
b
.
The SHIn key will toggle the SHIn annunciator,
but with no effect on subsequent pressings of other keys. Once in the menu,
the rules for moving through the menu are
as
follows:
i. Press ENTER to move to the next level down or to enter the edit mode if a
editable parameter is being displayed and to accept a parameter value in
its currently displayed state and exit edit mode.
ii. Press
ESC
to move to the next level up or to escape the menu when at the
top level or to exit edit mode without changing the parameter value being
edited.
iii. Press MENU to immediately escape the menu regardless
of
current level
within the menu.
iv. Use the
V,
A
keys to move up or down through a menu list on a given
level. Also use these keys to adjust a parameter or decimal value when in
edit mode.
v. Use the
4
,
b
keys to select the digit being adjusted when in edit mode.
