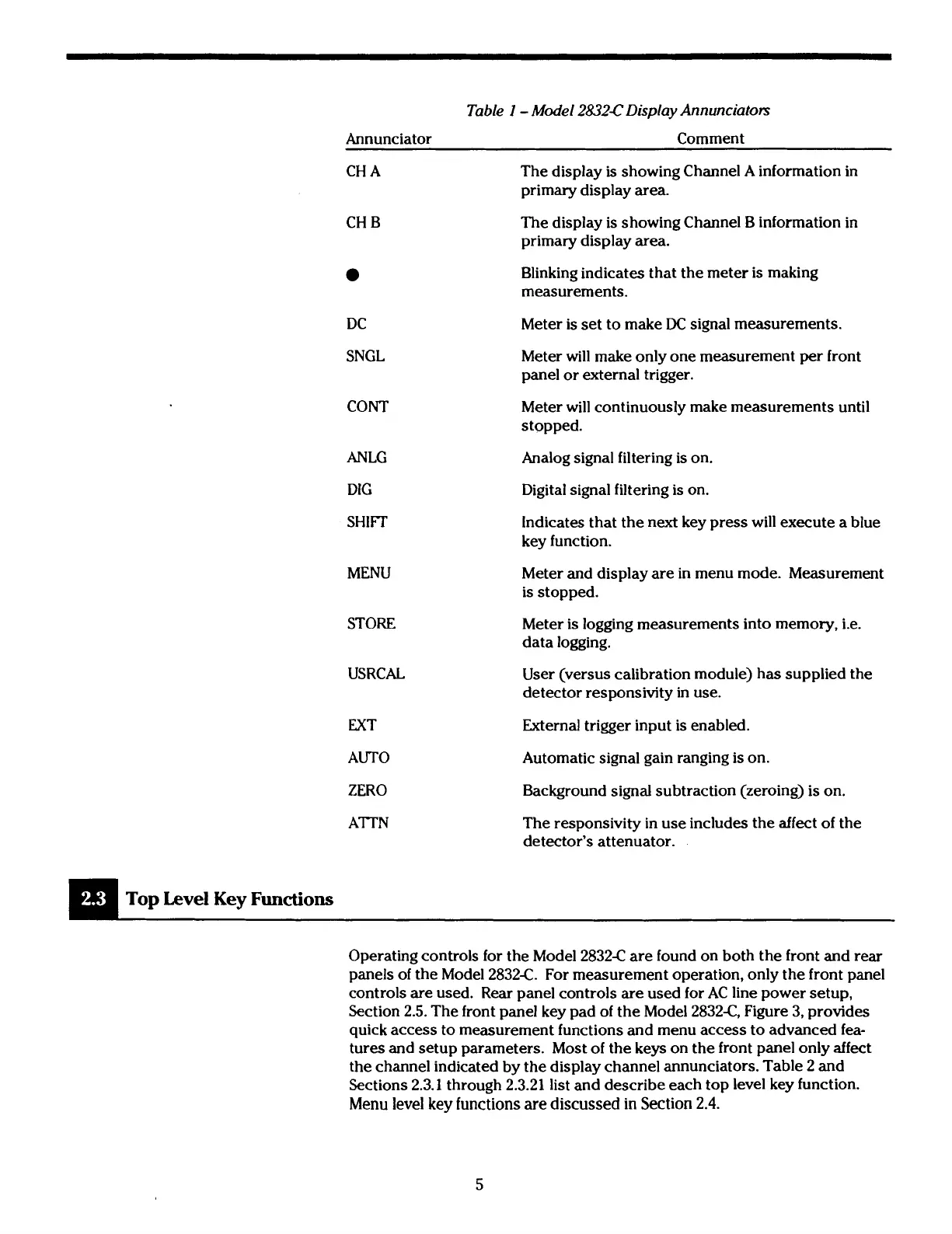

Table
1
-
Model
Z83ZC
Display Annunciaton
Annunciator Comment
CH A
CH B
DC
SNGL
CONT
ANLG
DIG
SHIFT
MENU
STORE
USRCAL
EXT
AUTO
ZERO
A'ITN
The display
is
showing Channel A information in
primary display area.
The display is showing Channel B information in
primary display area.
Blinking indicates that the meter is making
measurements.
Meter is set to make
DC
signal measurements.
Meter will make only one measurement per front
panel or external trigger.
Meter will continuously make measurements until
stopped.
Analog signal filtering is on.
Digital signal filtering
is
on.
Indicates that the next key press will execute a blue
key function.
Meter and display are in menu mode. Measurement
is
stopped.
Meter
is
logging measurements into memory, i.e.
data logging.
User (versus calibration module) has supplied the
detector responsivity in use.
External trigger input is enabled.
Automatic signal gain ranging is on.
Background signal subtraction (zeroing) is on.
The responsivity in use includes the affect of the
detector's attenuator.
Operating controls for the Model
2832€
are found on both the front and rear
panels of the Model
28324.
For measurement operation, only the front panel
controls
are
used. Rear panel controls are used for AC line power setup,
Section
2.5.
The front panel key pad
of
the Model
28324,
Figure
3,
provides
quick access to measurement functions and menu access to advanced fea-
tures and setup parameters. Most of the keys on the front panel only affect
the channel indicated by the display channel annunciators. Table
2
and
Sections
2.3.1
through
2.3.21
list and describe each top level key function.
Menu
level key
functions are discussed in Section
2.4.
