Newport LBP2 Series User Manual

LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 28
2.3.1 2D|3D Properties

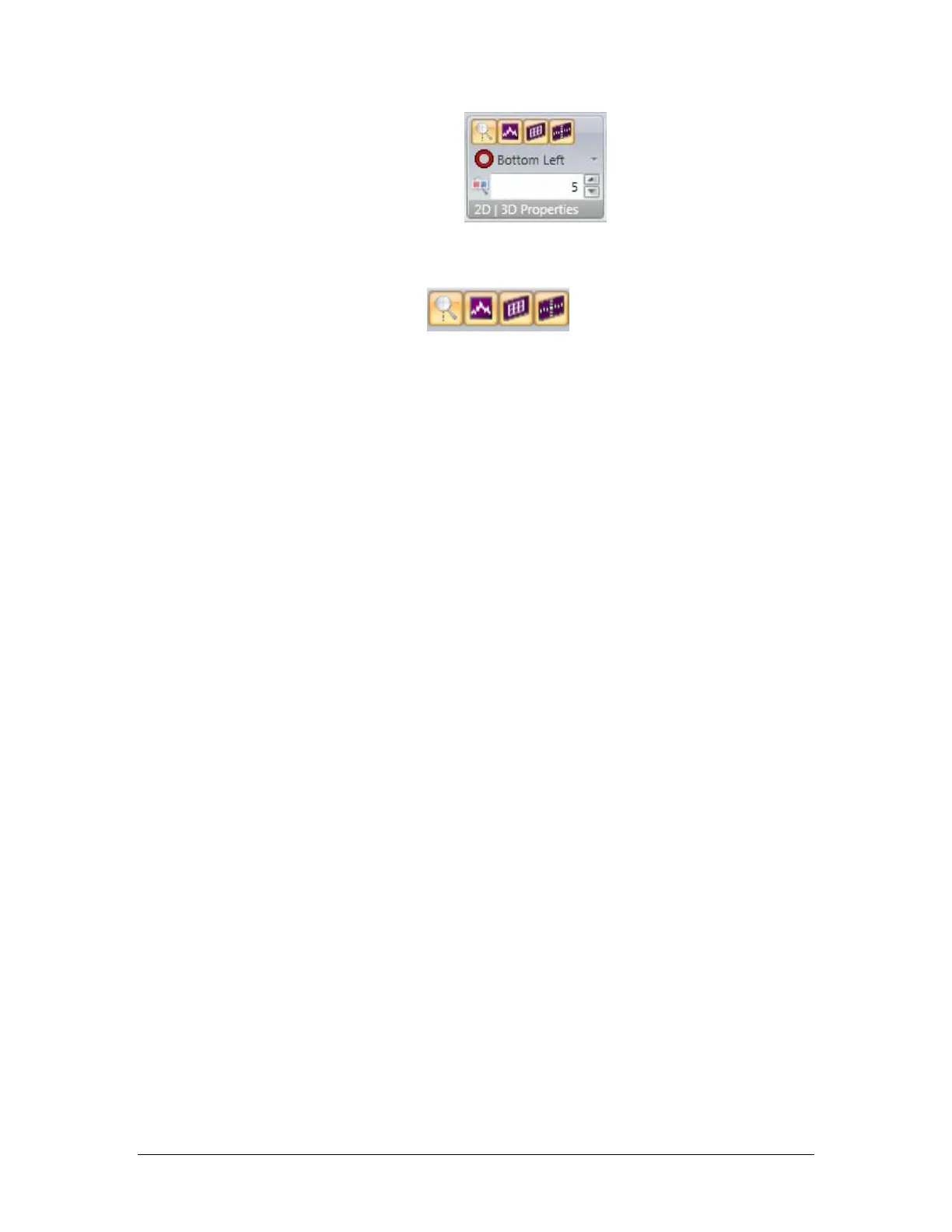

This panel controls a number of display features in the 2D and/or 3D Beam
Display Windows. The top four buttons toggle on/off the following features, from
left to right:
 Enable/Disable Zoom to Cursor If the Cursors are present, and this
button is ON, zooming in the 2D display windows will be to the point of the
Cursor intercepts. When OFF or when the cursors are not present, the
zooming action will be to the center of the 2D Beam Display window.
 Enable/Disable Beam Profiles When the Cursors are present they
define a 1D Slice thru the beam intensity profile. When On this control will
project the slice profiles along the bottom and left side of the 2D Beam
Display window.
 Enable/Disable 3D Backplanes Turns ON/OFF the 3D backplanes.
These planes can be useful when viewing the slice profiles in the 3D
Beam Display window.
 Enable/Disable 2D Elements in 3D Turns ON/OFF projections of the
Manual, Auto, and Beam Width Apertures onto the surface of the 3D beam
profile.
The following figures depict the views of the 2D and 3D Beam Profile windows
with all of the above properties enabled.
Note: Different beam profiles are shown in the following depictions.
