LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 37

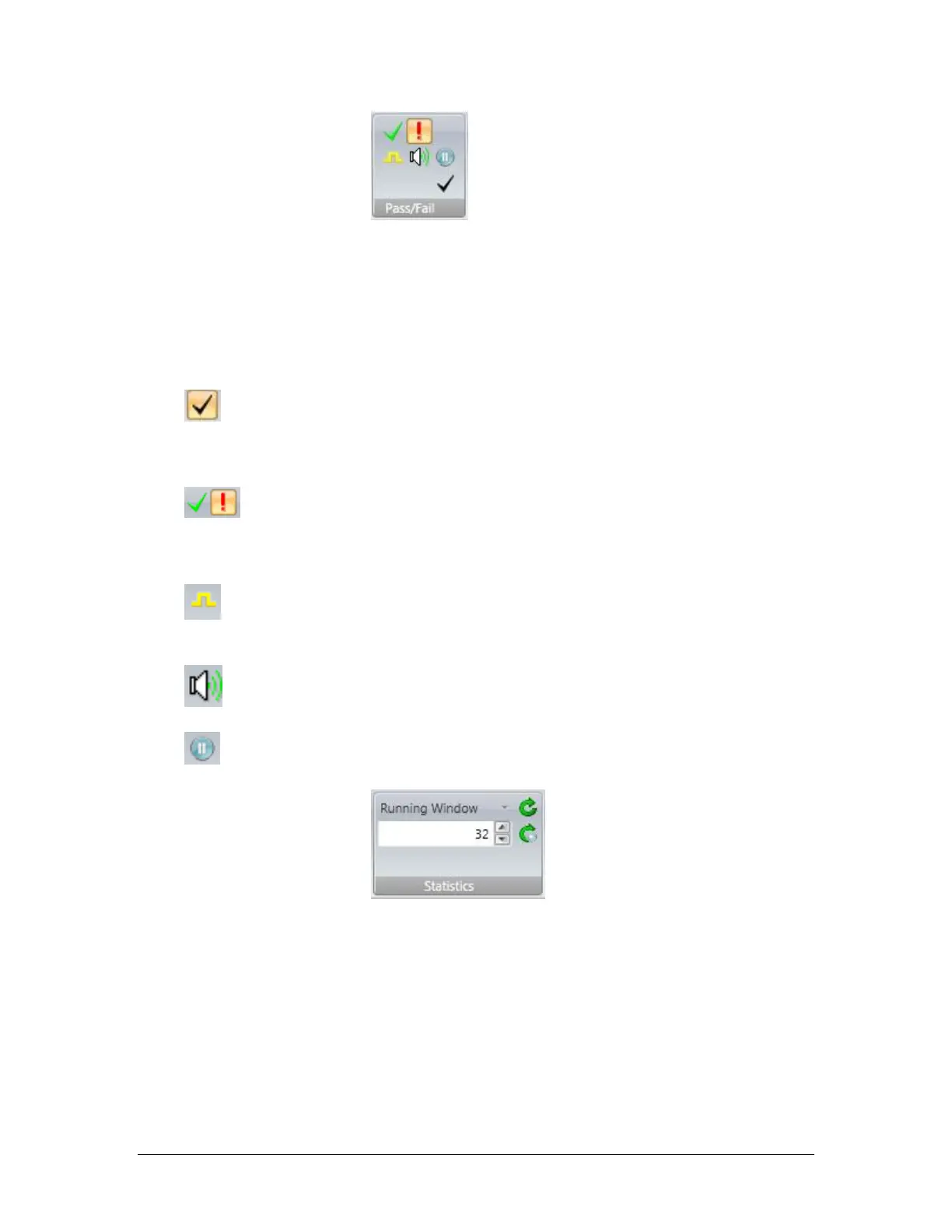

2.5.4 Pass/Fail
This panel contains the master Pass/Fail controls. Pass/Fail boundary conditions
are set in the various Results display windows. The controls that enable the
Pass/Fail indicators and the consequences of a Pass or a Fail event are determined
here.
Note: When a Pass/Fail item is enabled anywhere in the results the Enabled box
will automatically be checked.
Master Pass/Fail Enable/Disable Toggle ON to allow
Pass/Fail limits to be applied to bounded results items. Pass/Fail testing is
disabled when OFF.
Pass/Fail Action Select which pass/fail condition to apply an
action on: on Pass, on Fail, no Action. Above indicates to take action on Fail.
The possible Actions are:
TTL Pulse output from a USB adapter on each actionable event. Order
this adapter as an option. Order part number SP90060.
Beep the PC’s Beep tone will sound when an actionable event occurs.
Stop running when an actionable event occurs.
2.5.5 Statistics
This panel contains the master control for the Results windows Statistical
calculations. This also sets the number of samples to use in computing the
statistical results values. The stats can be set to Reset each time data collection is
started or a Reset of the stats can be forced at any time even when running.
A typical stats display will look something like the results display shown below.
