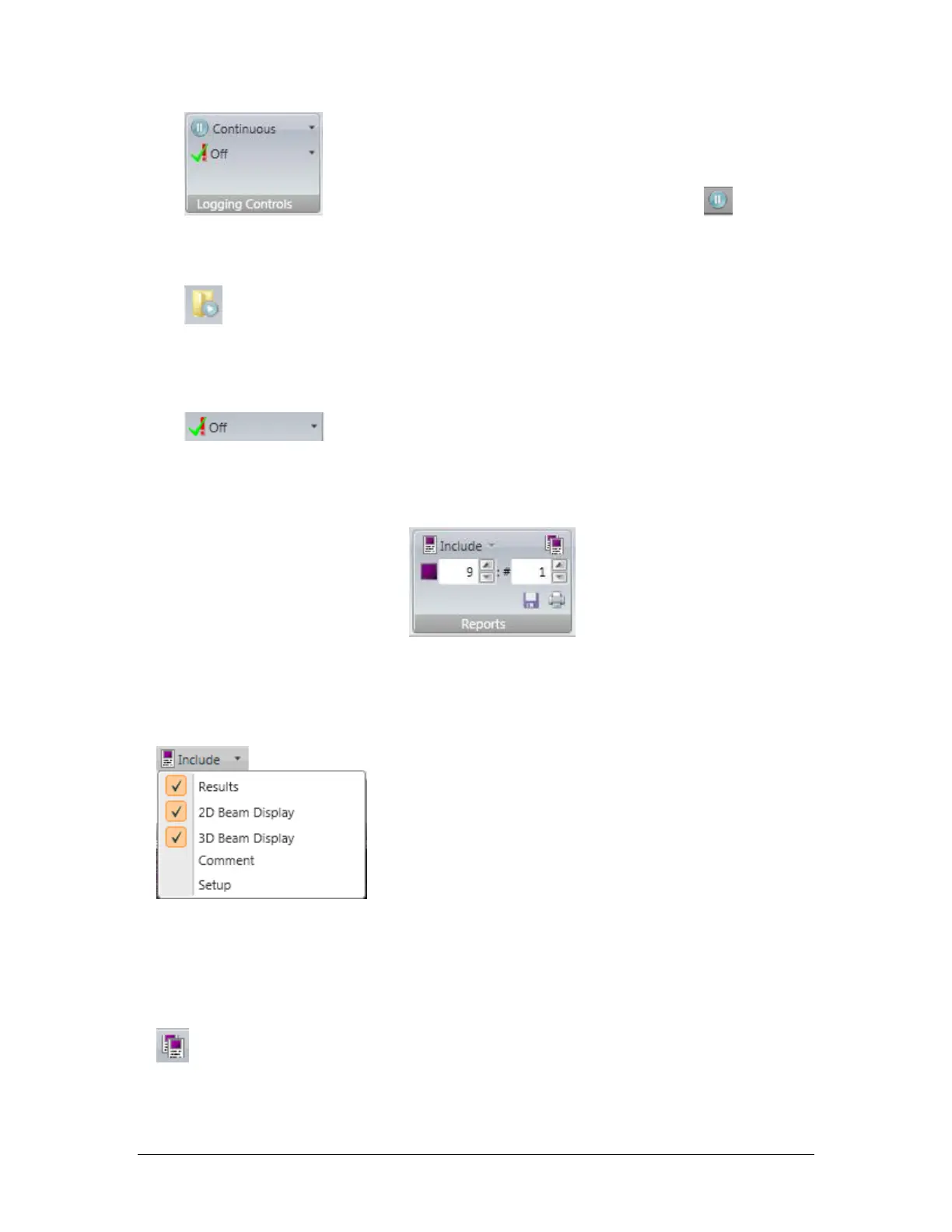

LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 49
Or it can be set to run continuously until Pause is clicked.
Warning: If not manually stopped the log will run until the hard
drive is full.
Stop or Continue data capture When in a logging mode the
data will stop when the logging requirements of Time or Number of Frames is
met. To continue capturing data frames after the logging process terminates,
enable this control.
Log Pass/Fail The user can apply a Log Pass/Fail filter
that determines which results get logged. If Pass is checked, then only the frames
that pass the enabled Pass/Fail criteria will be logged. Similarly, if Fail it checked,
only the failed frames will be logged.
2.9 Reports Ribbon
Reports consist of user-defined printouts or savable PDF files that can be created from
the various display windows and results enabled in LBP2. The basic rule is that items
are printed in a “what you see is what you get” style. If certain displays are pinned,
they will be automatically opened for the purpose of printing or saving to a PDF file.
Include Options Use the Reports Include
dropdown to enable the items that are to appear in a report. The window must be
opened somewhere on the screen to be able to print it.
If Setup is checked, all of the panels with all of their settings will be added to the
report.
Separate Pages To keep everything neatly sorted check this and each
printed item will be printed on separate sheets of paper.
To Next Page
