TIFF data is stored using the gray32bppFloat pixel format. This format uses a
single color channel with 32 bits of precision. The pixel count is stored as a
normalized floating-point value between -1 and 1. The value is calculated using
the minimum and maximum values of a signed 32-bit integer, namely
±2,147,483,647. The original per pixel values of the collected data can be
obtained by multiplying the floating-point value obtained from the tiff image by
2,147,483,647.
4.5.1 Exporting TIFF Images for use with HDF5
TIFF images can be exported for use with HDF5.

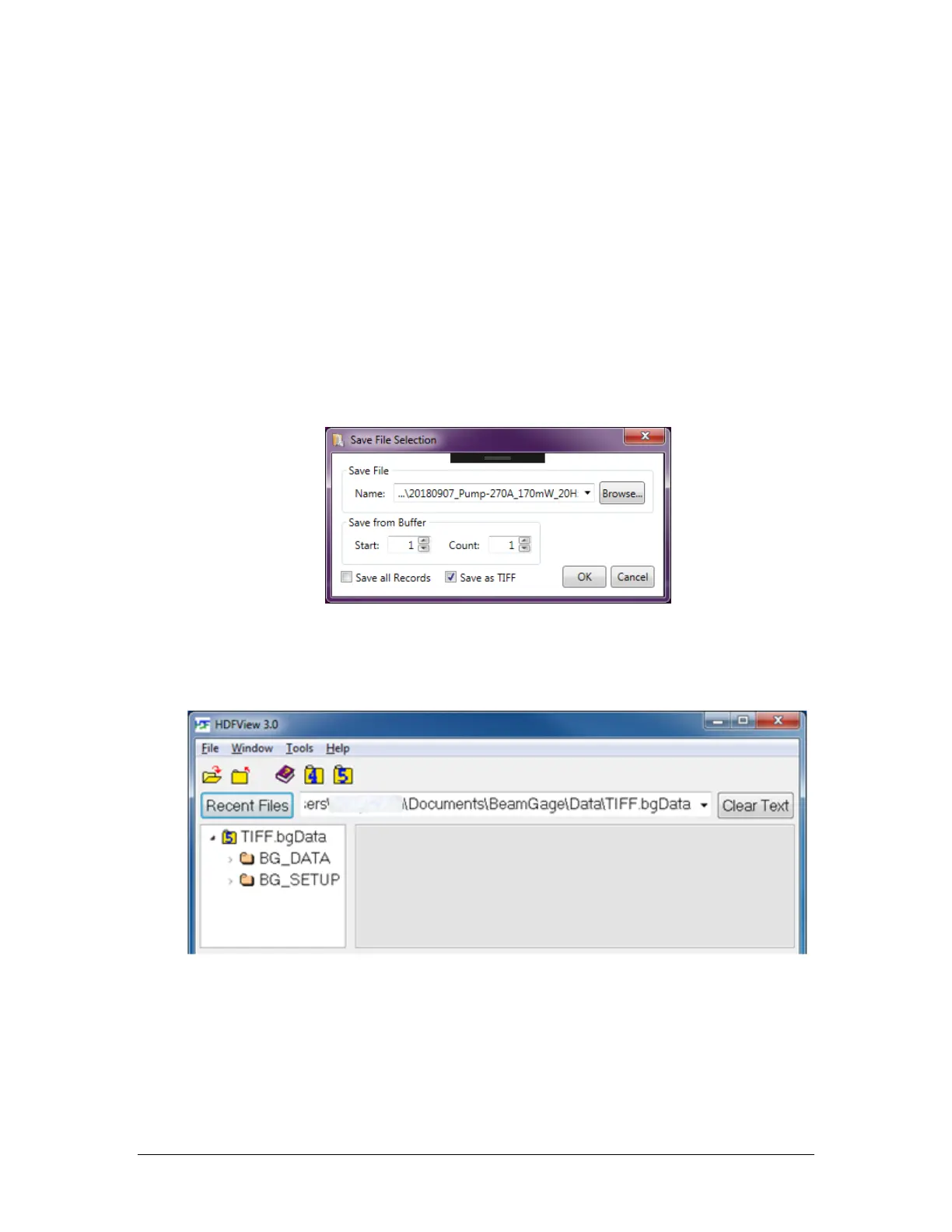

1. Select File->Save Data. Save the data with the TIFF compression
enabled.
2. Download and install HDFView.
3. Run HDFView.
4. Open the LBP2 data file.
