LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 34

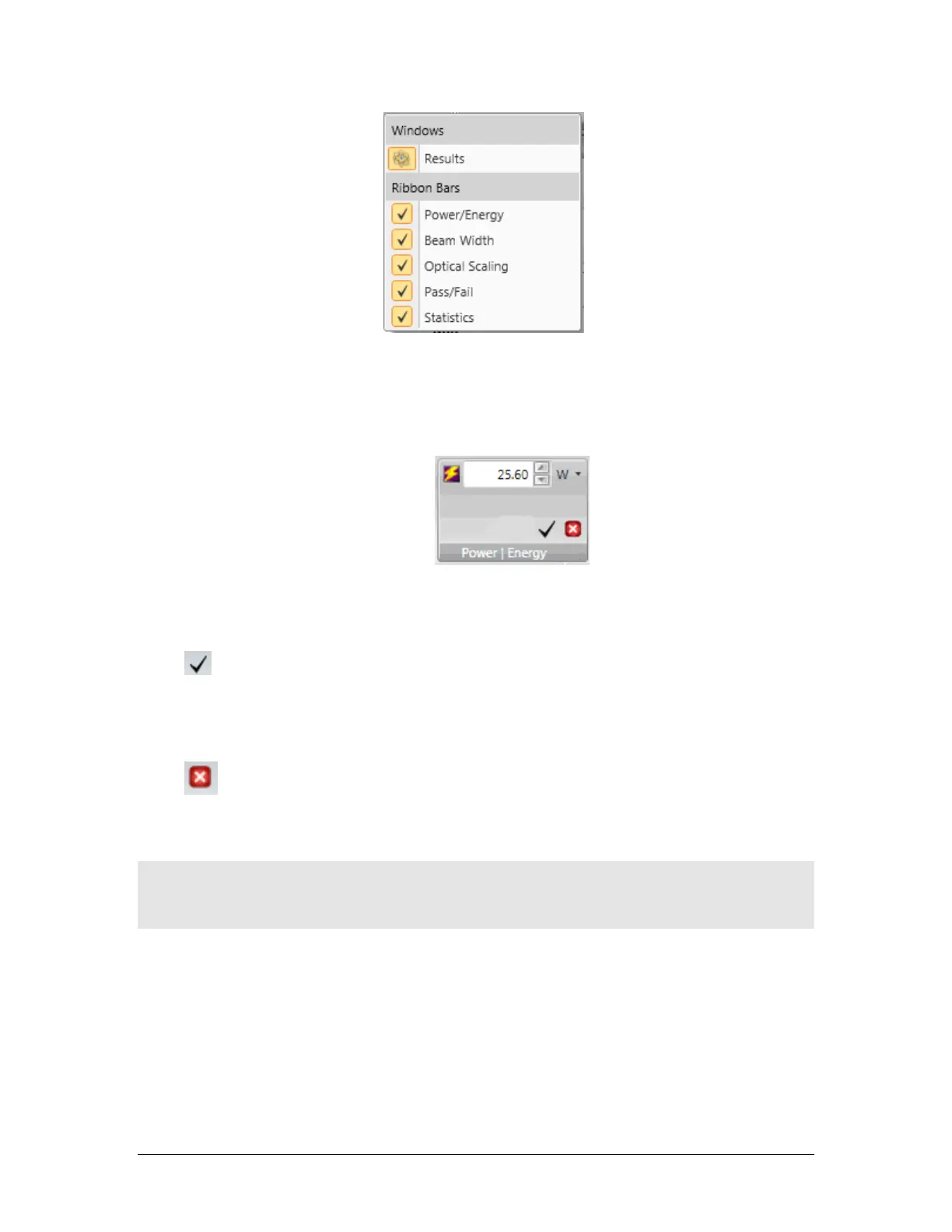

Note: The Results button in the above Tools menu opens/closes the Results display
window. The remainder of this section will describe only the panel controls. The
following section will describe the Results display window, which contains its own
set of controls.
2.5.1 Power /Energy
This panel is used to manually calibrate the beam power/energy, based on a
measurement from an external power/energy meter. When set to Zero, the
results are un-calibrated and the beam intensity is reported in counts.
Apply Calibration To calibrate the beam, enter the Power/Energy
value in the edit control, select the appropriate units, and click Apply. The frame
currently being displayed will be assigned this calibration value. If the calibration
value has been changed but not applied, the value will turn Red.
Clear Calibration To cancel the calibration click on this button. The
last entered calibration value will remain, but the calculated units will revert to
processed digitized counts (cnts) and will be dimensionless.
The blue letters ISO indicates that the result is computed using an ISO defined
method. However, if other settings are inappropriately configured the ISO result
may not be achieved. This topic in covered in more detail in CHAPTER 5.
