Newport LBP2 Series User Manual

LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 30

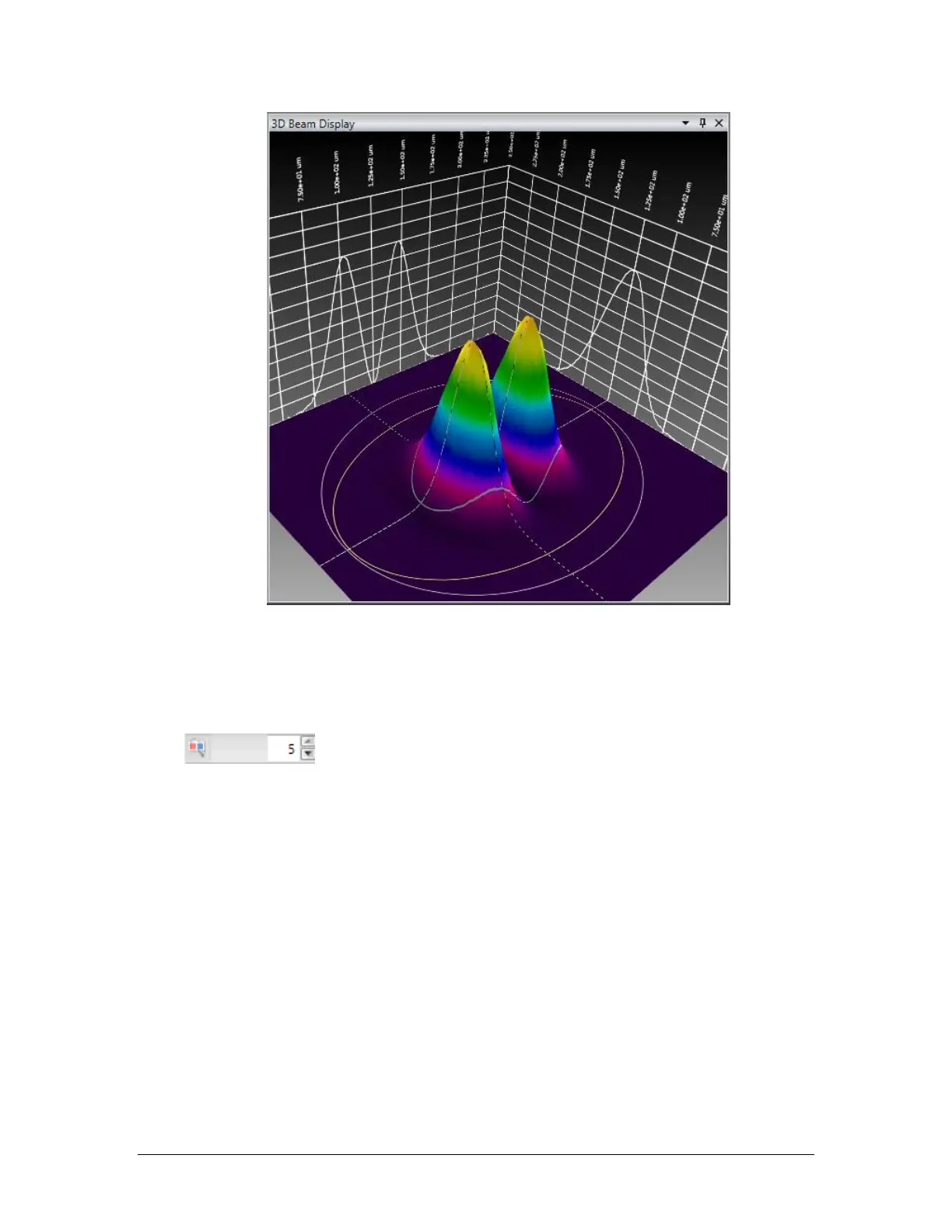

2.3.3 3D Beam Display Window
The projected apertures: Manually Drawn Aperture (Lt Grey), Auto-aperture (Lt
Yellow), and Beam Width (Lt Green). The beam slice profiles are traced in White
and projected onto the visible Backplanes.
The 3D Resolution edit control determines the amount of
detail that will be rendered in the 3D beam profile. A number 1 is finest resolution
and will cause the data frames to update at a slower rate. The max value is 10
and will result in a more grainy looking display but the update rate will be faster.
Important: The 3D display utilizes the maximum amount of graphics drawing resources
that the PC and Graphics card can provide. As a result, the 3D display will
always cause the acquisition rates to run significantly slower, especially
noticeable with higher resolution cameras.
