Newport LBP2 Series User Manual

LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 43
2.6.3.3 Edit Pass/Fail

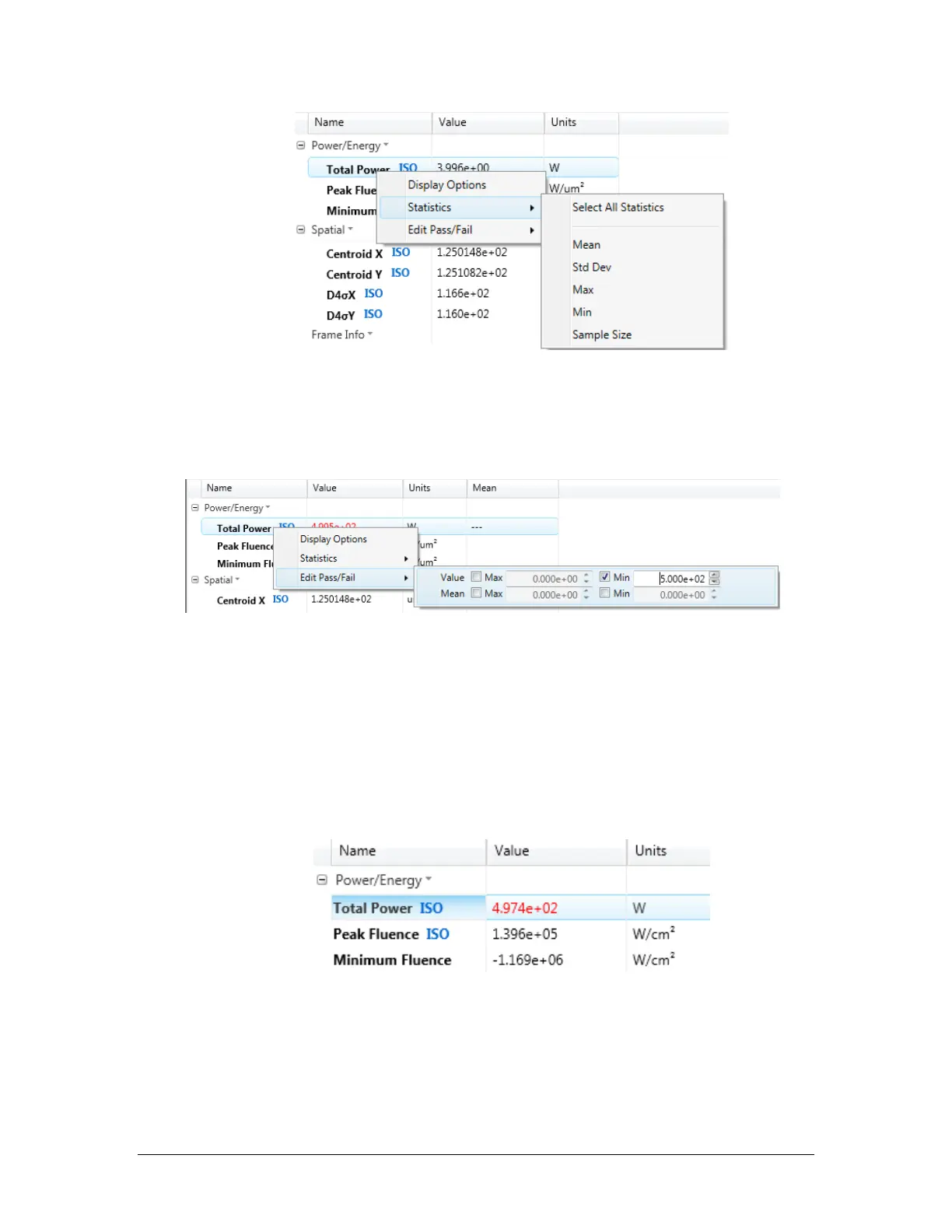

This is the control that enables and sets the Pass/Fail limits. Right-click a
Results item, select Edit Pass/Fail, enable the pass/fail condition that is to be
applied, and enter the limit value that defines the boundary conditions.
In the above example, the Pass condition is that the Total power must be
greater than or equal to 500 Watts. Observe that the Units selected define the
pass/fail units.
When the results fail the pass/fail criteria, the results value will appear in Red.
If the result satisfies the pass/fail criteria, the results value will appear Green.
The result display below is an example of the above Total Power setting
failing.
Additional Pass/Fail settings may need to be set in the Computations
Pass/Fail panel.
