LBP2 User Guide Document No: 50306-001 Rev G 3/12/2020 Page 41
items that are needed to be seen and overlay them inside of another display
window. If statistics values are enabled when the result is dragged, they will
appear in the display window once dropped. Statistics values can also be
enabled/disabled for the selected result while it is in the display window.
The results item will float in the designated display window with a transparent
background. To reposition the location of the item, use the mouse to drag and
drop it to a new location. To delete the floating item, place the mouse over the
item and click the cancel box that appears. Observe that if the result item is
copied and displayed in another window, hiding it in the results window will
not remove it from the display window. That removal must be performed

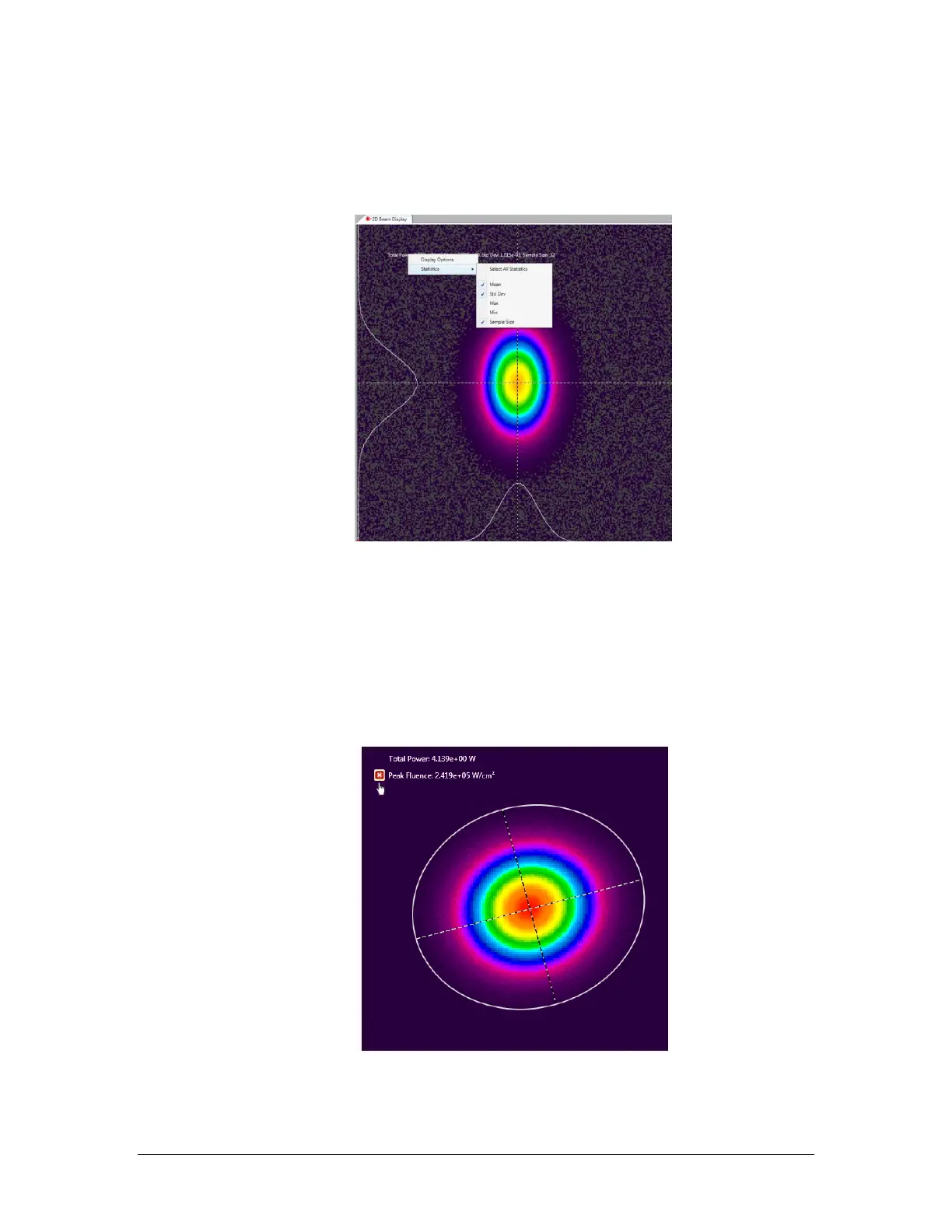

separately. The example below shows the Total Power and Peak Fluence
results overlaid in the 2D Beam Display window.
