Turn on the illumination
NIB610
1

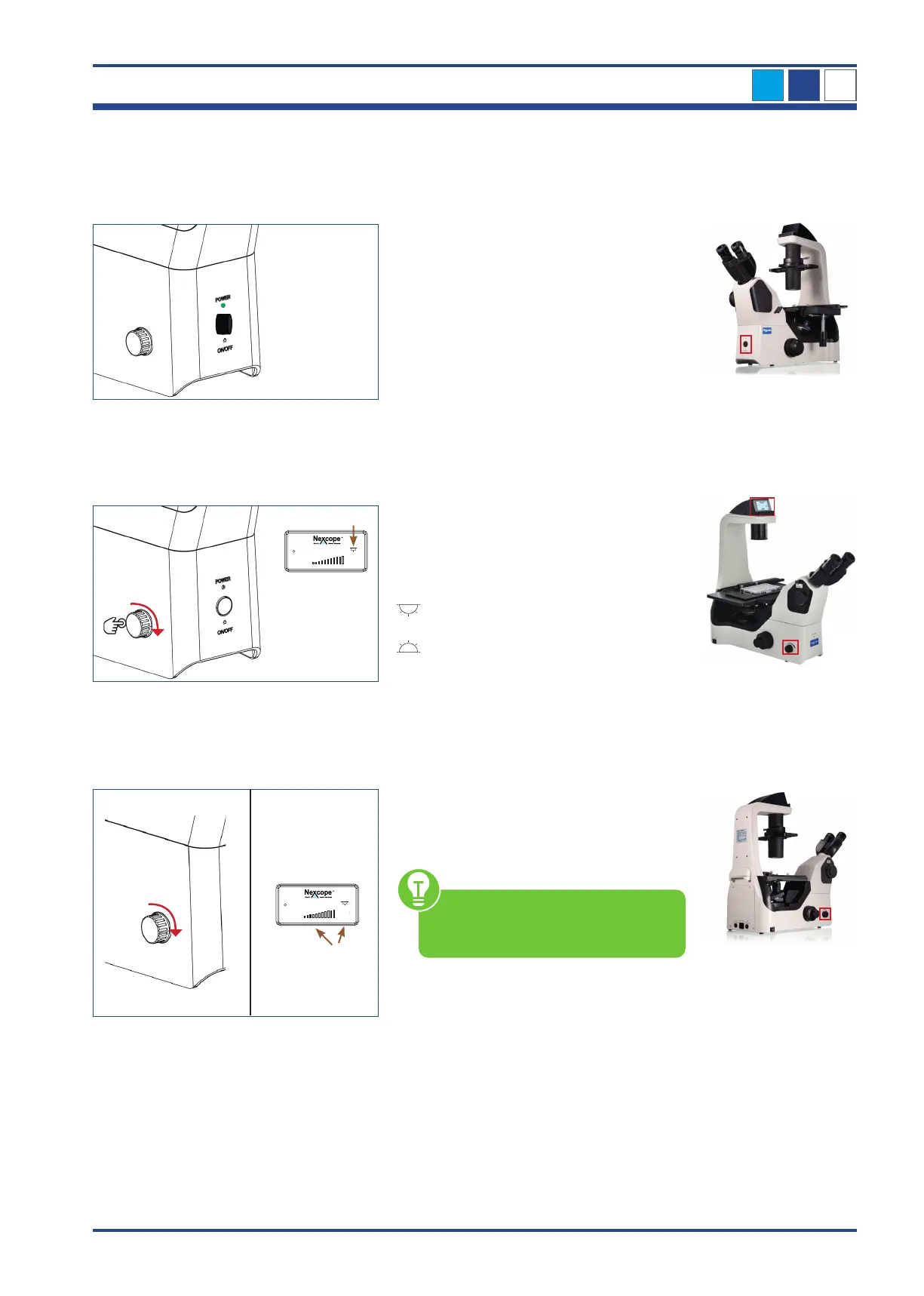

Illustration 011: NIB610 - Turn on the illumination.
Press out the black illumination ON/OFF
switch (1) to turn on the lighting.
Set transmitted light ON
NIB620
2
10x
100
3
Illustration 012: NIB620 - Adjust transmitted light.
PRESS and TURN the brightness control knob
(2):
Liquid Crystal Display (LCD)
Transmitted light ON (3)
Transmitted light OFF
Adjust the illumination
2
10x
100
4
NIB620NIB610/NIB620
30
Illustration 013 : NIB610/NIB620 - Adjust the illumination.
Turn the brightness control knob (2) in the
direction of the arrow  the light intensity
increases and vice versa.
Only NIB620
Last used light intensity (4) is shown as num-
ber (percentage unit) and in form of bars in
the LCD.
Make sure that the optical path for
the binocular part is set to 100 %,
see chapter 3.4.9.
NIB610/NIB620
3
