NIB610/NIB620
3
3.4.10. Compact main body, suitable for Clean Bench

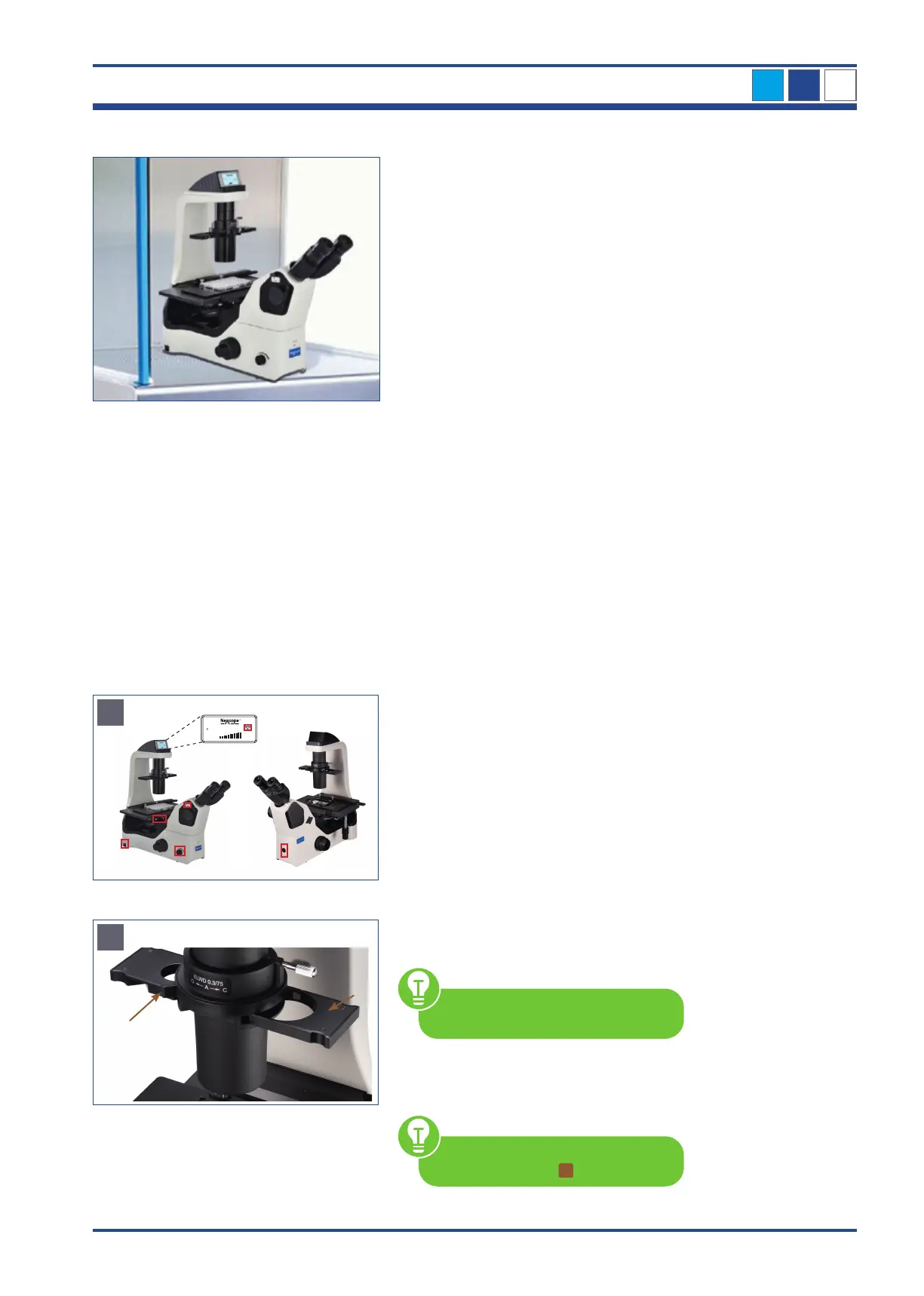

Illustration 027: Body of NIB610/NIB620 sutiable for Clean Bench.
The body is compact, stable and suit-
able for Clean Bench:
Can be sterilized in the Clean Bench
On the premise of ensuring the effect of
imaging, NIB610/NIB620 are with compact
design. The volume and weight of the body
is reduced as much as possible in principle
of stability. The compact body is with anti-UV
coating and can be placed into the Clean
Bench for sterilization under UV lamp.
Cell sampling and operation can be
performed in Clean Bench
The distance between the eye point to the
operation button and the focusing knob is
relatively short, and the distance from the
stage is far away. It is available to make the
viewing head and operating mechanism out-
side, and stage, objectives and sample in-
side. So realize cell sampling and operation
inside and observing comfortably outside.
3.5. How do I set up my microscope correctly?
3.5.1. Basic settings for bright field microscopy
(NIB610/NIB620)
A
10x
100
22
3
44
55
66
11
Illustration 28 A: NIB610/NIB620 - Settings before you start.
B
1
22
Illustration 28 B: NIB610/NIB620 - Settings on the condenser.
Before you start...
1. Microscope is switched on
2. Only NIB620: Transmitted light ON
3. Switching rod for visual observation/
photo is set to 100% to binocular part
(rod pushed in)
4. 10x objective is swivelled in
5. Turn on the illumination (Regulation via
the brightness control knob)
6. 6 Only NIB610: Turn on the illumination
ON/OFF switch
Fully open the aperture.
Set the aperture diaphragm lever (1) to
position O (open).
For further explanations see chapter
3.4.7.
Set the universal phase contrast slid-
er (2) to bright field position
Select a hollow position  position without
ring diaphragm  bright field observation
For further explanations see
chapter 3.3.1./
