4.3.9. Light path of the ergo tilting viewing head
A
1
2
3

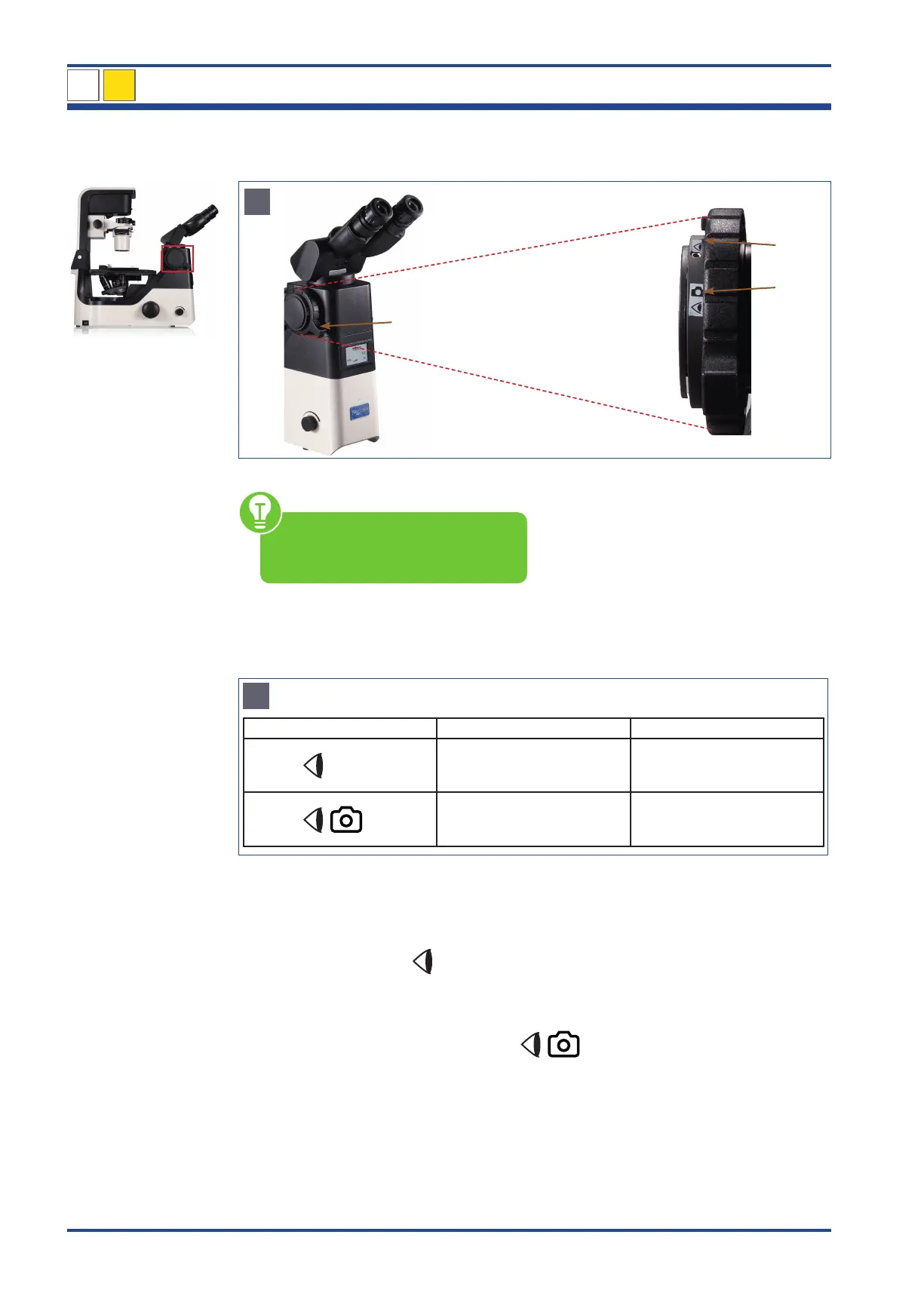

Illustration 050 A: NIB630 - Light path of the ergo tilting viewing head.
To capture microscope images,
mount the appropriate camera on
the 1x C-mount photo adapter.
Via the changing lever for visual observation/photo (1) the light can be directed either to
the eyepieces of the binocular part (2) or to the attached camera (3).
B
Icon Binocular part Camera port
100 % 0 %
20 % 80 %
Illustration 050 B: NIB630 - Light intensity distribution ratios.
Two light path settings can be selected with the help of the changing lever
for visual observation/photo:
Binocular part  Icon
In this position according to the table, all light goes to the eyepieces. The camera port re-
ceives no light.
Binocular part/Camera port  Icon
In the second position, the eyepieces receive 20%, while the camera receives 80% of the
light. Visual observation and photomicrography can be done simultaneously.
