3.4.3. Setting the sample on the mechanical stage
A

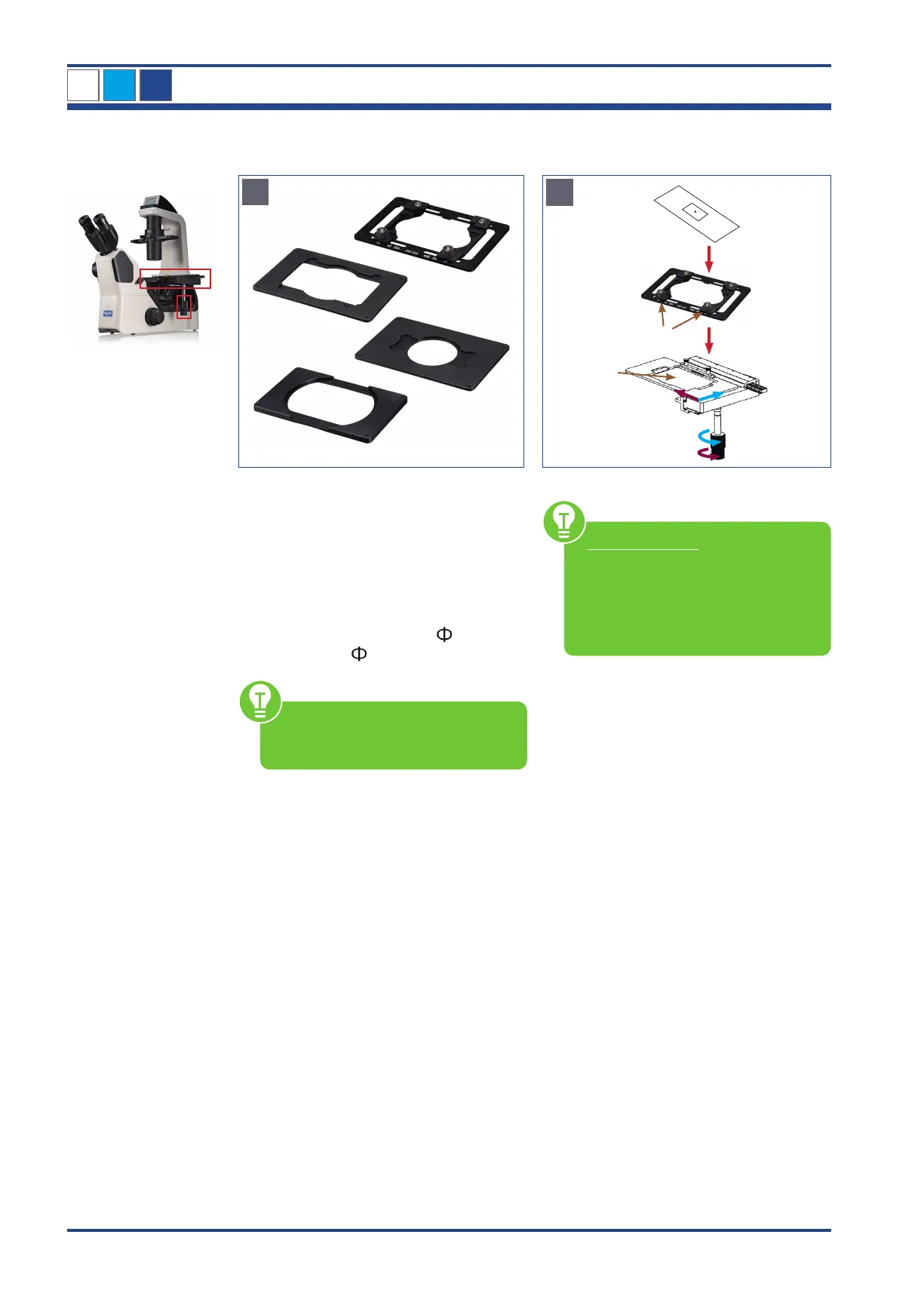

Illustration 014: NIB610/NIB620 - Sample placement.
Attaching the following sample holders
enables you to observe various types of
specimens:
Universal holder (1)
Terasaki holder (2)
Petri dish holder/Slide holder ( 54mm) (3)
Petri dish holder ( 90mm) (4)
Universal holder is included in the
scope of delivery. The other holders
can be ordered as accessories.
1
7
6
5
9
8
X-axis
Y-axis
B
Microscope slide
Turn in the 4x objective on the nose-
piece. Objectives with higher magnifi-
cation may collide with the specimen
during observation due to the short
working distance.
Place the universal holder (1) in the stage
plate holder (5) with the scale facing for-
ward. Then carefully place the sample to be
examined, e.g. a microscope slide (6), on
the universal holder. With the help of the two
adjusting screws (7) on the universal holder,
you can fit the slide exactly.
The adjustment knobs (8, 9) are coaxial.
The X-axis knob (8) moves the plate holder
along the X-axis.
The Y-axis knob (9) moves the plate holder
along the Y-axis.
1
2
3
4
