Nexcope NIB620 - Detachable Condenser; Light Path of the Viewing Head

38
NIB610/NIB620
3

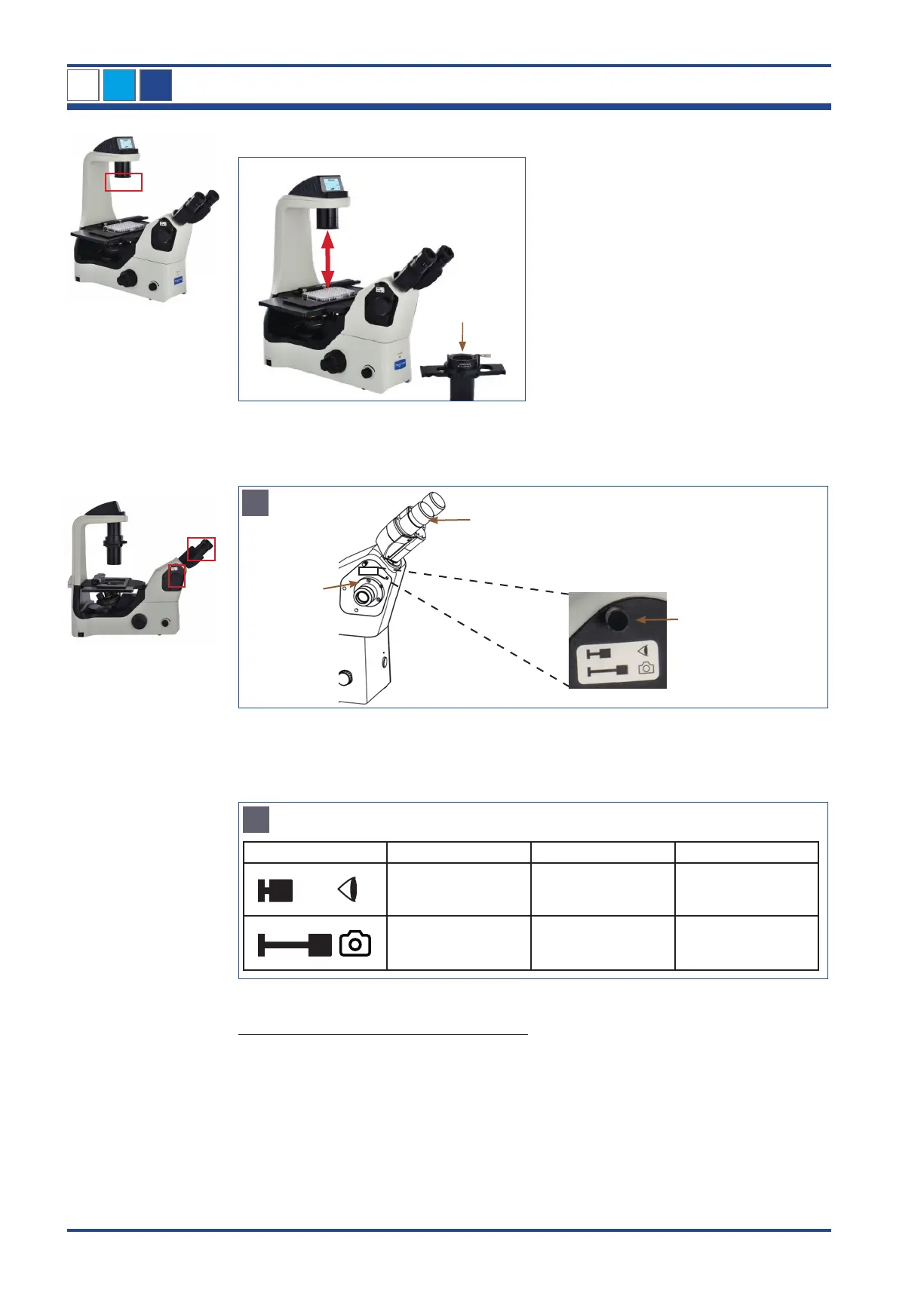

3.4.9. Light path of the viewing head
1
3
2
A
Illustration 25: NIB610/NIB620 - Light path of the viewing head.
Use an appropriate photo adapter (1) for a camera connection to take microscope pictures.
Via the switching rod for visual observation/photo (2) the light can be directed either to the
eyepieces of the binocular part (3) or to the attached camera.
B
Icon Operation Binocular part Camera port
Push the rod for observation
completely into the device
100 % 0 %
Pull the rod for observation
completely out of the device
0 % 100 %
Illustration 26: NIB610/NIB620 - Light intensity distribution ratios.
Two light path settings are possible:
Switching rod complete in the unit:
In the first position according to the table, all light goes to the eyepieces. The camera port
receives no light.
Switching rod completely out of the unit:
In the second position according to the table, all light goes to the camera. The camera port
receives all the light. This is especially helpful when using contrast techniques or observing
moving / living samples as exposure times are the shortest.
3.4.8. Detachable condenser
Illustration 24: NIB610/NIB620 - Detachable condenser.
1
2
When culture flask is used, the condenser
(1) can be removed to increase working dis-
tance (2) from 75mm to 187mm. It is also
suitable for multilayer culture flask.
