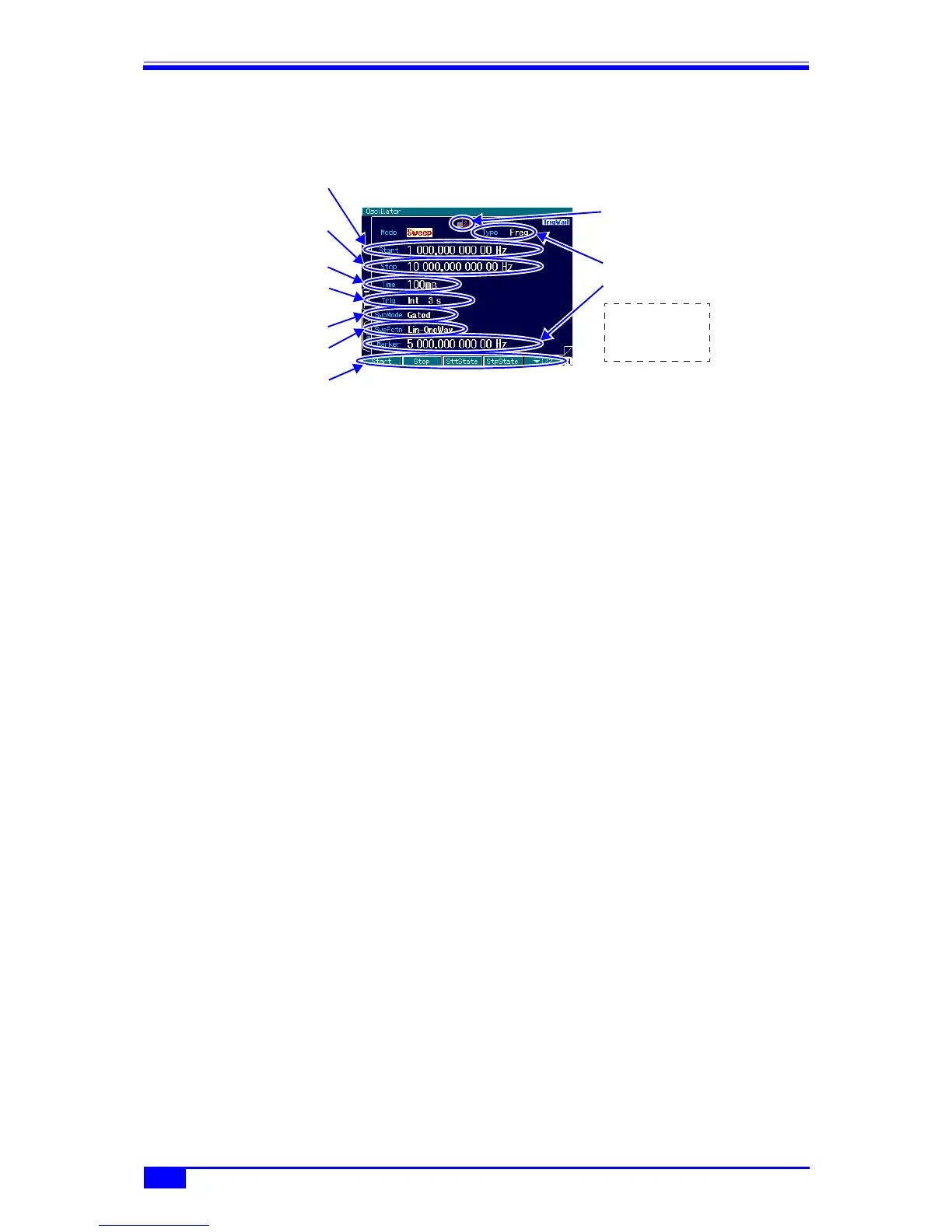

c) 2nd page of setting screen: Screen for the main sweep settings
The figure is an example that shows frequency selection as the sweep type.
Sweep type [Type]
This is the type of sweep. Frequency, phase, amplitude, DC offset, and duty can be
chosen from. ) p. 86
Sweep start value [Start]
This is the sweep start value.
Sweep stop value [Stop]
This is the sweep stop value.
Sweep time [Time]
This is the transition time from the start value to the stop value.
Sweep mode [SwpMode]
This is the sweep oscillation mode. Continuous sweep, single-shot sweep, and gated
single-shot sweep can be chosen from. ) p. 87
Trigger [Trig]
This is the trigger condition for single-shot sweep and gated single-shot sweep.
Internal and external can be chosen as the trigger source. ) p. 90
Sweep function [SwpFctn]
This is the sweep form. One-way and shuttle can be chosen from. Linear and log are
also possible if the sweep type is frequency. ) p. 86
Sweep marker value [Marker]
This is the sweep marker value. ) p. 92
Press the NEXT
key to switch to
the 3rd page
Sweep start value
Sweep stop value
Single-shot, gated single-
shot sweep trigger
Sweep time
Sweep type
Indicates that the
2nd page is
displayed
Sweep mode
Two soft key stages
Sweep function
Sweep marker value
To Next Page
