4.8 Sweep Setting and Manipulation
85
WF1973/WF1974

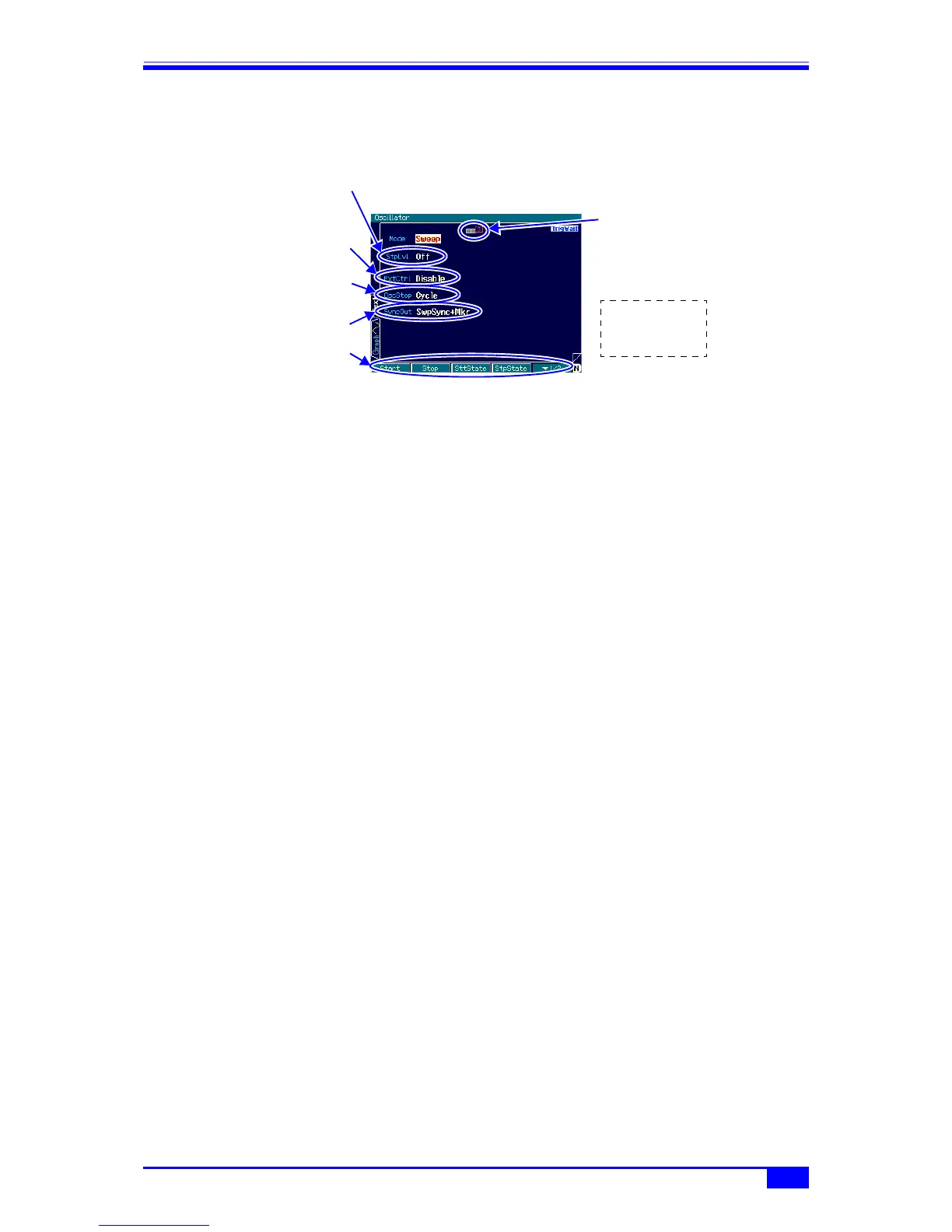

d) 3rd page of setting screen: Screen for complementary settings for sweep
The figure is an example that shows frequency selection as the sweep type.
Stop level [StpLvl]
This is the signal level when gated single-shot sweep oscillation is stopped. It can be set
either to [Off] or [On] for setting the level. Normally, [Off] is set. ) p. 89
External control with multi-I/O connector [ExtCtrl]
Enables/disables external control with the multi-I/O connector. ) p. 94
Oscillation stop unit for gated single-shot sweep [OscStop]
This is the oscillation stop unit for gated single-shot sweep. The unit can be selected
from 1 cycle and 1/2 cycle. Normally, the unit is set to 1 cycle. ) p. 89
Sync output [SyncOut]
This is the output signal from the sync/sub-output terminal. Waveform reference phase
sync, sweep sync, sweep marker, and sweep X drive can be selected from. ) p. 92
Sync output
Press the NEXT
key to display
the 1st page
Stop level of gated single-
shot sweep
Sweep control with
multi-I/O connector
Gated sweep
oscillation stop unit
Indicates that the
3rd page is
displayed
Two soft key stages
To Next Page
