AT-GPIB/TNT (PnP) and AT-GPIB/TNT+

Step

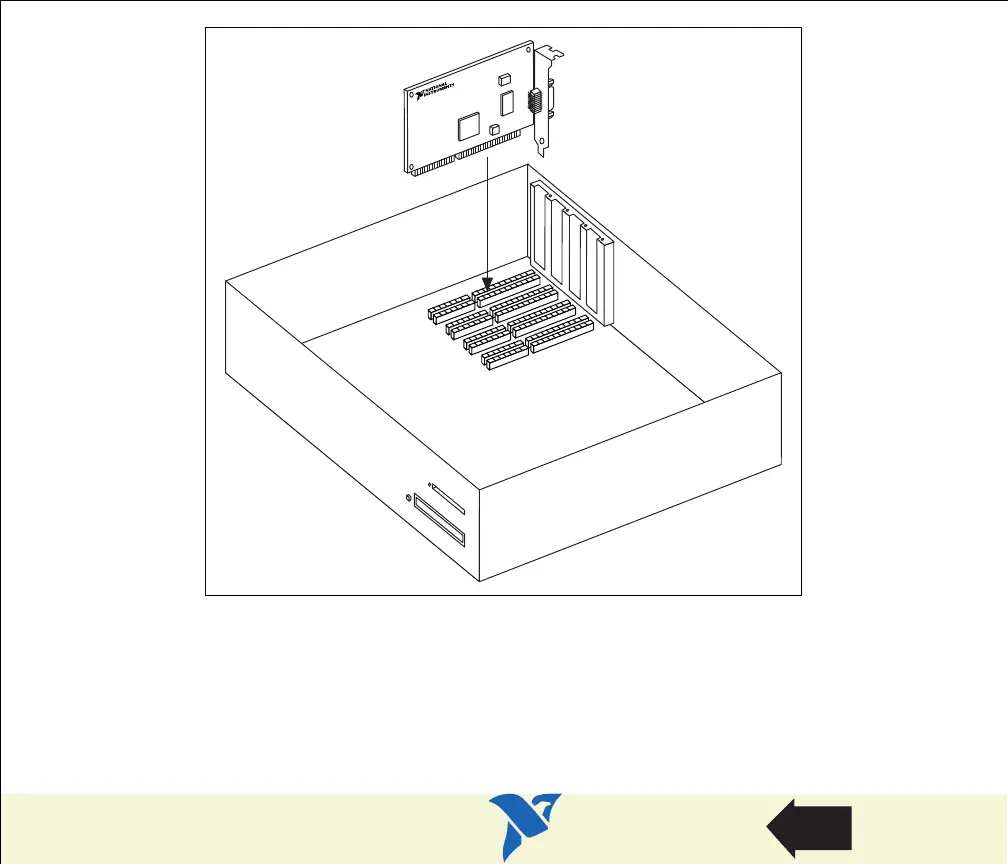

Figure 13. Installing the AT-GPIB/TNT (PnP)

6. Screw the mounting bracket of the GPIB board to the back panel rail of the computer.

7. Replace the top cover (or the access panel to the expansion slot), power on your computer,

and start Windows.

The GPIB hardware installation is now complete.

Questions and Answers:

Need help?

Do you have a question about the NI GPIB Series and is the answer not in the manual?

General

Operating Systems Supported	Windows, Linux, macOS
Driver Software	NI-488.2
Bus Interface	IEEE 488
Data Transfer Rate	Up to 8 MB/s
Compatibility	IEEE 488.1, IEEE 488.2
Connector Type	24-pin IEEE 488 connector
Maximum Cable Length	20 m total system length
Number of Devices Supported	Up to 14 devices per bus
