ENGLISH – 3
– The manufacturer declines all liability for damages to
property, objects or people resulting from failure to
observe the assembly instructions. In such cases, the
warranty for material defects shall not apply.
– The weighted sound pressure level of the emission A is
lower than 70 dB(A).
– Cleaning and maintenance reserved for the user must
not be carried out by unsupervised children.
– Before intervening on the system (maintenance,
cleaning), always disconnect the product from the
mains power supply and from any batteries.
– Inspect the system frequently, in particular the cables,
springs and supports to detect any imbalances and
signs of wear or damage. Do not use the product if it
needs to be repaired or adjusted, because defective
installation or incorrect balancing of the automation can
lead to injuries.
– The packing materials of the product must be disposed
of in compliance with local regulations.
– Keep persons away from the gate when it is manoeuvred
using the control elements.
– When operating the gate, keep an eye on the automated
mechanism and keep all bystanders at a safe distance
until the movement has been completed.
– Do not operate the product if anyone is working nearby;
disconnect its power supply before permitting such
work to be done.
1.2 INSTALLATION WARNINGS
– Prior to installing the drive motor, check that all
mechanical components are in good working order
and properly balanced, and that the automation can be
manoeuvred correctly.
– If the gate being automated has a pedestrian gate, the
system must be equipped with a control device that
inhibits the motor’s operation when the pedestrian gate
is open.
– Make sure that the control elements are kept far from
moving parts but nonetheless directly within sight.
Unless a selector is used, the control elements must be
installed at least 1.5 m above the ground and must not
be accessible.
– If the opening movement is controlled by a re-sensing
system, make sure that any windows larger than 200
mm are closed using the control elements.
– Prevent and avoid any form of entrapment between the
moving and xed parts during the manoeuvres.
– Permanently afx the label concerning the manual
manoeuvre near its actuating element.
– After installing the drive motor, make sure that
the mechanism, protective system and all manual
manoeuvres function properly.
PRODUCT DESCRIPTION AND
INTENDED USE
2
2 PRODUCT DESCRIPTION AND INTENDED USE
HYKE is a series of gearmotors with articulated arm and
external assembly, which can be used to automate residential
or industrial swing gates or doors. They are equipped with a
sturdy anti-shear aluminium arm and are ideal for intensive use.
The main part of the automation consists of one or more
electromechanical gearmotors (depending on the number of
leaves to be automated), each equipped with a direct-current
motor and a gear reducer with spur gears.
The HK7024 gearmotor is equipped with a control unit that
manages its operation.
The control unit is congured for being connected to the various
devices belonging to the Opera System, Bluebus system and
the Solemyo solar power system.
The control unit can also house a back-up battery (model
PS124, optional accessory) which, in case of a blackout, allows
the automation to carry out certain manoeuvres.In the event
of power outage, it is still possible to move the gate leaf by
unlocking the gearmotor with the appropriate key (see the “
Manually unlocking and locking the gearmotor” paragraph).
The automation allows for installing various accessories to
increase its functions and improve safety.
a
Any use of the product other than the intended use
described is not allowed!
2.1 LIST OF CONSTITUENT PARTS

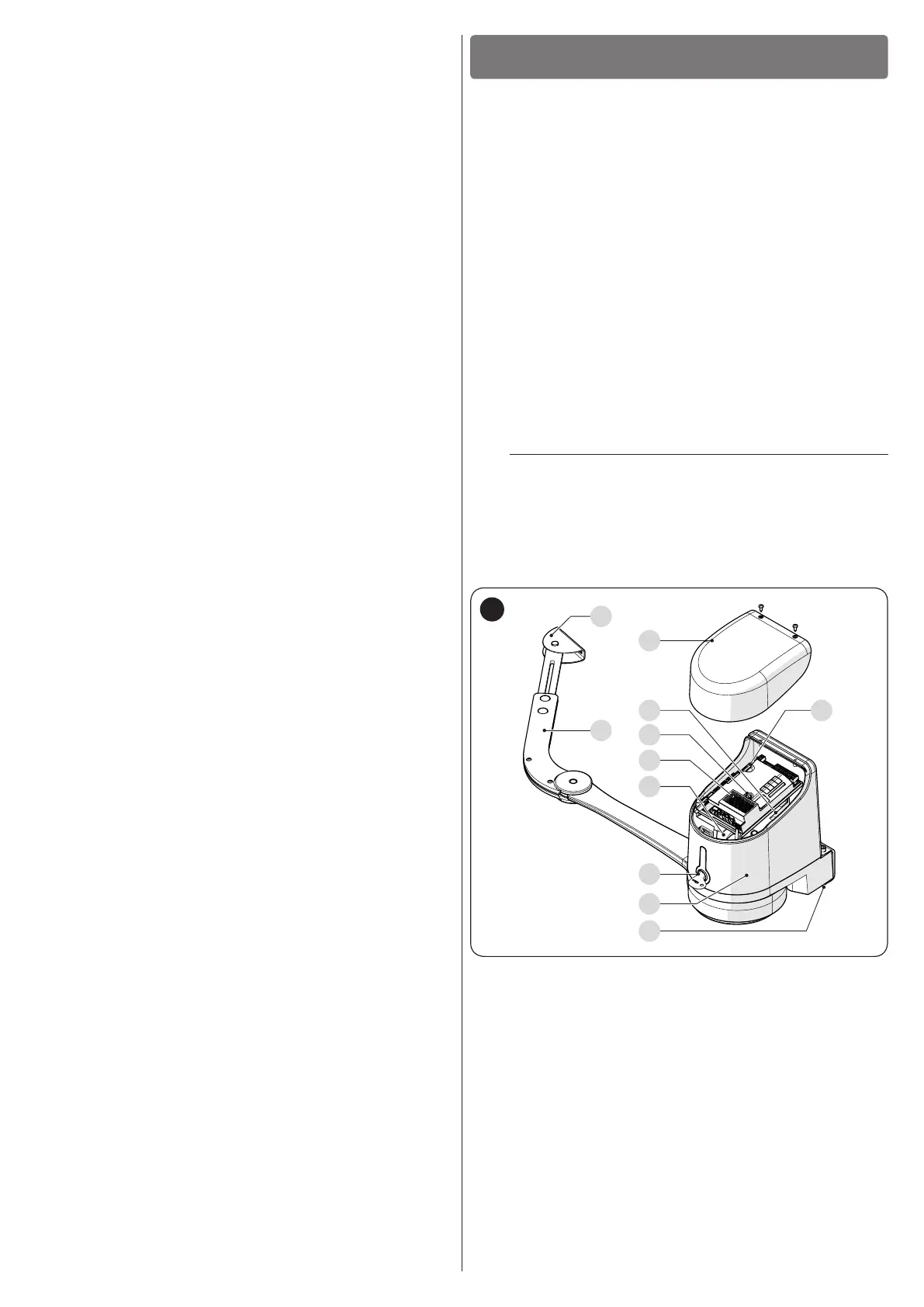

“Figure 1” shows the main parts making up the HK7024
gearmotor.
A
C
B
D
F
E
G
H
M
1
A Cover
B Back-up battery (accessory)
C Fuse
D Electronic control and command unit (present only on
HK7024 and HK7024HS)
E OXI receiver
F Power supply connector
G Locking/unlocking key
H Gearmotor
I Gearmotor xing bracket
L Arm xing bracket
M Arm
