ENGLISH – 31
9.4 CONNECTING THE EXTERNAL UNLOCKING
SYSTEM KIO
a
Kio must be connected to the gearmotor that drives
the leaf that starts moving rst (when the gate is
closed).

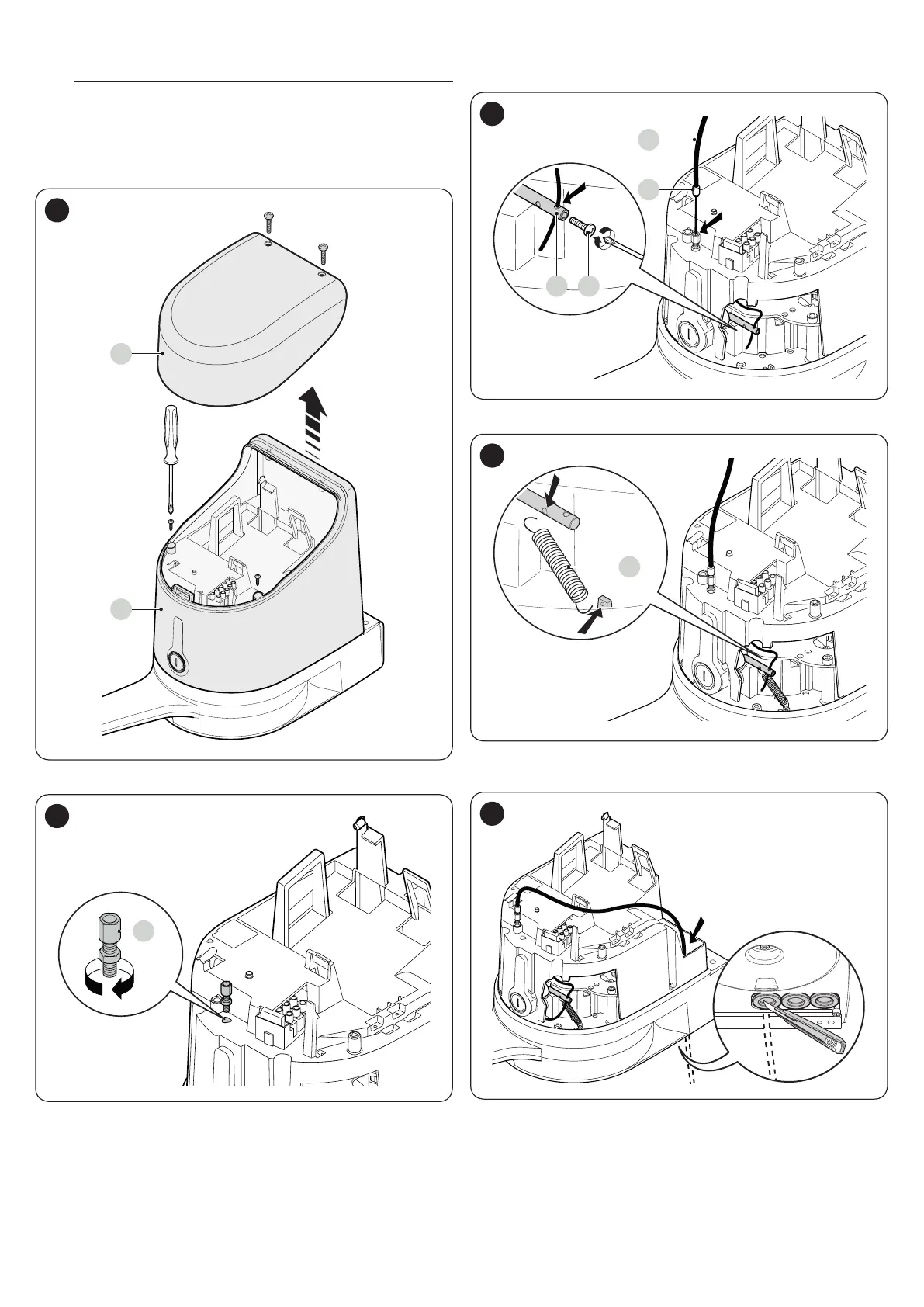

For the connection, proceed as follows:
1. remove the cover (A) and the plastic casing (B)
A
B
61
2. insert the pin (C) through the unlocking shaft hole
C
62
3. insert the steel cable (D) before the screw (C) and then
through the hole of pin (E)
4. lock the cable in place by tightening the pin (F)
FE
D
C
63
5. hook up the spring (G) by its two ends
G
64
6. thread the other end of the cable through the hole located
on the lower part of the gearmotor
65
7. connect the cable to Kio, by referring to the respective
instruction manual.
