32 – ENGLISH
9.5 CONNECTING THE OVIEW PROGRAMMER
The “Oview” programming unit can be connected to the control
unit.
This unit allows for rapidly and fully programming the functions,
adjusting the parameters, updating the control unit rmware,
running the diagnostics to detect any malfunctions and
performing routine maintenance.
The “Oview” allows for operating on the control unit at a
maximum distance of roughly 100 m. If several control units are
networked with each other in a “BusT4” network, by connecting
the “Oview” to one of these units, it is possible to view on the
display all the networked control units (up to a maximum 16
units).
The “Oview” unit can also be left connected to the control unit
during normal operation of the automation, so that the user can
send commands using a specic menu.
a
Before connecting the IBT4N interface, it is
necessary to disconnect the control unit from the
power supply.

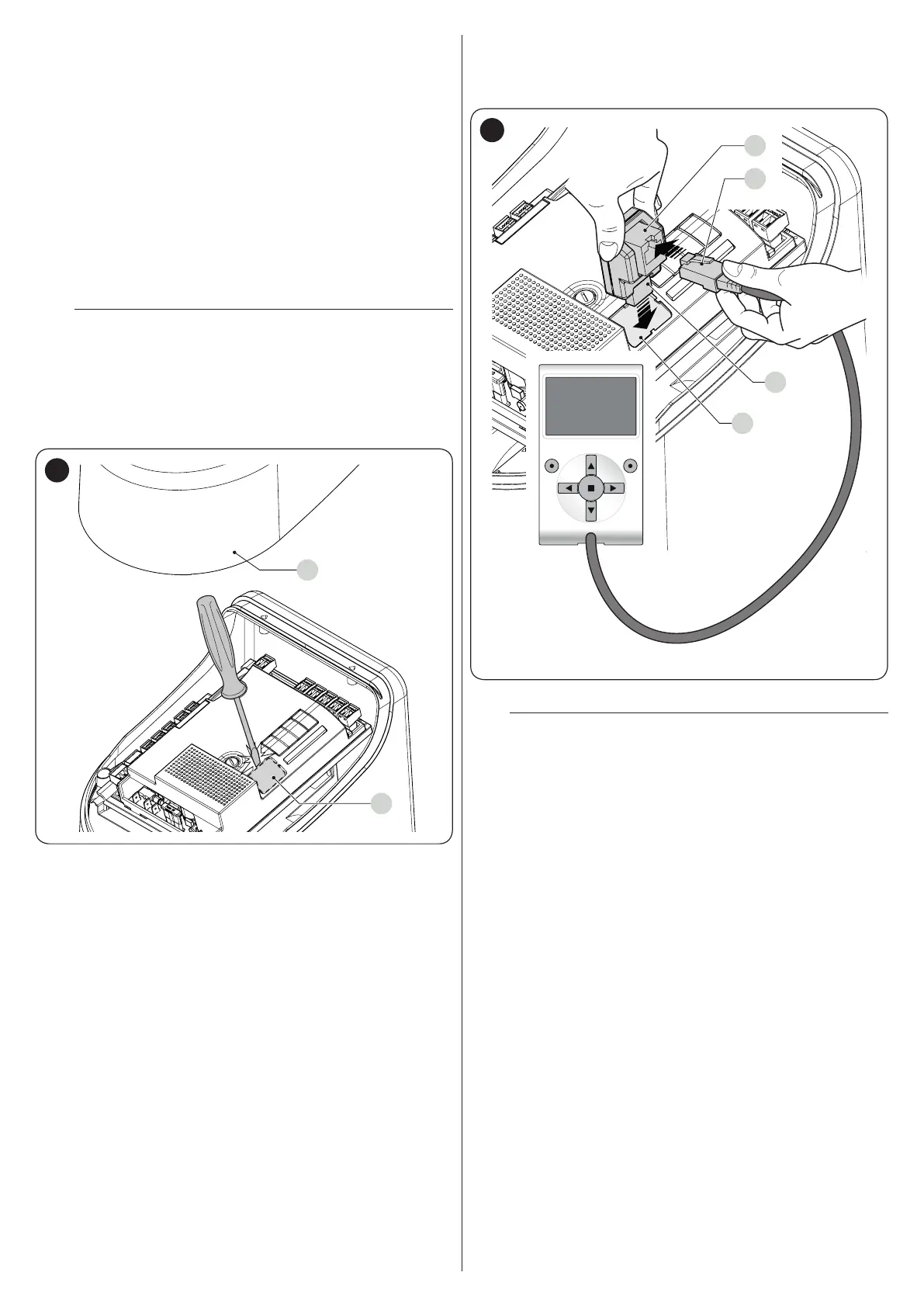

To install the interface:
1. remove the cover (A)
2. remove the plastic pre-cut element (B) and check that
there are no burrs
A
B
66
3. place the interface (C) in the appropriate slot (D) on the
control unit’s electronic board
4. insert the cable (E) in the appropriate slot (F) on the
interface.
C
D
F
E
67
At this stage, the control unit can be powered again.
l
For further information, consult the specic
manuals of the connected devices.
