ENGLISH – 9

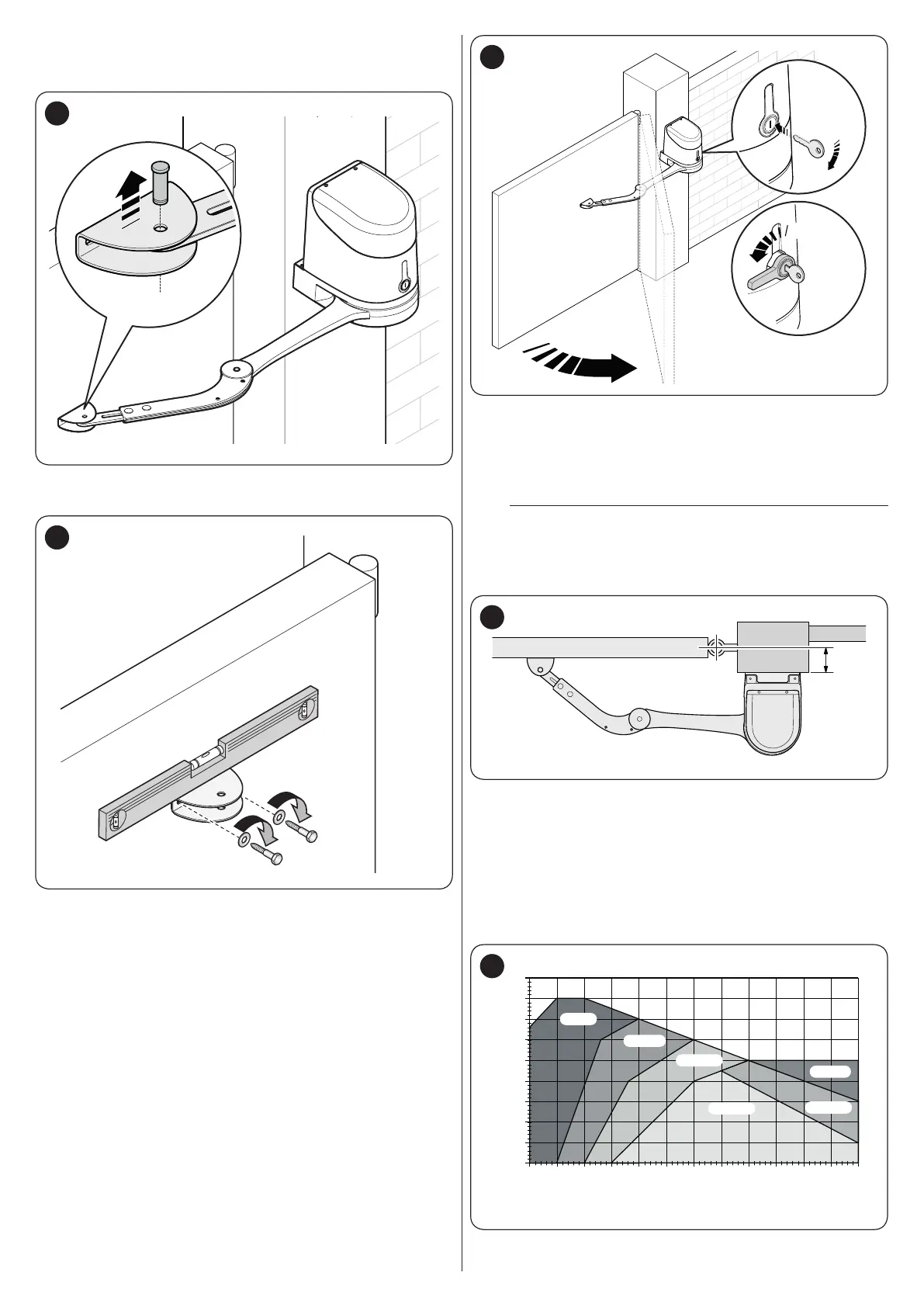

11. drill the leaf
12. separate the xing bracket from the curved arm by
removing the retaining ring and the relative pin
17
13. fasten the bracket to the gate leaf in the horizontal position,
using adequate screws (not supplied)
18
14. fasten the arm to the bracket again using the pin and
retaining ring just removed
15. before locking the gearmotor, adjust the limit switches (see
paragraph “Adjusting the mechanical limit switches“)
16. manually bring the gate leaf to roughly midway along its
path and lock the gearmotor as explained in the paragraph
“Manually unlocking and locking the gearmotor”. Then
manually move the gate leaf by a few centimetres in the
opening direction
2
3
90°
90°
19
17. if the gate to be automated has two leaves, repeat all the
operations described above to install the other gearmotor.
3.5.3 Installing the gearmotor with REDUCED-LENGTH
ARM
m
With this conguration, the maximum allowed
opening angle for the leaf is 90°.
To install HYKE:
1. measure the distance (B)
B
20
2. mark the resulting distance (B) on the graph and, from this
point, draw a horizontal line intersecting the area between
90° and 95°
3. in the points of intersection between the horizontal line
and the area, draw a few vertical lines to determine the
values that can be used for level (A); choose in this range
a value for level (A). For example: if (B) is 200 mm and the
desired angle is 95°, level (A) will be between 400 mm
and 450 mm
0
150 175 200 225 250 275 300 325 350 400375 425
50
100
150
200
250
300
350
400
90°-95°
95°-100°
100°-105°
105°-110°
95°-105°
90°-95°
21
