10 – ENGLISH

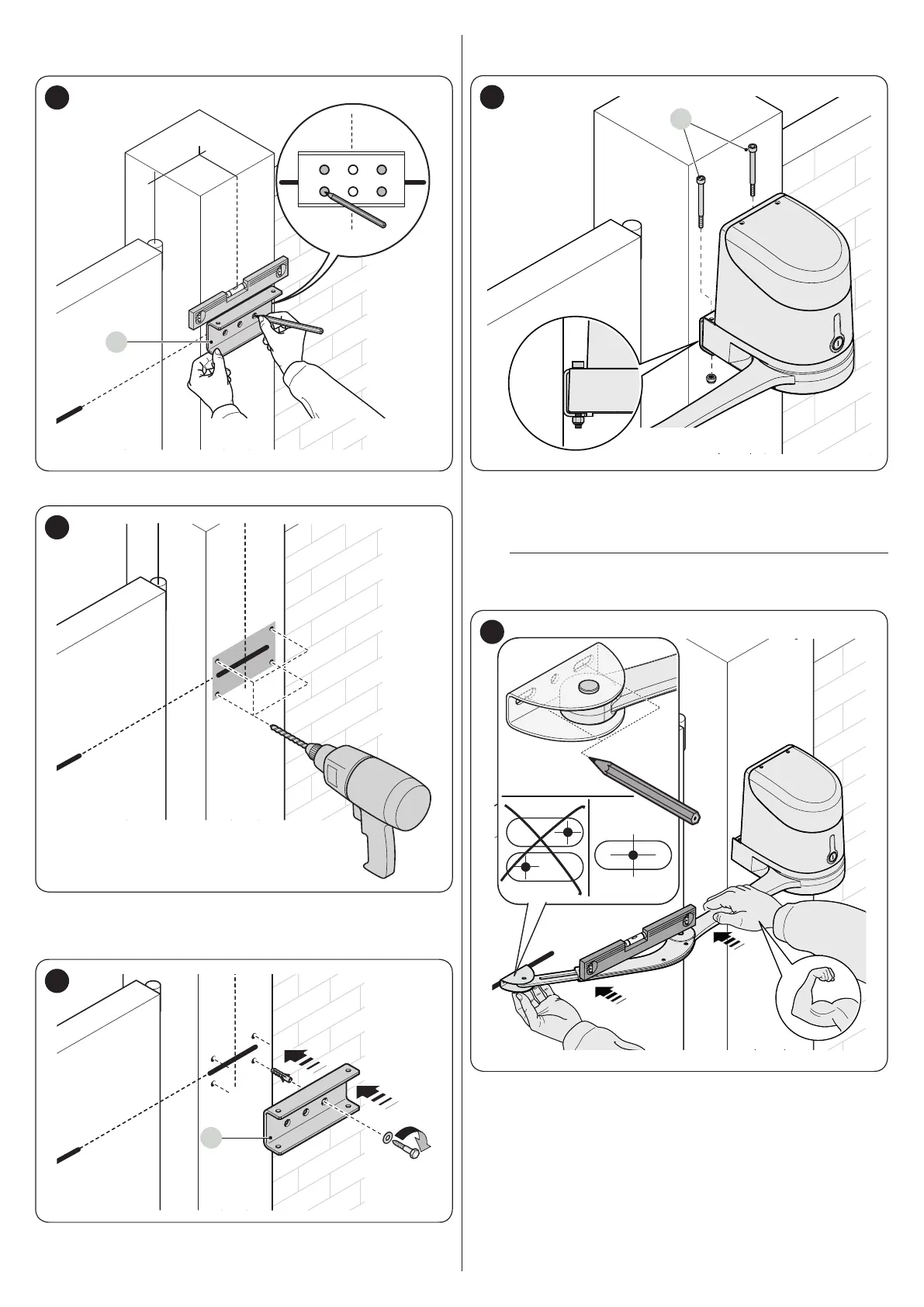

4. use the xing bracket (C), in the horizontal position, as a
template to determine the position of the four xing holes
A
C
22
5. drill the bracket in the marked positions
23
6. attach the xing bracket (C) of the gearmotor to the wall
using adequate wall plugs, screws and washers (not
supplied)
x 4
C
24
7. attach the gearmotor to the bracket using the two screws
(D) provided
D
25
8. unlock the gearmotor manually (see paragraph “Manually
unlocking and locking the gearmotor“)
9. draw the arm towards the leaf and place the xing bracket
on the latter
m
Push the curved arm against the leaf using your
hands, until the arm locks (maximum opening).
OK
OK
26
