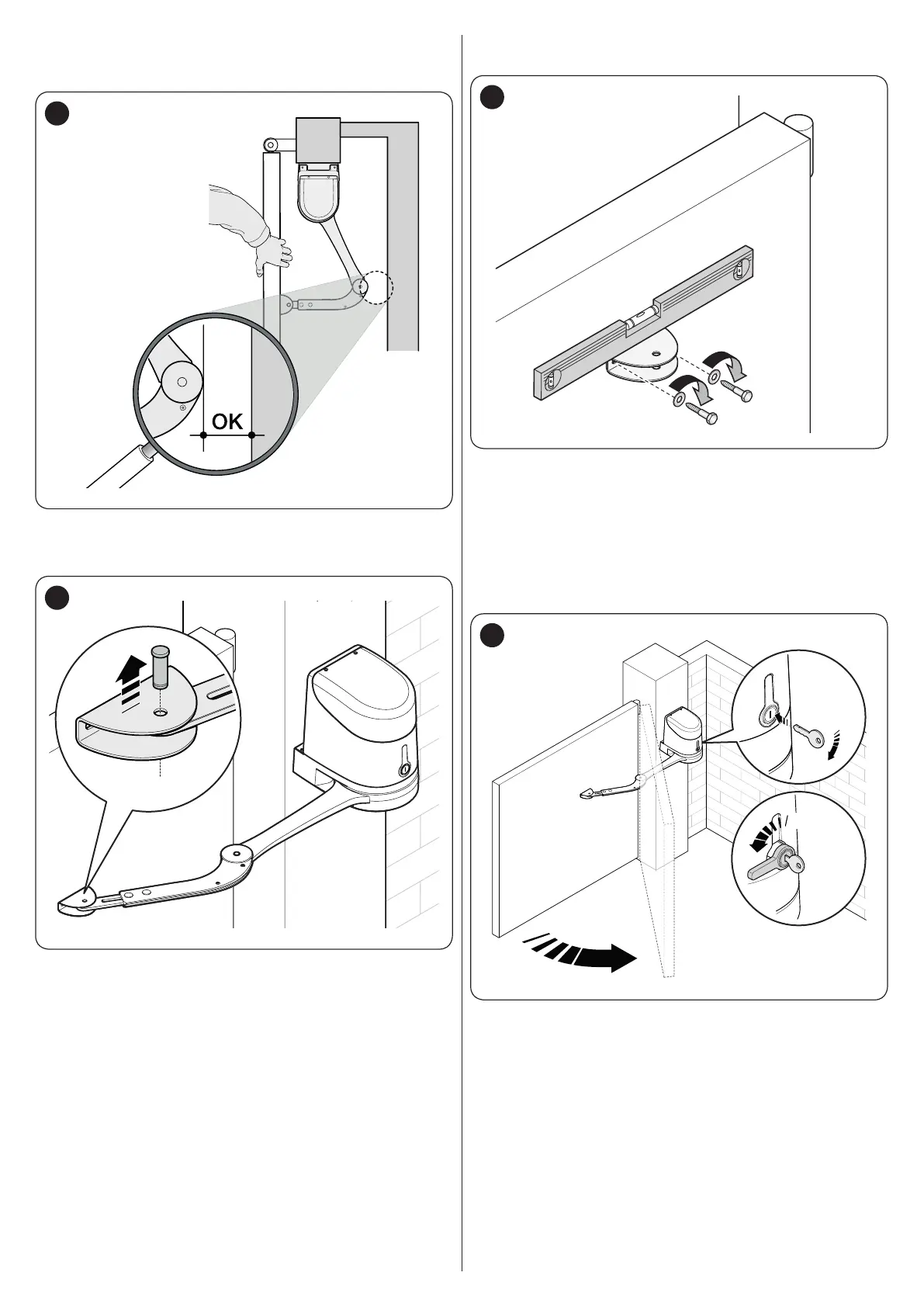

10. while keeping the bracket against the leaf with one hand,
move the leaf to the maximum opening position and check
that the arm does not collide with any obstacles
27
11. drill the leaf
12. separate the xing bracket from the curved arm by
removing the retaining ring and the relative pin
28
13. fasten the bracket to the gate leaf in the horizontal position,
using adequate screws (not supplied)
29
14. fasten the arm to the bracket again using the pin and
retaining ring just removed
15. before locking the gearmotor, adjust the limit switches (see
paragraph “Adjusting the mechanical limit switches“)
16. manually bring the gate leaf to roughly midway along its
path and lock the gearmotor as explained in the paragraph
“Manually unlocking and locking the gearmotor”. Then
manually move the gate leaf by a few centimetres in the
opening direction
3
2
3
90°
90°
~45°
30
17. if the gate to be automated has two leaves, repeat all the
operations described above to install the other gearmotor.
