30 – ENGLISH
9.3 CONNECTING AND INSTALLING THE BACK-
UP BATTERY
f
The electrical connection of the battery to the
control unit must be made only after completing
all the installation and programming stages, as the
battery is an emergency power supply.
f
Before installing a back-up battery, disconnect the
power supply to the control unit.

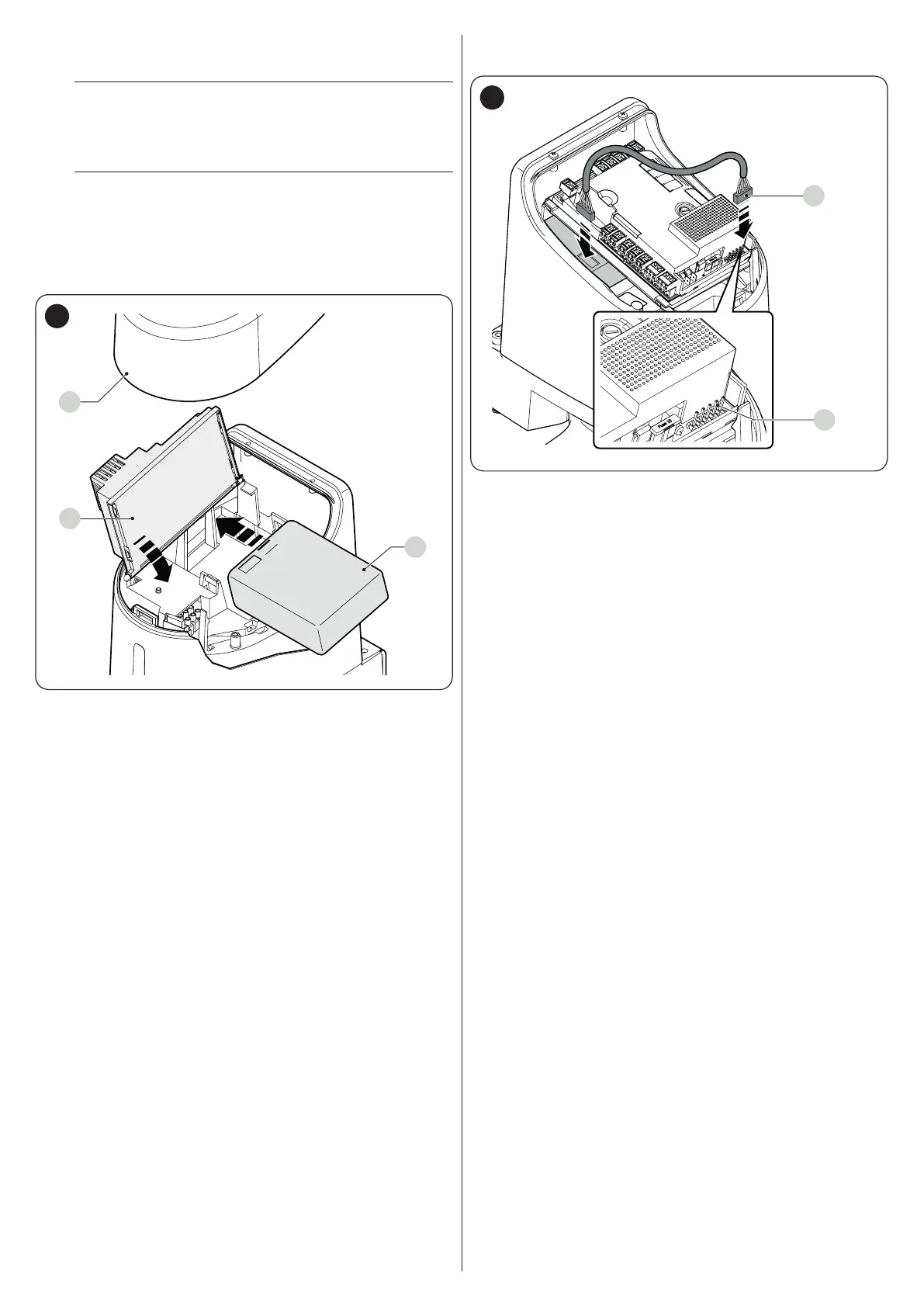

To install and connect the battery:
1. remove the cover (A)
2. lift the control unit (B) of the gearmotor
3. slide the battery (C) into its housing
B
C
A
59
4. insert the relative connector (E) in the housing (A) on the
control unit.
E
D
60
