ENGLISH –
33
9.6

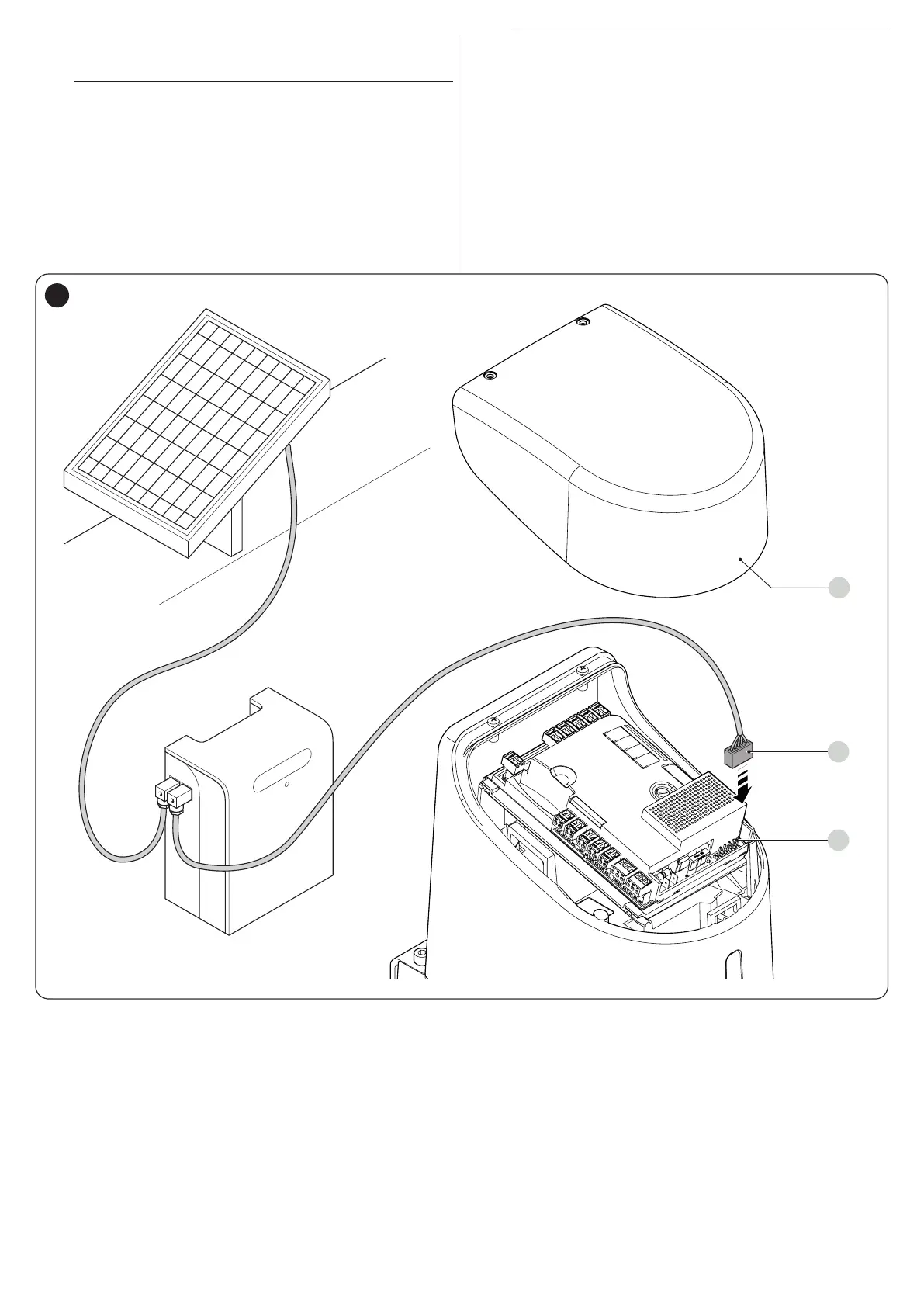

CONNECTING THE SOLEMYO SOLAR
ENERGY SYSTEM
f
When the automation is powered by the “Solemyo”
system, IT MUST NOT BE POWERED by the
electricity grid at the same time.
l
For information on the “Solemyo” system, consult
the relevant instruction manual.
To connect the “
Solemyo
” system:
1.
remove the cover (
A
)
2.
insert the relative connector (
C
) in the housing (
B
) on the
control unit.
C
B
A
68
32
34
Table of Contents
1 General Safety Warnings and Precautions
2
Table of Contents
2
General Warnings
2
Installation Warnings
3
2 Product Description and Intended Use
3
List of Constituent Parts
3
3 Installation
4
Pre-Installation Checks
4
Product Usage Limits
4
Product Durability
5
Product Identification and Overall Dimensions
5
Pre-Installation Works
6
Installing the Gearmotor
6
Determining the Length of the Gearmotor Arm
7
Installing the Gearmotor with FULL-LENGTH ARM
7
Installing the Gearmotor with REDUCED-LENGTH ARM
9
Adjusting the Mechanical Limit Switches
12
Manually Unlocking and Locking the Gearmotor
12
4 Electrical Connections
13
Preliminary Checks
13
Wiring Diagram and Description of Connections
15
Wiring Diagram
15
Description of Connections
15
5 Final Checks and Start-Up
16
Power Supply Connection
16
Device Learning
16
Motor Selector
17
Learning of the Mechanical Stop Positions
17
Learning in Automatic Mode
18
Learning in Manual Mode
18
Learning in Mixed Mode
19
Checking the Gate Movement
19
Connecting Other Devices to the Control Unit
20
6 Testing and Commissioning
20
Testing
20
Commissioning
20
7 Programming
21
Level 1 Programming (ON-OFF)
21
Level 1 Programming Procedure
21
Using the Programming Buttons
21
Level 2 Programming (Adjustable Parameters)
22
Level 2 Programming Procedure
22
Special Functions
24
Move Anyway" Function
24
Maintenance Notice" Function
24
Memory Deletion
24
8 Troubleshooting Guide
25
Signalling through Warning Light
25
Signals on the Control Unit
26
Anomaly Log
27
Adding or Removing Devices
27
Bluebus
27
STOP Input
28
Photocells
28
Learning of Other Devices
28
Connecting an SM-Type Radio Receiver
29
Connecting and Installing the Back-Up Battery
30
Connecting the External Unlocking System Kio
31
Connecting the Oview Programmer
32
Connecting the Solemyo Solar Energy System
33
9 Product Maintenance
34
10 Product Disposal
34
11 Technical Specifications
35
12 Conformity
37
Instructions and Warnings for the User
39
