8 – ENGLISH

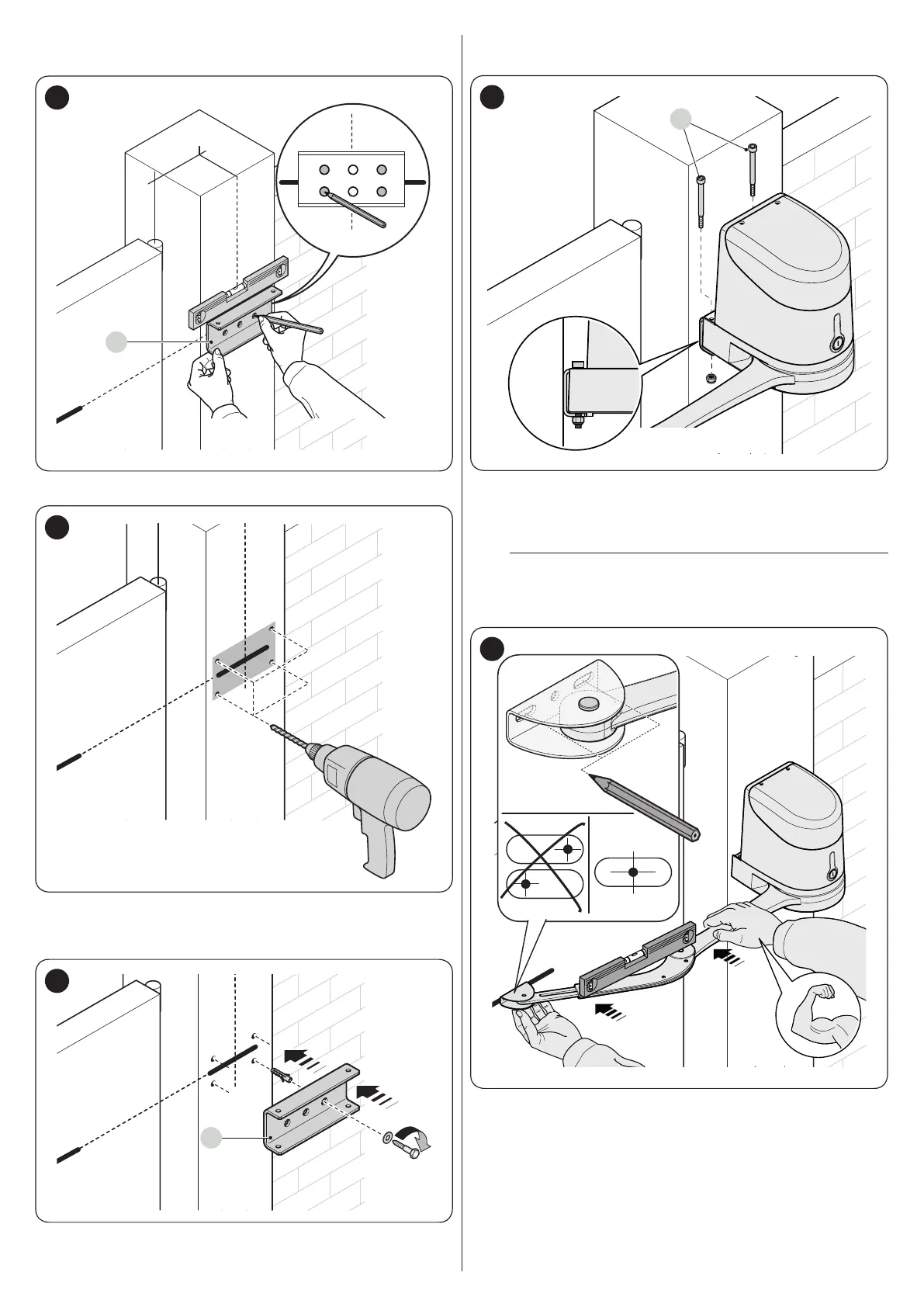

5. use the xing bracket (C), in the horizontal position, as a
template to determine the position of the four xing holes
A
C
12
6. drill the bracket in the marked positions
13
7. attach the xing bracket (C) of the gearmotor to the wall
using adequate wall plugs, screws and washers (not
supplied)
x 4
C
14
8. attach the gearmotor to the bracket using the two screws
(D) provided
D
15
9. unlock the gearmotor manually (see paragraph “Manually
unlocking and locking the gearmotor“)
10. decide where to attach the bracket to the gate leaf, by
extending the gearmotor arms as far as possible
m
It is important to position the bracket at the farthest
point with respect to the position of the gearmotor.
Make sure that the arm stops at its limit switch.
OK
OK
16
