40 – ENGLISH
&
&

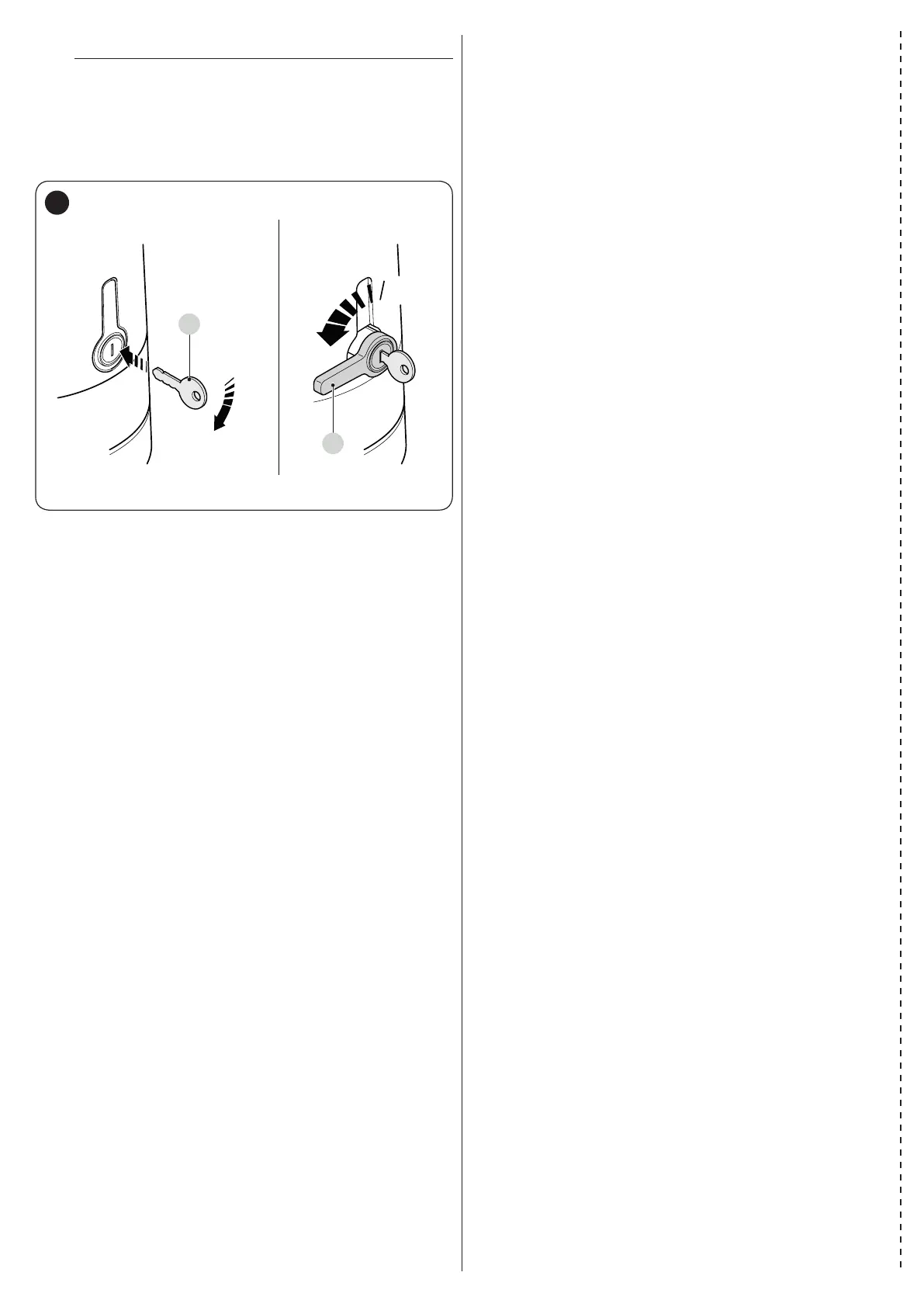

Unlocking and manual movement
a
The gate can only be unlocked once the leaf has
come to a standstill.
To unlock the device:
1. insert the key (A) and turn it clockwise by 90°
2. turn the lever (B) by 90° anti-clockwise which, by effect of
a spring, has come out of its housing
90°
90°
A
B
69
3. the gate leaf can now be moved manually to the desired
position.
To lock the device:
1. turn the lever (B) by 90° until it lies in the vertical position
2. push the lever until it slots into its housing
3. turn the key (A) by 90° anti-clockwise
4. remove the key.
