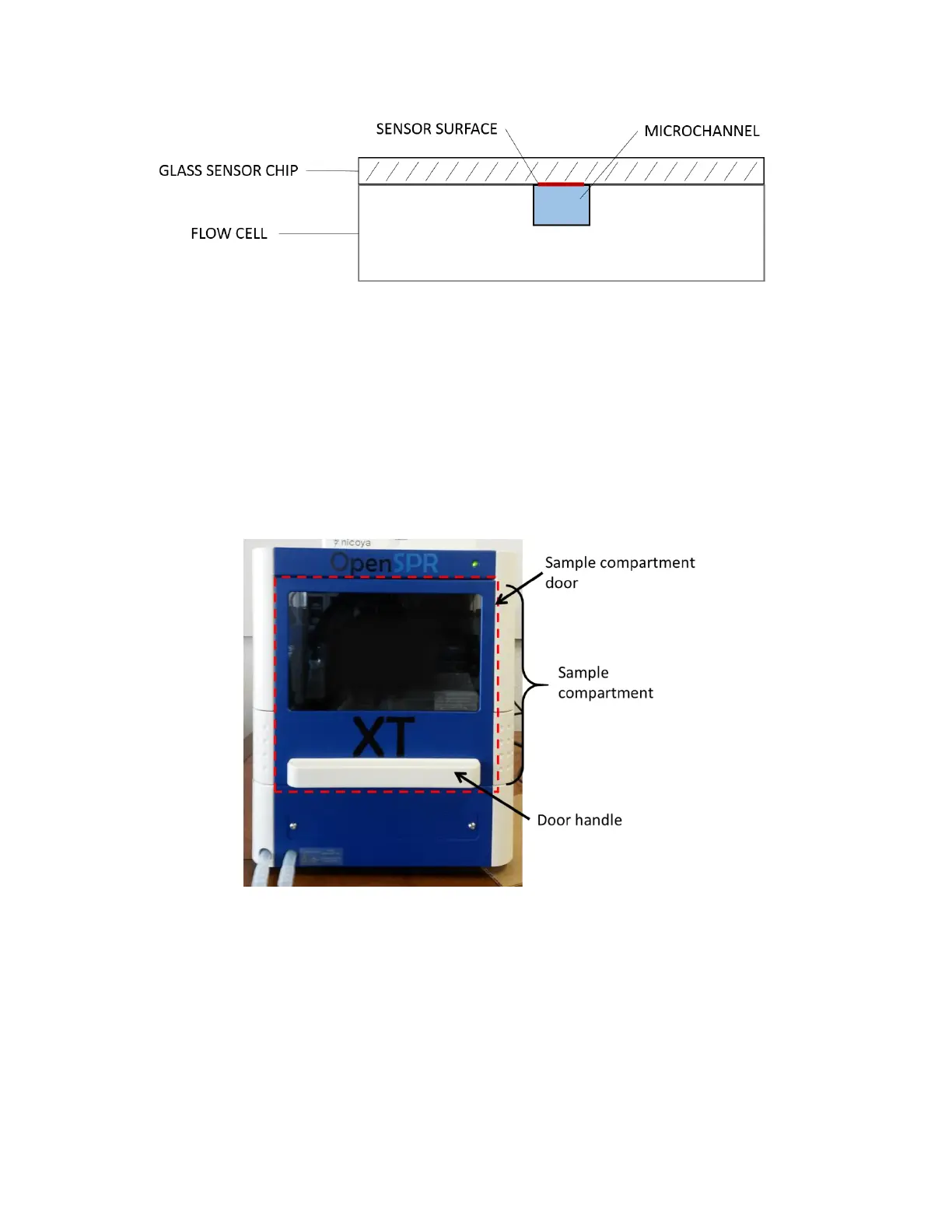

Figure 4.6 - Cross-section (top-down) of microchannel formed between Flow Cell and Sensor Chip.
4.1.2 XT Autosampler Unit
The XT autosampler comprises the sample compartment, which can be accessed through the
sample compartment door [Figure 4.7]. Instructions for opening the sample compartment door
are given in Figure 4.8. To unpack the unit, or for easier access for servicing, the sample
compartment cover can be removed as well by following the instructions in Figure 4.9.
Figure 4.7 External components of the XT autosampler.
