Total Station NPL-322 Instruction Manual 21
Preparation 2
Setting Up the Prism Reflector

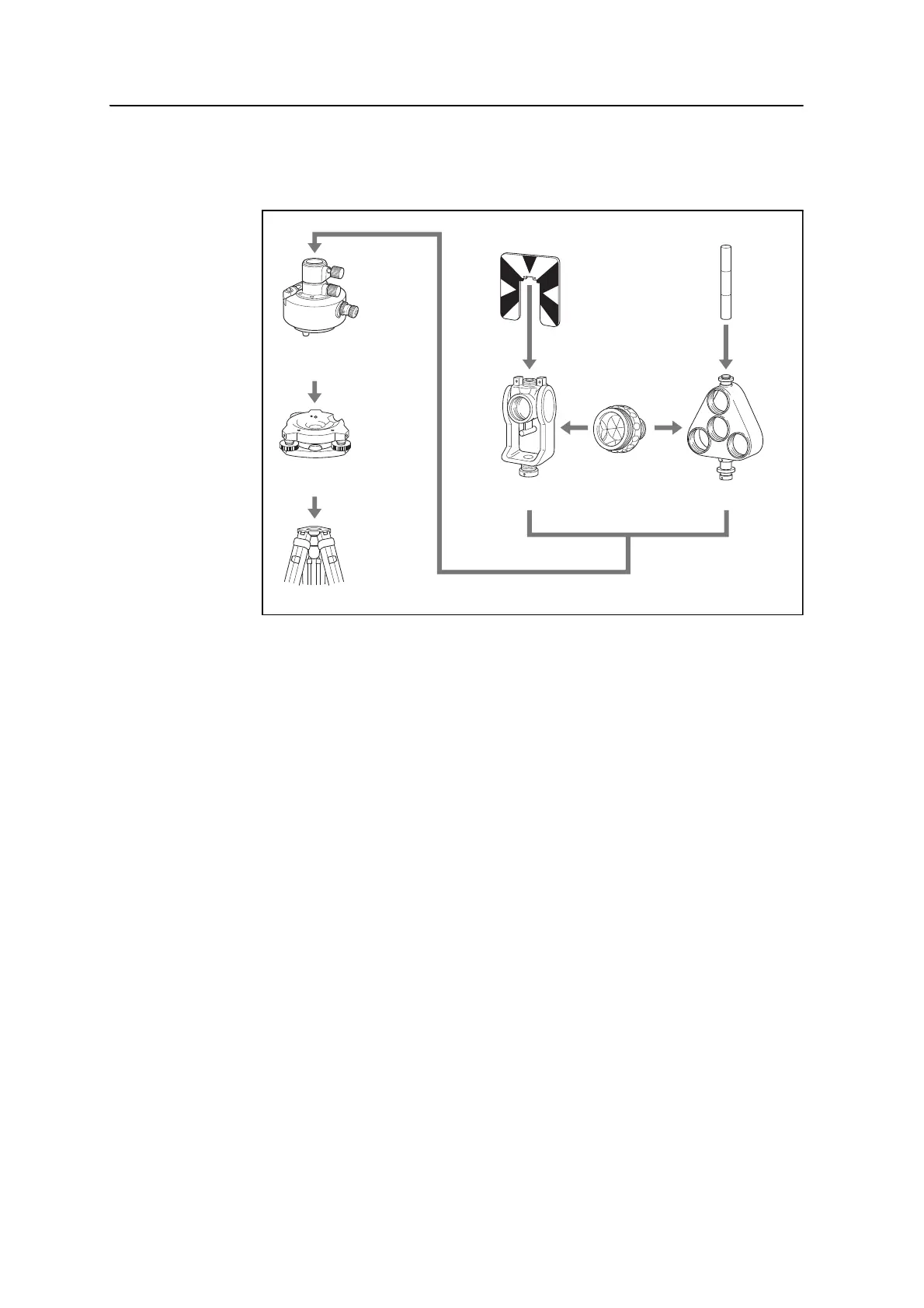

1. Assemble the prism reflector as shown below.
2. Adjust the height of the tribrach adaptor (see page 22).
3. If necessary, change the direction of the prism (see page 22).
4. Set the prism constant (see page 22).
5. If you are using a single prism holder, set the position of the target plate (see
page 23).
Detailed instructions for Step 2 through Step 5 are provided on the following pages.
Tribrach
Tripod
Target plate for single prism
Tiltable single
prism holder
Prism C
Tar g et pole
Triple prism holder
W30/W30b
Tribrach
adapter 15
