Maintenance
5-10
Part 1089210A04
E 2010 Nordson Corporation
Internal Blower Lamphead Cover Removal (contd)
6. See Figure 5-11. Lift the bottom cover straight up and then push the
unicable connector into the cover until it clears the cover housing.

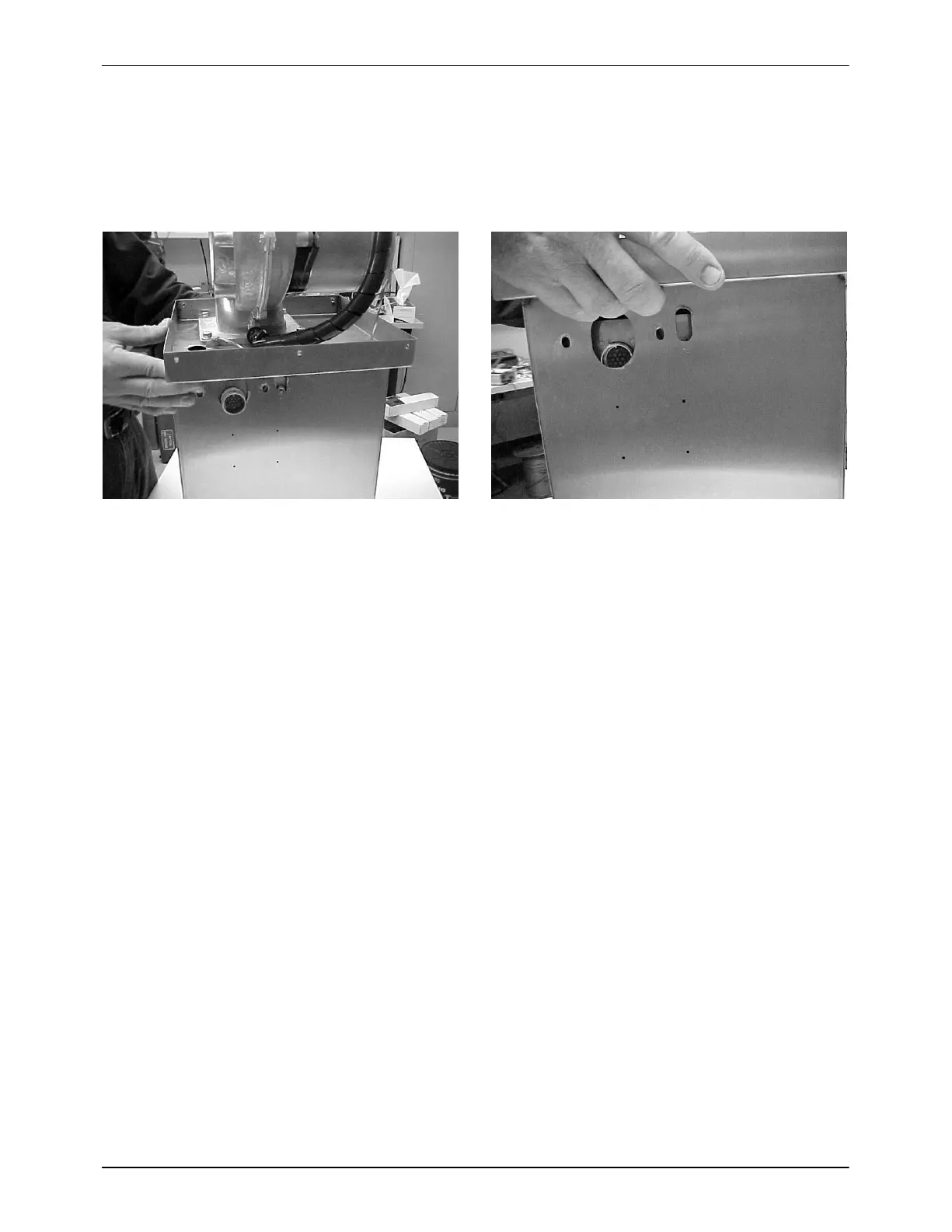

Lifting Bottom Cover
Unicable Connector Clearing Housing
Figure 5-11 Removing Cover
7. Pull the cover the rest of the way up and off the lamphead and set aside.
Internal Blower Lamphead Cover Replacement
1. Replace the bottom lamphead cover by sliding it down over the
lamphead until the unicable connector drops into the slot and the 8
holes at the bottom of the cover line up.
2. Replace the 8 screws at the base of the lamphead (4 front and 4 rear).
3. Reconnect the blower plug and replace the screw next to the plug.
4. Replace the top blower cover and secure with 6 screws (3 front and 3
rear).
5. Reconnect the unicable from the power supply.
