Reflectors
Two types of reflectors are available for the lamphead: focus and flood.
S The focus reflectors are available in 2.1 and 3.1 versions.
S The flood reflectors produce a wider band of light.
The reflectors use different retaining brackets to secure them in place in the

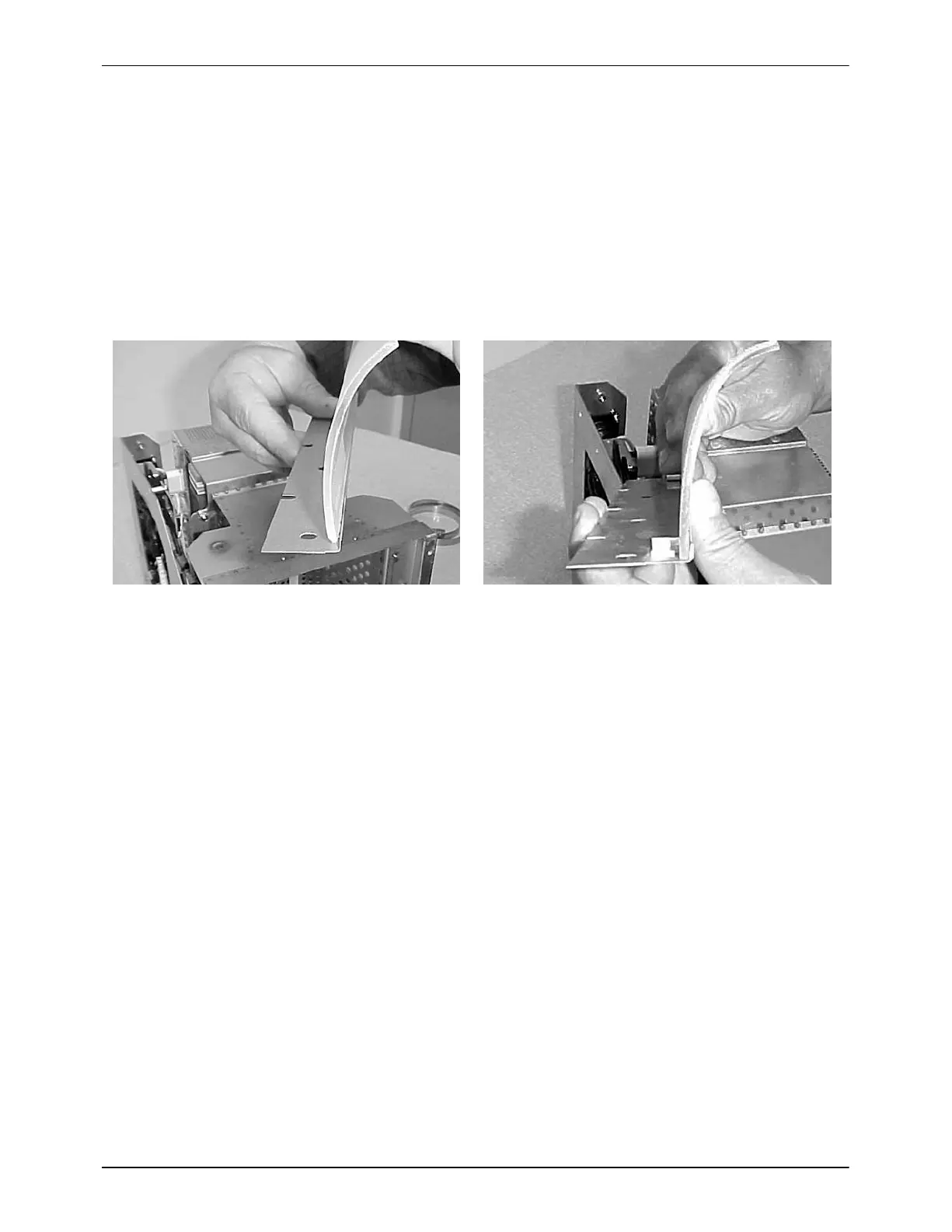

lamphead. Figure 2-2 illustrates the curve in each reflector and the
differences in their retaining brackets.
Focus Reflector and Bracket Flood Reflector and Bracket
Figure 2-2 Reflector Types
