Maintenance
5-9
Part 1089210A04
E 2010 Nordson Corporation
Internal Blower Lamphead Cover Removal
1. Disconnect the unicable from the lamphead.
2. See Figure 5-9. Remove the top blower cover by removing the 6 screws
(3 front and 3 rear) and set aside.
3. See Figure 5-9. Disconnect 2 screws on sides of unicable connector.

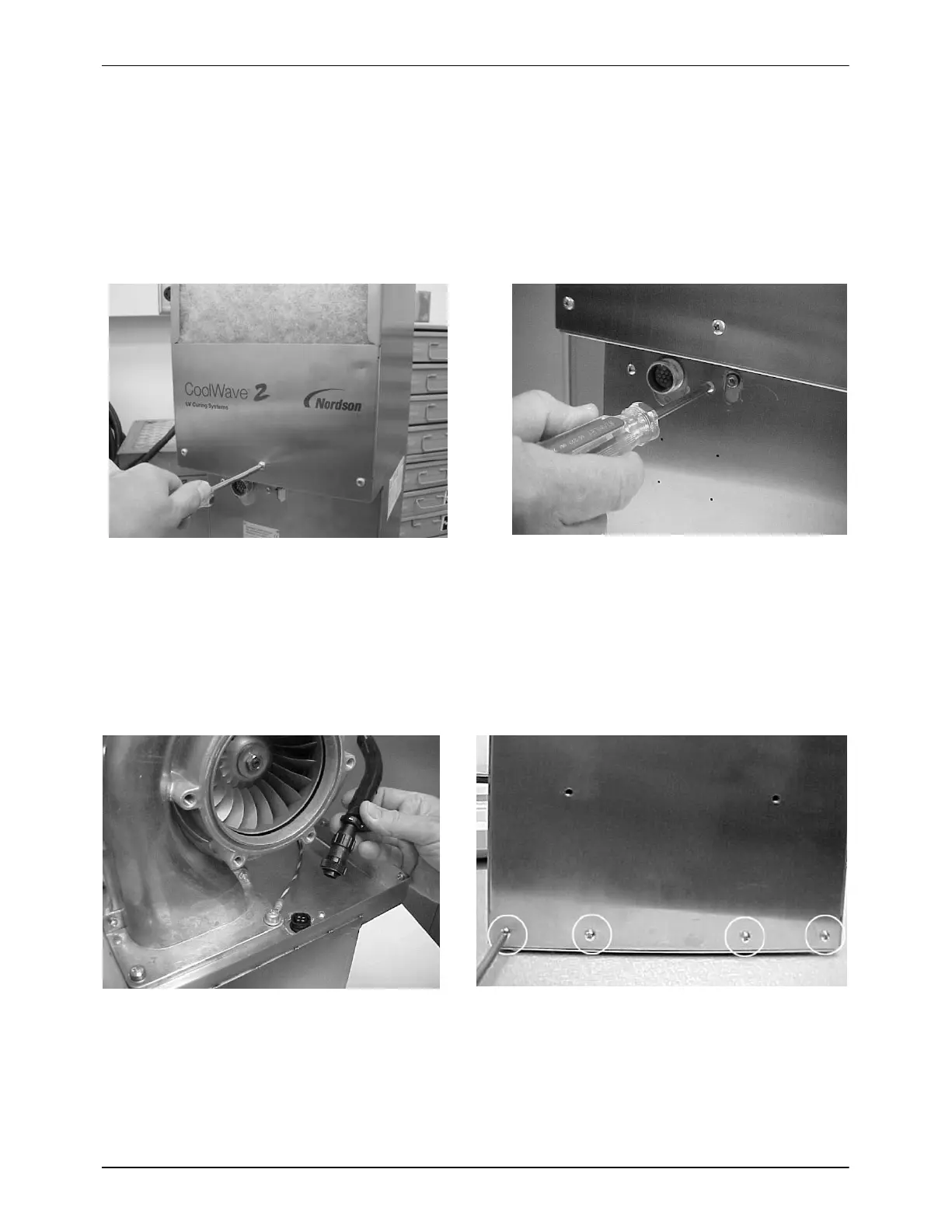

Removing Screws from Top Cover
Removing Screws By Unicable Connector
Figure 5-9 Removing Top Blower Cover
4. See Figure 5-10. Disconnect the blower plug and remove the screw
next to the plug.
5. See Figure 5-10. Remove the 8 screws at the base of the lamphead (4
front and four rear).
Removing Blower Plug
Removing 8 Screws − 4 Front and 4 Rear
Figure 5-10 Removing Blower Plug and Screws
To Next Page
