5.36 GETXFAVG / GETXFBURST
Returns the “Beam to XYZ” transfer matrix for the current setup. If the number of beams are 1 or 2 only
ROWS and COLS are returned.
Argument
Description
ROWS
Number of Rows.
COLS
Number of Columns.
M11
M12
M13
M14
M21
M22
M23
M24
M31
M32
M33
M34
M41
M42
M43
M44

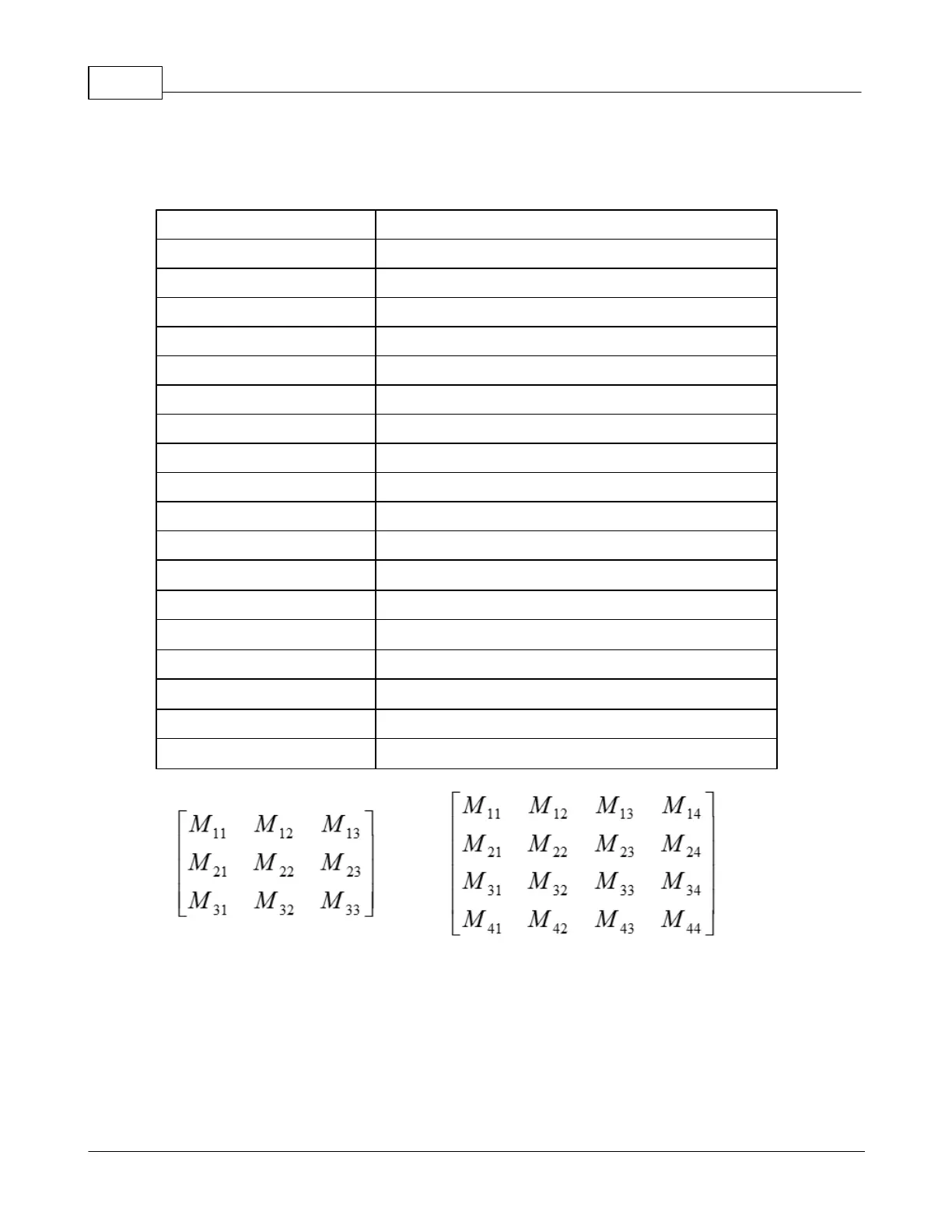

Figure: Matrix definitions
Examples:
GETXFBURST,ROWS=4,COLS=4,M11=1.183,M12=0.000,M13=-1.183,M14=0.000,
M21=0.000,M22=1.183,M23=0.000,M24=-1.183,M31=0.552,M32=0.000,
M33=0.552,M34=0.000,M41=0.000,M42=0.552,M43=0.000,M44=0.552
GETXFAVG,ROWS=3,COLS=3,M11=1.183,M12=0.000,M13=-1.183,M21=1.183,
M22=-2.366,M23=1.183,M31=0.552,M32=0.000,M33=0.552
