Nortel 7400 - Multiservice Switch 7460 Installation Task Flow

58 Chapter 5 Multiservice Switch 7460 installation
NN10600-175 6.1S2
• The completed installation of all hardware inside the shelf assembly
should be similar to the parts shown in the figure
“Processor cards
installed in a Multiservice Switch 7460” (page 58).
Figure 9

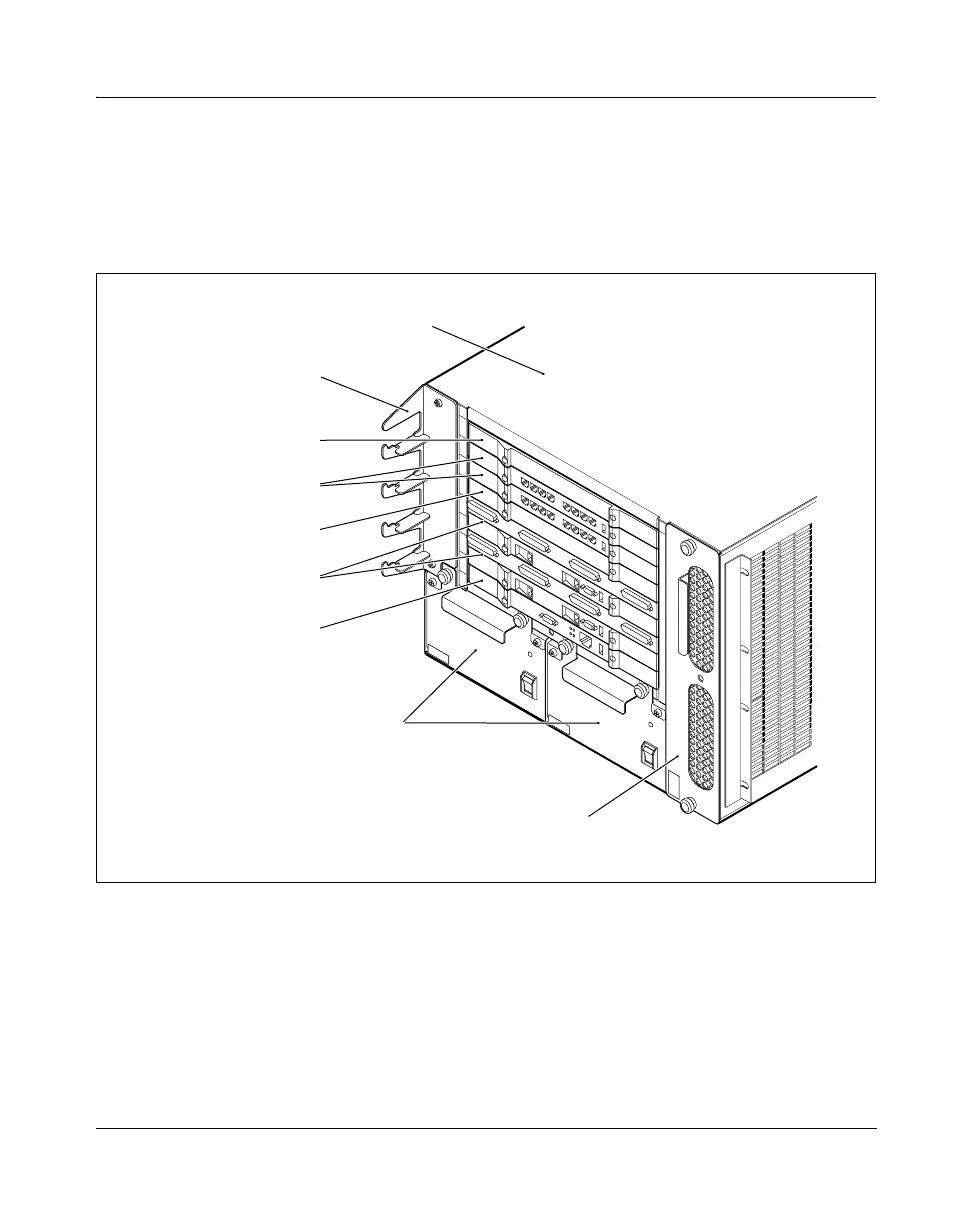

Processor cards installed in a Multiservice Switch 7460
Multiservice Switch 7460 installation task flow
This task flow shows you the sequence of procedures to perform to install a
Nortel Networks Multiservice Switch
7460. To link to any procedure, go to
“Task flow navigation” (page 61).
Cable management
bracket
Shelf assembly
MSS 3496 001 AA2
Filler NTBP23
Power supplies
CP NTNQ01
(slot 0)
Cooling unit
FP NTNQ73
Filler NTBP23
FP NTNQ92
