9RLFH $ODUP 6\VWHP
Installing Audio Amplifiers (AA-30/AA-100/AA-120)
4-12 AFP-300/AFP-400 Installation PN 50253:C1 05/22/97
,QVWDOOLQJ DQ$$$$
2YHUYLHZ
The AA-100/AA-120 mounts directly to the cabinet backbox. In addition to mounting,
do the following:
1. Connect primary (AC) and secondary (24 VDC battery) power source to each
audio amplifier.
2. Provide an external device for charging the batteries (such as an MPS-400).
0RXQWLQJ DQ $$
$$
AA-100/AA-120 audio amplifiers mount directly to the backbox. To do so, follow the
steps in Table 4-9:

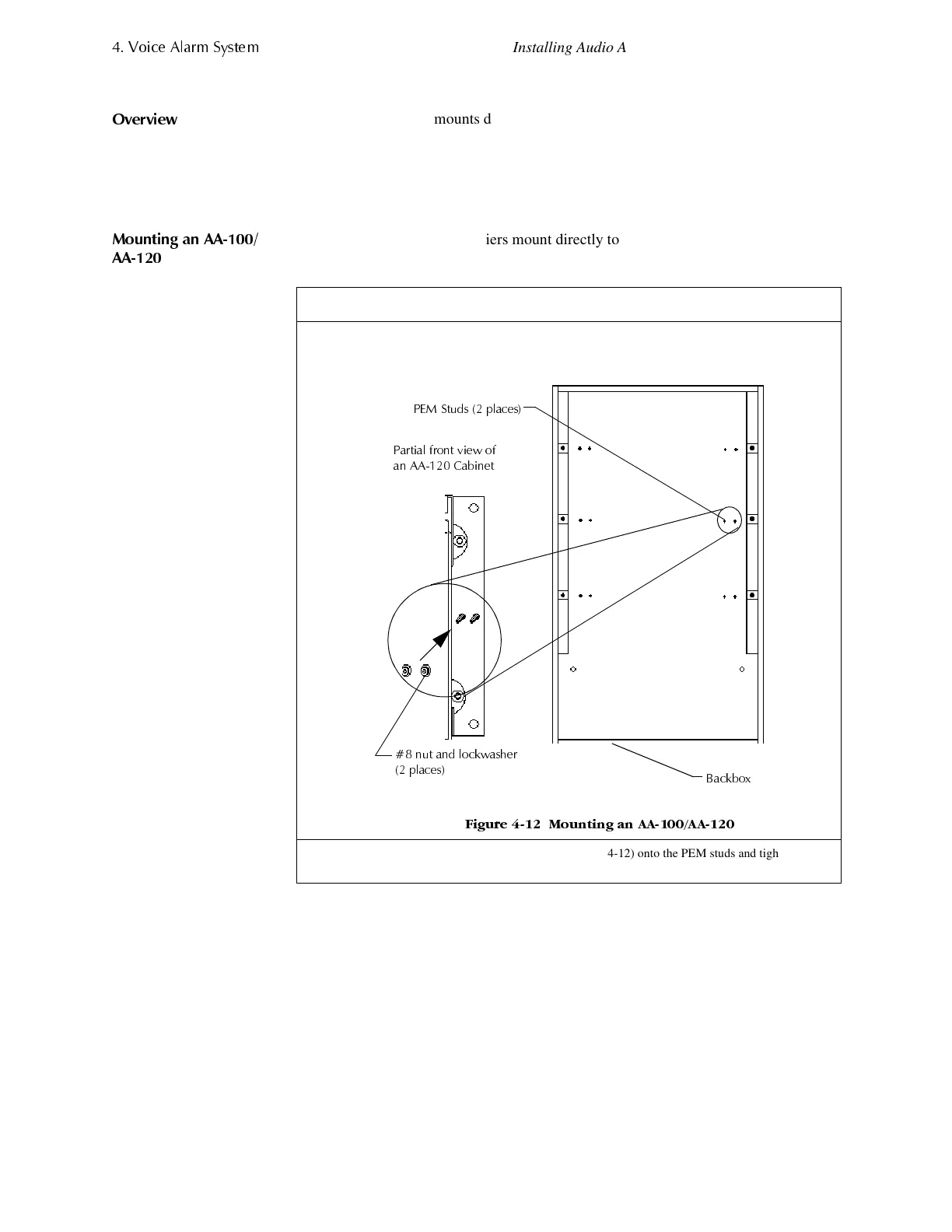

Table 4-9 Mounting an AA-100/AA-120
Step Action
1 Mount the AA-100/AA-120 onto the PEM studs on the cabinet backbox (in the same way as
the CHS-4 and CHS-4L chassis) as shown in Figure 4-12
:
)LJXUH 0RXQWLQJ DQ $$$$
2 Install the two #8 nuts and lockwashers (Figure 4-12) onto the PEM studs and tighten until
secure.
3DUWLDO IURQ W YLHZ RI
DQ $$ &DELQHW
3(0 6WXGV SODFHV
QXW DQG ORFNZDVKHU
SODFHV
%DFNER[
