Cabinet Hardware
6\VWHP 2YHUYLHZ
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 1-23
&$%$$&DELQHWV
&$%$$ 2YHUYLHZ
The CAB-400AA is a backbox and door that can contain a small AFP-300/AFP-400
system. (A small system supports up to twelve NACs and consists of a CPU and one
option module, such as an ICM-4/ICE-4.) Modules mount to rails in the CAB-400AA,
eliminating the need for optional chassis assemblies. Mounting methods include
surface-mounting or semi-flush mounting on a wall between 16-inch-on-center studs.
Table 1-13 lists the components included in the CAB-400AA:
Table 1-13 CAB-400AA Components and Options
&$%$$ /LPLWDWLRQV
• Limited power supply capacity (one AVPS-24 expander).
• The backbox can hold 12 amp-hour batteries only.
• Maximum of one module in addition to the CPU.
• No voice evacuation capability.
&$%$$ 'LPHQVLRQV

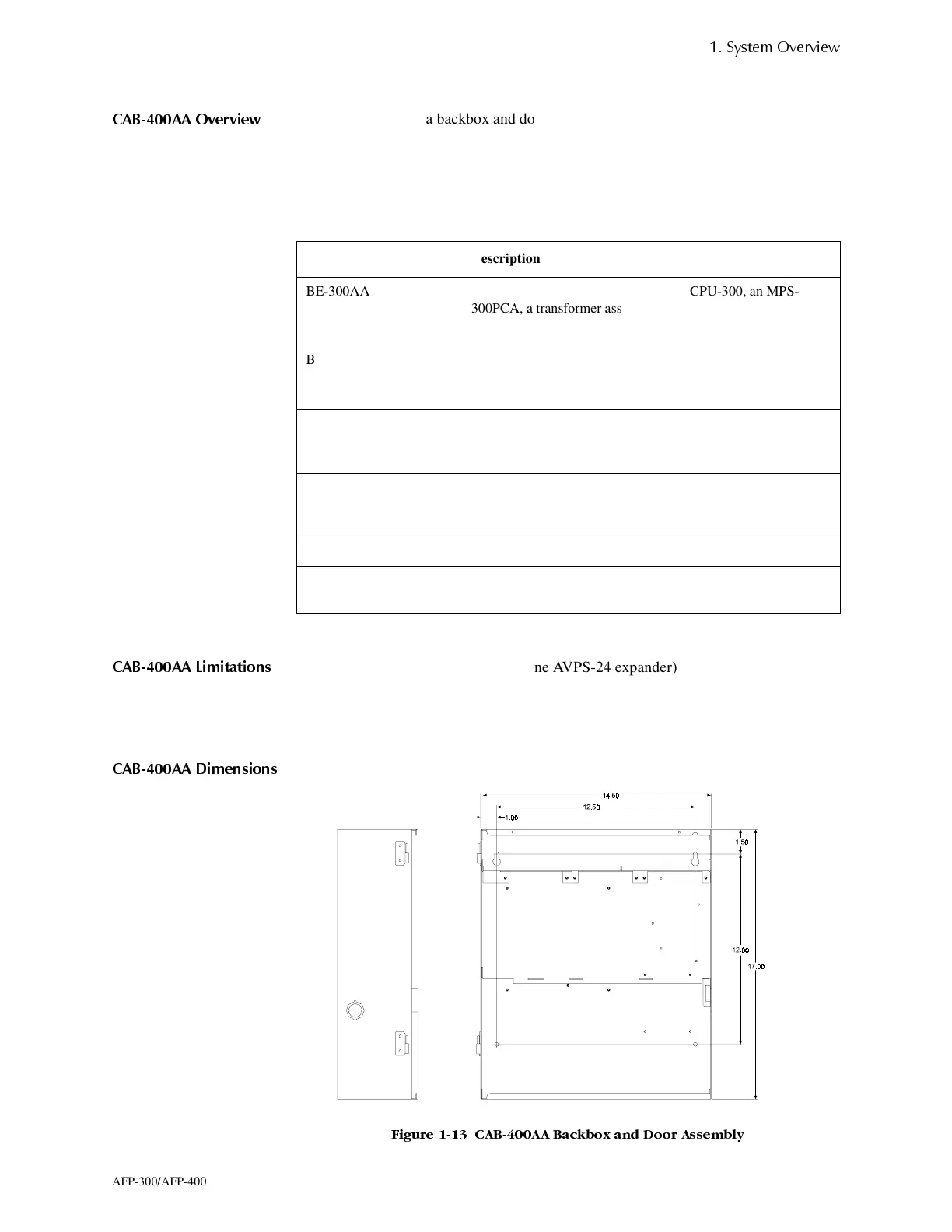

Figure 1-13 shows the CAB-400AA dimensions:
)LJXUH &$%$$ %DFNER[ DQG 'RRU $VVHPEO\
Component Description
BE-300AA
BE-400AA
BE-300AA
A package that includes a CPU-300, an MPS-
300PCA, a transformer assembly, and a two-position CPU-400
ribbon cable.
BE-400AA
A package that includes a CPU-400, an MPS-
400PCA, a transformer assembly, and a two-position CPU-400
ribbon cable.
CAB-300AA and
CAB-400AA (includes
DP-400AA)
A backbox (14.5" wide by 17" tall by 5" deep) and door (14.57"
wide by 17.25" tall by 1.5 " deep).
DP-400AA An Inner Dress Panel for covering the backbox area surrounding
the modules. The DP-400AA is required for Canadian
installations.
BM-1 Blank module for covering an unused panel or module.
TR-500 Trim ring that provides for semi-flush mounting of the
CAB-400AA cabinet
